TEST REPORT

3-Phase Input Valley Switching Flyback With Two Outputs Reference Design

Description

This reference design uses the UCC28742 flyback controller to generate two outputs (23 V at 1.0 A, 5.0 V at 0.15 A) from a 3-phase input. The UCC28742 uses an optical coupler to regulate the output and to improve transient response. The valley-switching technique reduces switching losses and keeps the efficiency high.

Features

  • Resonant-ring valley-switching operation
  • Dual outputs: 23 V at 1.0 A and 5.0 V at 0.15 A
  • 3-phase AC input voltage: 332 VAC–459 VAC
  • Output overvoltage and overcurrent protection
  • Completely tested design with available design files and test report

Applications

  • Residential water heater and heating system

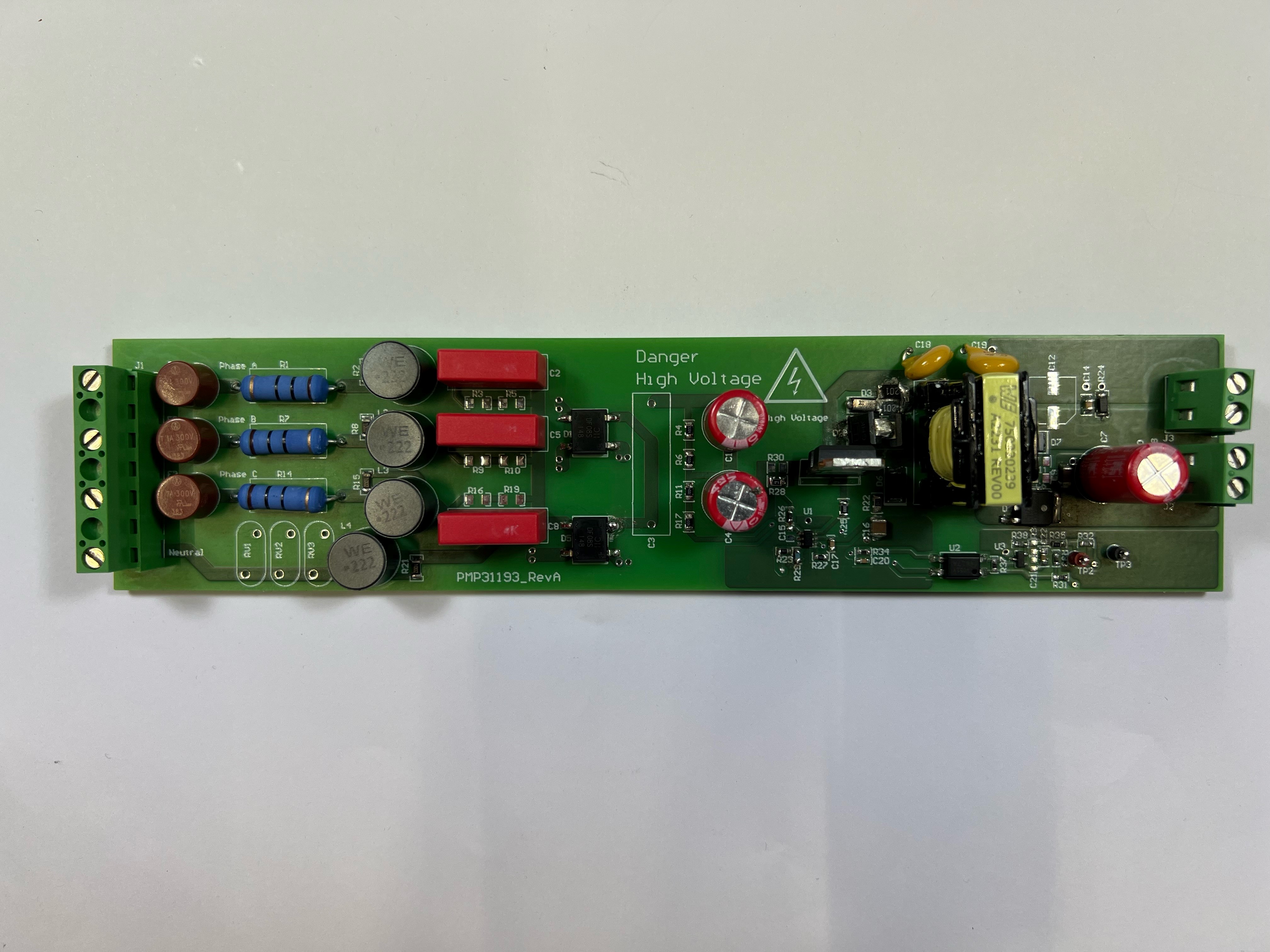

GUID-20221220-SS0I-WTQ7-5QJC-3CFNHQWVG06C-low.jpgTop Photo
GUID-20221220-SS0I-2C3R-HBFG-1XVDCMTCMQN6-low.jpgTop Photo 2

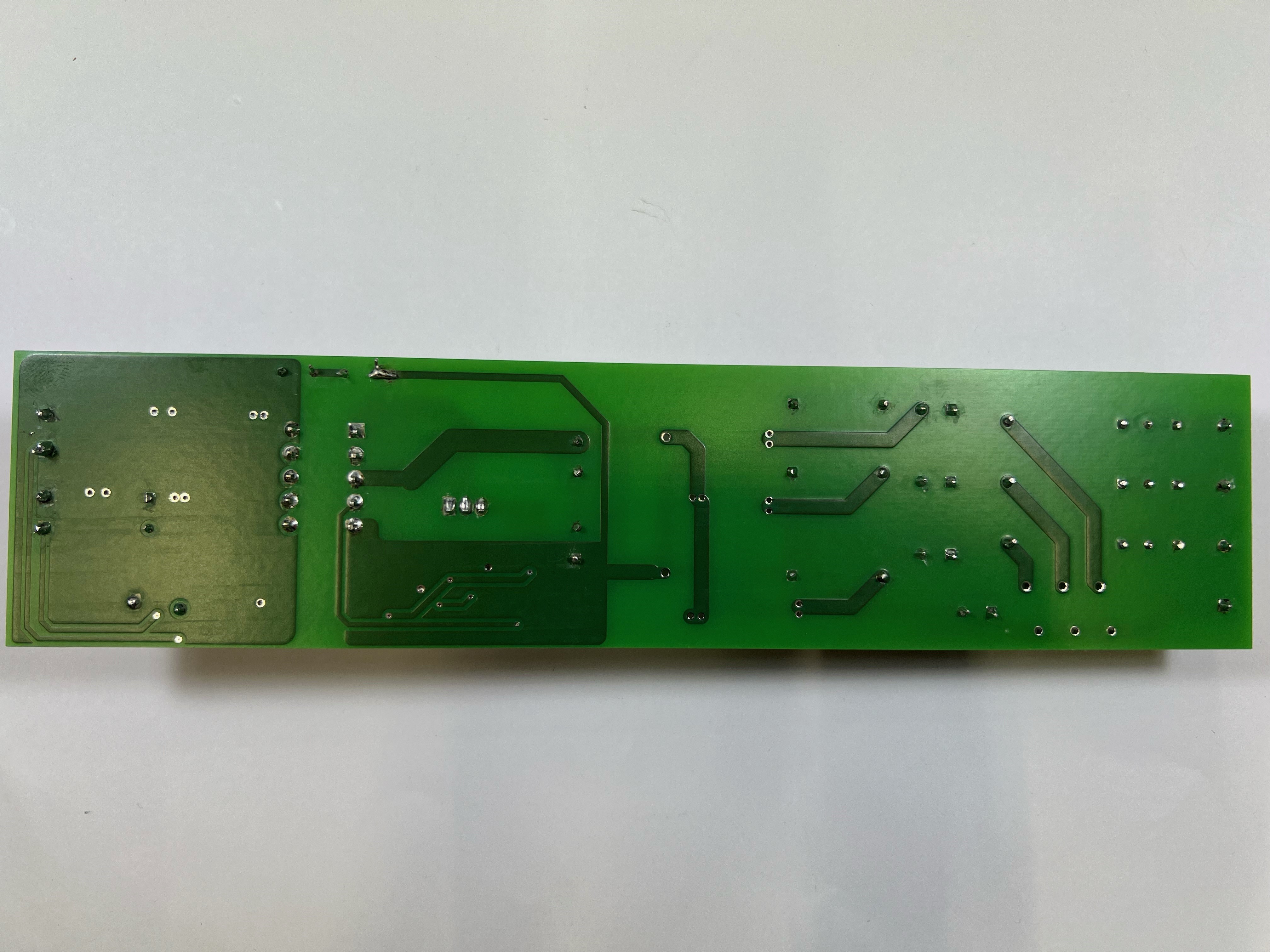

GUID-20221220-SS0I-LNWF-LZXM-QSMJLW6KBVVB-low.jpgBottom Photo

1 Test Prerequisites
