DATA SHEET

UCC12050 High-Density, Low-EMI, 5-kVRMS Reinforced Isolation DC/DC Module

1 Features

  • High-density DC/DC module with optimized integrated transformer technology
  • Input voltage range: 4.5 V to 5.5 V
  • Output voltages (selectable): 5.4 V, 5.0 V, 3.7 V, 3.3 V
  • Output power: 500 mW
  • Peak efficiency: 60%
  • Line regulation (typical): 1%
  • Load regulation (typical): 1.5%
  • Meets CISPR32 Class B EMI limits without ferrite beads on a 2-layer PCB
  • Spread spectrum modulation (SSM)
  • Robust isolation barrier:
    • Isolation rating: 5 kVRMS
    • Surge capability: 10 kVPK
    • Working voltage: 1.2 kVRMS
    • CMTI (typical): ±100 V/ns
  • Short circuit recovery
  • Thermal shutdown
  • 16-pin wide-body SOIC package with > 8-mm creepage and clearance
  • Extended temperature range: –40°C to 125°C
  • Safety-related certifications:
    • 7071-VPK reinforced isolation per DIN V VDE V 0884-11:2017-01
    • 5000-VRMS isolation for 1 minute per UL 1577
    • UL certification per IEC 60950-1, IEC 62368-1 and IEC 60601-1 end equipment standards
    • CQC approval per GB4943.1-2011

2 Applications and Uses

  • On-board charger
  • Battery management system
  • Traction inverter
  • DC/DC converter for HEV/EVs

3 Description

UCC12050 is an automotive qualified DC/DC power module with 5-kVRMSreinforced isolation rating designed to provide efficient, isolated power to isolated circuits that require a bias supply with a well-regulated output voltage. The device integrates a transformer and DC/DC controller with a proprietary architecture to provide 500 mW (typical) of isolated power with low EMI.

The UCC12050 integrates protection features for increased system robustness. The device also has an enable pin, synchronization capability, and regulated 5-V or 3.3-V output options with headroom. The UCC12050 is a low-profile, miniaturized solution offered in a wide-body SOIC package with 2.65-mm height (typical).

Device Information(1)
PART NUMBERPACKAGEBODY SIZE (NOM)
UCC12050DVE SOIC (16)10.30 mm × 7.50 mm
(1) For all available packages, see the orderable addendum at the end of the data sheet.

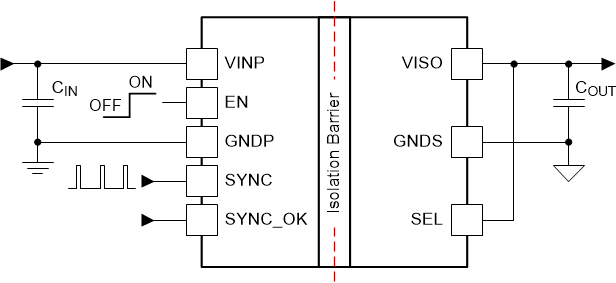

GUID-C7E7C870-41E5-4931-98EE-B59A572684B7-low.gifSimplified Application

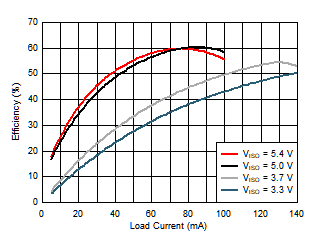

VINP = 5.0 VTA = 25°C
Typical Efficiency vs. Load

4 Revision History

Changes from Revision C (April 2020) to Revision D (February 2021)

  • Added updates to the text throughout the document. Go
  • Updated ESD values. Go
  • Updated thermal footnote description.Go
  • Updated voltage isolation specs per DIN V VDE V 0884-11:2017-01Go
  • Added certification numbers.Go
  • Updated Switching Characteristics (non-sync).Go
  • Added Section number included Go

Changes from Revision B (December 2019) to Revision C (April 2020)

  • Added updates to the text throughout the document. Go
  • Added footnote to Insulation Speficications tableGo
  • Removed Pout_max as a Loading parameter. Removed Pout_max from graph.Go

Changes from Revision A (September 2019) to Revision B (December 2019)

  • Changed marketing status from Advance Information to Initial Release.Go
