DATA SHEET

LM26420 Dual 2-A, High-Efficiency Synchronous DC/DC Converter

1 Features

  • Compliant with CISPR25 Class 5 Conducted Emissions
  • Input Voltage Range of 3 V to 5.5 V
  • Output Voltage Range of 0.8 V to 4.5 V
  • 2-A Output Current per Regulator
  • High Switching Frequency: 2.2 MHz (LM26420X)
        0.55 MHz (LM26420Y)
  • 0.8 V, 1.5% Internal Voltage Reference
  • Internal Soft Start
  • Independent Power Good and Precision Enable for Each Output
  • Current Mode, PWM Operation
  • Thermal Shutdown
  • Overvoltage Protection
  • Start-up into Prebiased Output Loads
  • Regulators are 180° Out of Phase
  • Create a Custom Design Using the LM26420 With the WEBENCH® Power Designer

2 Applications

  • Local 5 V to Vcore of FPGAs
  • Core Power in HDDs and Set-Top Boxes
  • USB Powered Devices
  • Powering Core and I/O Voltages for CPUs and ASICs
  • space

3 Description

The LM26420 regulator is a monolithic, high-efficiency dual PWM step-down DC/DC converter. This device has the ability to drive two 2-A loads with an internal 75-mΩ PMOS top switch and an internal 50-mΩ NMOS bottom switch using state-of-the-art BICMOS technology results in the best power density available. The world-class control circuitry allow on times as low as 30 ns, thus supporting exceptionally high-frequency conversion over the entire 3-V to 5.5-V input operating range down to the minimum output voltage of 0.8 V.

Although the operating frequency is high, efficiencies up to 93% are easy to achieve. External shutdown is included, featuring an ultra-low standby current. The LM26420 utilizes current-mode control and internal compensation to provide high performance regulation over a wide range of operating conditions.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
LM26420 HTSSOP (20) 6.50 mm × 4.40 mm
WQFN (16) 4.00 mm × 4.00 mm
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Device Images

LM26420 Dual Buck DC/DC Converter

LM26420 Typical dual Buck DC/DC Converter LM26420 LM26420_Typical_Dual_Buck_DCDC_Converter.gif

LM26420 Efficiency (Up to 93%)

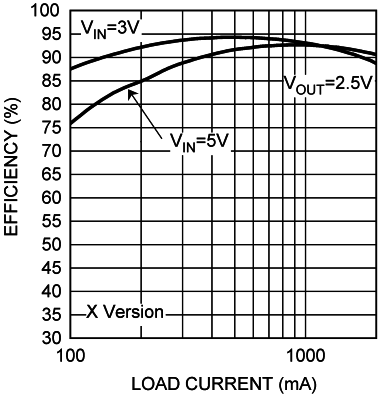

LM26420, Efficiency Up to 93% LM26420 LM26420_Efficiency_Up_to_93_Percent.png



Texas Instruments
