User's Guide

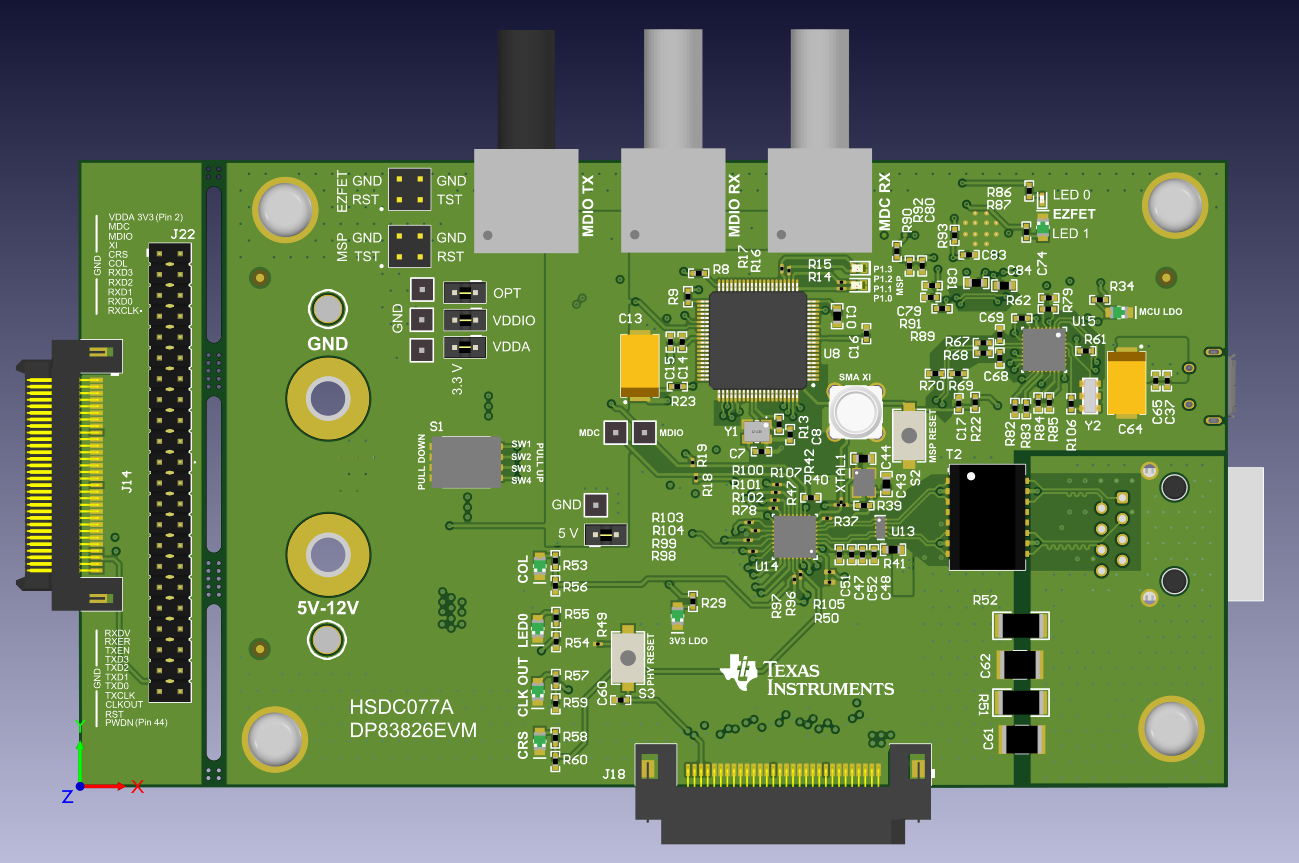

DP83826EVM
Abstract
This User’s Guide discusses how to properly operate and configure the DP83826EVM.
Trademarks
All trademarks are the property of their respective owners.
1 Definitions
Table 1-1 Terminology
| ACRONYM | DEFINITION |
|---|---|
| PHY | Physical Layer Transceiver |
| MAC | Media Access Controller |
| SMI | Serial Management Interface |
| MDIO | Management Data I/O |
| MDC | Management Data Clock |
| MII | Media Independent Interface |
| RMII | Reduced Media Independent Interface |
| SFD | Start-of-Frame Detection |
| VDDA | Analog Core Supply Rail |
| VDDIO | Digital Supply Rail |
| PD | Pulldown |
| PU | Pullup |
| MCU | Microcontroller |
| PMD | Physical Medium Dependent |
| PRBS | Pseudo Random Binary Sequence |
