DATA SHEET

TPS92200 4-V to 30-V Input Voltage, 1.5-A Output Current, Synchronous Buck LED Driver With Flexible Dimming Options

1 Features

  • 4-V to 30-V wide input range
  • Integrated 150-mΩ and 90-mΩ MOSFETs for
    1.5-A continuous output current
  • Ultra-low shut-down current: 1 μA
  • Ultra-low output discharge current from load: 1 μA
  • 1-MHz switching frequency
  • Maximum duty cycle up to 99%
  • Peak current mode with internal compensation
  • Flexible dimming options:
    • TPS92200D1: PWM dimming with digital input and analog dimming with analog input
    • TPS92200D2: analog dimming with digital input
  • Ultra-low and accurate FB voltage: 99 mV ±3 mV
  • Full protection features:
    • LED open-load protection
    • LED+ short-to-GND protection with auto-retry
    • LED+ and LED– short circuitry protection with auto-retry
    • Sense-resistor open-load and short-to-GND protection with auto-retry
    • Thermal shutdown protection with auto-retry
  • SOT23 (6) package
  • VQFN-HR (6) package

2 Applications

  • Video surveillance IR/White LED driver
  • Facial recognition IR LED driver
  • Stage lighting LED driver
  • General industrial and commercial illumination
  • Medical UV LED driver
  • AA or Li-Ion battery charger

3 Description

The TPS92200 device is a 1.5-A synchronous buck LED driver with 30-V maximum input voltage. By integrating the high-side and low-side NMOS switches, the TPS92200 device provides high power density with high efficiency in an ultra-small solution size. The TPS92200 device uses peak-current-mode control and full internal compensation to provide high transient response performance over a wide range of operating conditions.

The TPS92200 device supports flexible dimming methods. TPS92200D1 implements both PWM and analog dimming modes. In PWM dimming mode, LEDs turn on and off according to PWM duty cycle periodically. The device's analog dimming mode is achieved by changing the internal reference voltage proportional to the voltage level of the analog input in 5% to 100% range. TPS92200D2 implements deeper analog dimming by changing the internal reference voltage proportional to the duty cycle of the PWM signal input in 1% to 100% range.

For safety and protection, the TPS92200 devices implement full protections, including LED open, LED+ short-to-GND, LED short, sense resistor open and short, and device thermal protection.

Device Information
PART NUMBER PACKAGE BODY SIZE (NOM)
TPS92200D1DDCR SOT-23-THIN (6) 1.60 mm × 2.90 mm
TPS92200D2DDCR SOT-23-THIN (6) 1.60 mm × 2.90 mm
TPS92200D1RXLR VQFN-HR (6) 1.50 mm × 2.00 mm
TPS92200D2RXLR VQFN-HR (6) 1.50 mm × 2.00 mm

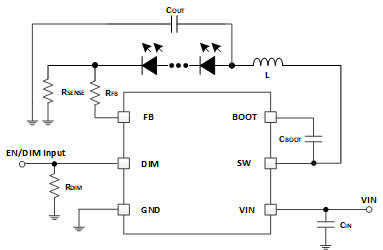

GUID-20220103-SS0I-5RQV-SZHK-KQRTW0G9N8LR-low.gif Simplified Schematic
