Data Sheet

TPS40170 4.5-V to 60-V, Wide-Input Synchronous PWM Buck Controller

1 Features

  • New, similar products available:
    • LM5145 75-V synchronous buck controller with wide input voltage and duty cycle ranges
    • LM5146 100-V synchronous buck DC/DC controller with wide duty-cycle range
  • Wide input voltage range from 4.5 V to 60 V
  • Reference voltage of 600 mV with 1% accuracy
  • Programmable UVLO and hysteresis
  • Voltage mode control with voltage feed forward
  • Programmable frequency between 100 kHz and 600 kHz
  • Bi-directional -frequency synchronization with primary and secondary option
  • Low-side FET sensing overcurrent protection and high-side FET sensing short-circuit protection with integrated thermal compensation
  • Programmable closed loop soft-start
  • Supports pre-biased outputs
  • Thermal shutdown at 165°C with hysteresis
  • Voltage tracking
  • Power good
  • ENABLE with 1-µA low current shutdown
  • LDO output of 8.0 V and 3.3 V
  • Integrated Bootstrap Diode
  • 20-Pin 3.5 mm × 4.5 mm VQFN (RGY) package
  • Create a Custom Design with WEBENCH® Tools

2 Applications

  • POL modules
  • Wide input voltage, high-power density DC - DC converters for industrial, networking, and telecom equipment

3 Description

TPS40170 is a full-featured, synchronous PWM buck controller that operates at an input voltage between 4.5 V and 60 V and is optimized for high-power density, high-reliability DC-DC converter applications. The controller implements voltage-mode control with input voltage feed-forward compensation that enables instant response to input voltage change. The switching frequency is programmable from 100 kHz to 600 kHz.

The TPS40170 has a complete set of system protection and monitoring features such as programmable undervoltage lockout (UVLO), programmable overcurrent protection (OCP) by sensing the low-side FET, selectable short-circuit protection (SCP) by sensing the high-side FET and thermal shutdown. The ENABLE pin allows for system shutdown in a low-current (1 µA typical) mode. The controller supports pre-biased output, provides an open-drain PGOOD signal, and has closed-loop soft-start, output voltage tracking and adaptive dead-time control.

TPS40170 provides accurate output voltage regulation through 1% ensured accuracy. Additionally, the controller implements a novel scheme of bi-directional synchronization with one controller acting as the primary and other downstream controllers acting as secondaries synchronized to the primary in-phase or 180° out-of-phase. Secondary controllers can be synchronized to an external clock within ±30% of the free-running switching frequency.

New products (LM5145 and LM5146) offer reduced BOM cost, higher efficiency, and reduced design size among many other features.

Package Information
PART NUMBER PACKAGE(1) PACKAGE SIZE(2)
TPS40170 RGY (VQFN, 20) 4.50 mm × 3.50 mm
(1) For all available packages, see Section 10.
(2) The package size (length × width) is a nominal value and includes pins, where applicable.

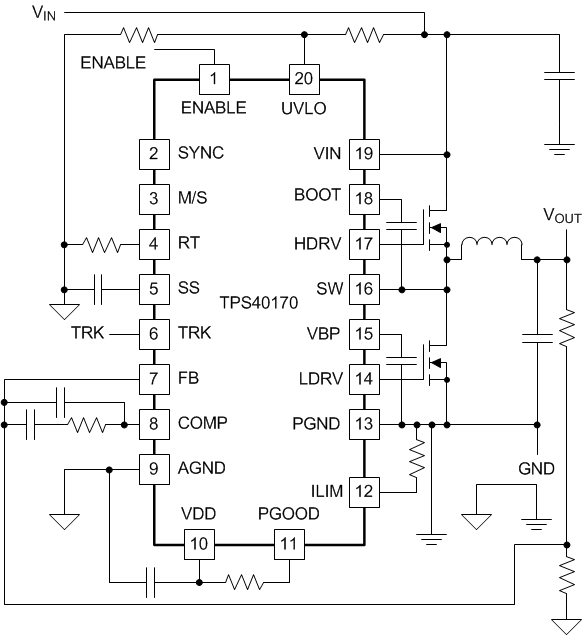

GUID-A1E047A8-8EAA-4851-BDB6-A44E9BCA14D1-low.gifSimplified Application

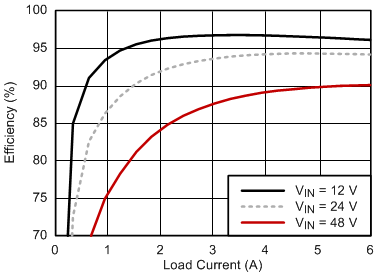

GUID-5431410C-DBB4-4CB6-A6C0-747A14538EEC-low.gifEfficiency vs Load Current


Texas Instruments
