• Quad Half-bridge driver
  • Can drive up to four Solenoid Loads, Two DC Motors, One Stepper Motor, or Other Loads
• Integrated current sensing and regulation
• 4.5-V to 33-V Operating supply voltage range
• Low R_DS(ON): 900 mΩ HS + LS at 24 V, 25°C
• 1.5-A maximum drive current at 24 V, 25°C
• Pin to pin compatible with -
  • DRV8955: 48-V, 330 mΩ HS + LS
  • DRV8935: 33-V, 330 mΩ HS + LS
• Configurable Off-Time PWM Chopping
  • 7, 16, 24 or 32 μs
• Supports 1.8-V, 3.3-V, 5.0-V logic inputs
• Low-current sleep mode (2 µA)
• Spread spectrum clocking for low EMI
• Small package and footprint
• Protection features
  • VM undervoltage lockout (UVLO)
  • Charge pump undervoltage (CPUV)
  • Overcurrent protection (OCP)
  • Thermal shutdown (OTSD)
  • Fault condition output (nFAULT)

• Refrigerator Damper and Ice Maker
• Textile Machines
• Office and Home Automation
• Factory Automation and Robotics
• Gaming Machines
• Washers, Dryers and Dishwashers
• General Purpose Solenoid Loads

The DRV8932 provides four half-bridge drivers for industrial applications. The device can be used for driving up to four solenoid loads, two DC motors, one Stepper motor, or other loads.

The output stage for each channel consists of N-channel power MOSFETs configured in a half bridge. A simple PWM interface allows easy interface with the controller. The DRV8932 operates off a single power supply and supports a wide input supply range from 4.5 V to 33 V. The DRV8932 can supply up to 1.5-A peak or 1.05-A RMS output current per channel (dependent on PCB design).

A low-power sleep mode is provided to achieve a low quiescent current draw by shutting down much of the internal circuitry. Internal protection functions are provided for undervoltage-lockout, overcurrent protection on each FET, short circuit protection, and overtemperature. Fault conditions are indicated by the nFAULT pin.

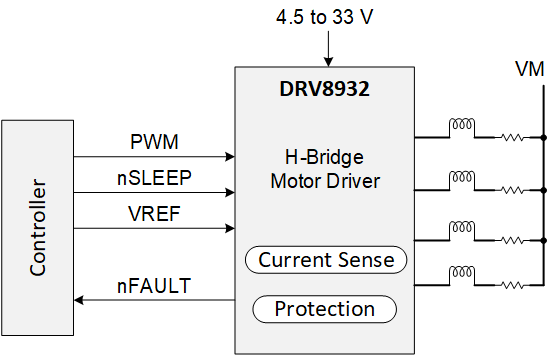

DRV8932 Simplified Schematic
