Isolating GPIO Signals
1

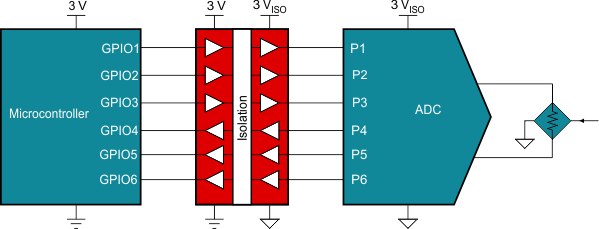

Example GPIO Isolation Block Diagram. 2 Design Considerations
- Prevents DC and unwanted AC currents between controller devices and peripheral ICs
- Allows signal and power transfer between controller devices and peripheral ICs
- Protects low voltage parts in a system from high voltage circuits
- Diminishes the effect of ground potential difference
[FAQ] What is the difference between basic and reinforced digital isolators?
[FAQ] Can unused channel pins on a digital isolator be left floating?
Need additional assistance? Ask our engineers a question on the TI E2E™ Isolation Support Forum
3 Recommended Parts
| Part Number | AEC-Q100 | Channel Count | Voltage Range | Data Rate | Features |
|---|---|---|---|---|---|
| ISO67xx | ✓ | 2-6 | 1.71 - 5.5 V | 50 Mbps | High CMTI Reinforced and basic isolation General purpose |
| ISO77xx | ✓ | 1-6 | 2.25 - 5.5 V | 100 Mbps | High CMTI Reinforced and basic isolation High-speed |
| ISO70xx | ✓ | 2,4 | 1.71 - 5.5 V | 4 Mbps | Ultra-low power |
| ISOW77xx | 100 Mbps | Digital isolator with integrated power | |||
| ISO78xx | 1-4 | 2.25 - 5.5 V | Extra-wide creepage and clearance package |
For more devices, browse through the online parametric tool where you can sort by desired voltage, channel numbers, and other features.
