FUNCTIONAL SAFETY FIT RATE, FMD AND PIN-FMA

TLV1812-Q1, TLV1822-Q1 Functional Safety FIT Rate, FMD and Pin FMA

Trademarks

All trademarks are the property of their respective owners.

1 Overview

This document contains information for TLV1812-Q1 and TLV1822-Q1 to aid in a functional safety system design. Information provided are:

  • Functional Safety Failure In Time (FIT) rates of the semiconductor component estimated by the application of industry reliability standards
  • Component failure modes and their distribution (FMD) based on the primary function of the device
  • Pin failure mode analysis (Pin FMA)

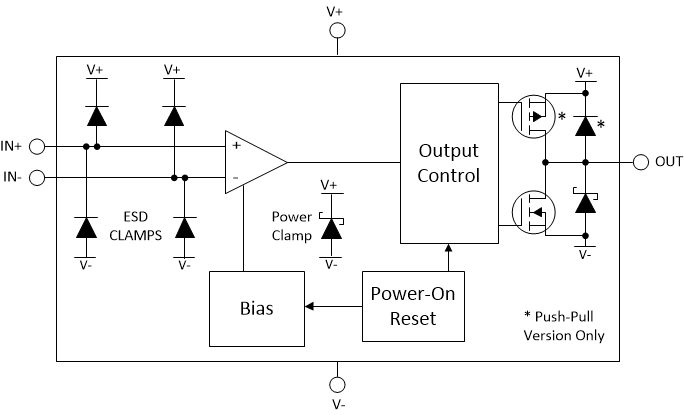

Figure 1-1 shows the device functional block diagram for reference.

GUID-20210218-CA0I-TJJ8-DWQ6-KWZMSV25P3GT-low.gifFigure 1-1 Functional Block Diagram

TLV1812-Q1 and TLV1822-Q1 were developed using a quality-managed development process, but was not developed in accordance with the IEC 61508 or ISO 26262 standards.
