• 2-Bit bidirectional translator for SDA and SCL lines in mixed-mode I²C applications
• Standard-mode, fast-mode, and fast-mode plus I²C and SMBus compatible
• I³C compatible (12.5 MHz supported)
• Allows voltage-level translation between
  • 0.9-V V_REF1 and 1.8-V, 2.5-V, 3.3-V,
    or 5-V V_REF2
  • 1.2-V V_REF1 and 1.8-V, 2.5-V, 3.3-V,
    or 5-V V_REF2
  • 1.8-V V_REF1 and 2.5-V, 3.3-V, or 5-V V_REF2
  • 2.5-V V_REF1 and 3.3-V or 5-V V_REF2
  • 3.3-V V_REF1 and 5-V V_REF2
• Provides bidirectional voltage translation with no direction Pin
• Low ON-state resistance between input and output ports provides less signal distortion
• Open-drain I²C I/O ports (SCL1, SDA1, SCL2, and SDA2)
• 5-V Tolerant I²C I/O ports to support mixed-mode signal operation
• High-impedance SCL1, SDA1, SCL2, and SDA2 pins for EN = Low
• Lockup-free operation for isolation when EN = Low
• Flow-through pinout for ease of printed-circuit-board trace routing
• ESD Protection Exceeds JESD 22
  • 2000-V human-body model (A114-A)
  • 1000-V charged-device model (C101)

• I²C, SMBus, PMBus, MDIO, UART, low-speed SDIO, GPIO, and other two-signal interfaces
• Servers
• Routers (telecom switching equipment)
• Personal computers
• Industrial automation

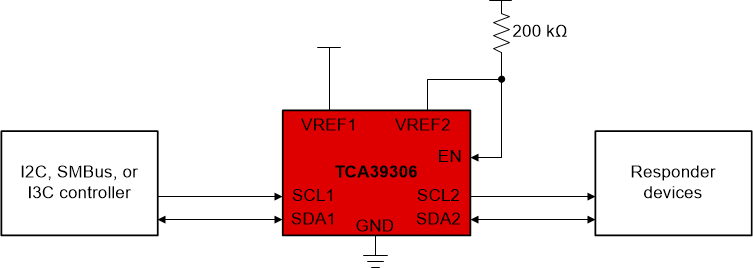

The TCA39306 is a dual bidirectional voltage-level translator compatible with I²C, SMBus, and I³C with an enable (EN) input, and is operational from 0.9-V to 3.3-V V_REF1 and 1.8-V to 5.5-V V_REF2.

The device allows bidirectional voltage translations between 0.85 V and 5 V, without the use of a direction pin. The low ON-state resistance (R_ON) of the switch allows connections to be made with minimal propagation delay. When EN is high, the translator switch is ON, and the SCL1 and SDA1 I/O are connected to the SCL2 and SDA2 I/O, respectively, allowing bidirectional data flow between ports. When EN is low, the translator switch is off, and a high-impedance state exists between ports.

In addition to voltage translation, the TCA39306 can be used to isolate a higher speed bus from a lower speed bus by controlling the EN pin to disconnect the slower bus during fast-mode communication.
