  • SimpleLink™ Wi-Fi® CC3x20, CC3x3x Network Processor

    • SWRU455M February   2017  – October 2020 CC3120 , CC3120MOD , CC3130 , CC3135 , CC3135MOD , CC3220MOD , CC3220MODA , CC3220R , CC3220S , CC3220SF , CC3230S , CC3230SF , CC3235MODAS , CC3235MODASF , CC3235MODS , CC3235MODSF , CC3235S , CC3235SF



  • CONTENTS
  • SEARCH
  • SimpleLink™ Wi-Fi® CC3x20, CC3x3x Network Processor
  1. 1 Overview
    1. 1.1 Trademarks
  2. 1 Introduction
    1. 1.1 Features
    2. 1.2 Key Features

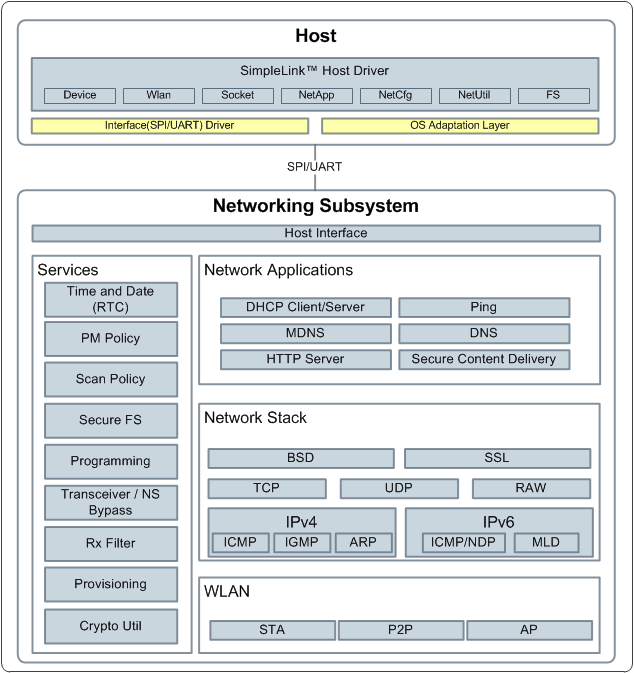

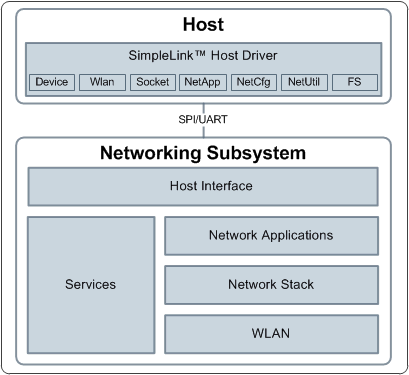

    3. 1.3 Block Diagram
    4. 1.4 Host Driver Overview
      1. 1.4.1 Host Interface
      2. 1.4.2 OS versus Non-OS
      3. 1.4.3 Quick Reference
      4. 1.4.4 Porting to Different Platforms
    5. 1.5 Acronyms and Terminologies
  3. 2 Networking Application
    1. 2.1 Introduction
      1. 2.1.1 Wi-Fi Connectivity
      2. 2.1.2 Traffic Types
      3. 2.1.3 Security
      4. 2.1.4 User Experience
      5. 2.1.5 Power Consumption
      6. 2.1.6 Provisioning
    2. 2.2 Basic Examples
      1. 2.2.1 Wi-Fi Doorbell
        1. 2.2.1.1 Description
        2. 2.2.1.2 Design Considerations
      2. 2.2.2 Power Socket
        1. 2.2.2.1 Description
        2. 2.2.2.2 Design Constraints
      3. 2.2.3 Wi-Fi Tag
        1. 2.2.3.1 Description
        2. 2.2.3.2 Design Consideration
  4. 3 Device
    1. 3.1  Introduction
    2. 3.2  Key Features
    3. 3.3  Start and Stop
      1. 3.3.1 Start
      2. 3.3.2 Stop
      3. 3.3.3 Hibernate and Shutdown
      4. 3.3.4 Lock State
      5. 3.3.5 Initialization Sequence
    4. 3.4  Host Interface
      1. 3.4.1 SPI Interface
      2. 3.4.2 UART Interface
        1. 3.4.2.1 Change UART Baud Rate
    5. 3.5  Version
    6. 3.6  Event Mask
    7. 3.7  Time and Date
    8. 3.8  MAC Address
    9. 3.9  Device Name
    10. 3.10 Domain Name
    11. 3.11 Device Status
    12. 3.12 Persistent Configuration
    13. 3.13 Device Statistics
    14. 3.14 Errors
  5. 4 WLAN
    1. 4.1  Introduction
    2. 4.2  Key Features
    3. 4.3  Station (STA)
      1. 4.3.1 General Description
      2. 4.3.2 Configurations and Settings
        1. 4.3.2.1 Set Mode
        2. 4.3.2.2 Set General STA Parameters
      3. 4.3.3 Connection
        1. 4.3.3.1 Connection Policies
        2. 4.3.3.2 Preferred Networks (Profiles)
        3. 4.3.3.3 Manual Connection
      4. 4.3.4 Events and Errors
      5. 4.3.5 RSSI Trigger
      6. 4.3.6 Soft-Roaming
      7. 4.3.7 Beacon Interval and DTIM Period
      8. 4.3.8 Agile Multiband
      9. 4.3.9 Triggered Roaming
    4. 4.4  Access Point
      1. 4.4.1 General Description
      2. 4.4.2 Configurations and Settings
        1. 4.4.2.1 Set Mode
        2. 4.4.2.2 Set General AP Parameters
        3. 4.4.2.3 Get General AP Parameters
        4. 4.4.2.4 Black List
      3. 4.4.3 Set Network Configuration
        1. 4.4.3.1 Set AP IP Parameters
      4. 4.4.4 Station Management
        1. 4.4.4.1 Get Connected Stations
        2. 4.4.4.2 Disconnect a Station
      5. 4.4.5 Events and Errors
      6. 4.4.6 Limitations
    5. 4.5  Wi-Fi Direct
      1. 4.5.1 General Description
      2. 4.5.2 Supported Features
      3. 4.5.3 Configurations and Settings
        1. 4.5.3.1 Configuring Wi-Fi Direct General Parameters
        2. 4.5.3.2 Set Wi-Fi Direct Policy
        3. 4.5.3.3 Configure Connection Policy
      4. 4.5.4 Connection
      5. 4.5.5 Events and Errors
      6. 4.5.6 Limitations
    6. 4.6  WLAN Security
      1. 4.6.1 Personal Security
      2. 4.6.2 Enterprise Security
      3. 4.6.3 WPS
    7. 4.7  Scan
      1. 4.7.1 General Description
      2. 4.7.2 Connection Scan
      3. 4.7.3 Configuration (AP/STA)
      4. 4.7.4 Usage
      5. 4.7.5 Miscellaneous
    8. 4.8  Antenna Diversity
      1. 4.8.1 Overview
      2. 4.8.2 Configuration
      3. 4.8.3 Pad Selection
    9. 4.9  Calibrations
      1. 4.9.1 2.4-GHz Wi-Fi Calibration Modes
      2. 4.9.2 5-GHz Wi-Fi Calibration Modes
        1. 4.9.2.1 Serving Channel Calibrations
        2. 4.9.2.2 Non-Serving Channel Calibrations
        3. 4.9.2.3 Storing Calibration Data
        4. 4.9.2.4 Transceiver Socket
    10. 4.10 BLE / 2.4-GHz Radio Coexistence
      1. 4.10.1 Key Features
      2. 4.10.2 Configuration and Settings
      3. 4.10.3 Operation
        1. 4.10.3.1 Calibration
  6. 5 Network Addresses
    1. 5.1 Introduction
    2. 5.2 Key Features
    3. 5.3 Addressing
      1. 5.3.1 IPv4 Addresses
      2. 5.3.2 IPv6 Addresses
        1. 5.3.2.1 Local Link
        2. 5.3.2.2 Link-Global
      3. 5.3.3 DNS Addresses
    4. 5.4 DHCPv4 Client
      1. 5.4.1 Modes
      2. 5.4.2 Address Release
    5. 5.5 DHCPv4 Server
      1. 5.5.1 Enable and Disable the DHCP Server
      2. 5.5.2 Set DHCP Server Parameters
    6. 5.6 DNS Server
    7. 5.7 Errors and Asynchronous Events
  7. 6 Socket
    1. 6.1 Introduction
    2. 6.2 Key Features
    3. 6.3 Socket Types
    4. 6.4 BSD API
    5. 6.5 Socket Working Flow
      1. 6.5.1 TCP
        1. 6.5.1.1 Client Side
        2. 6.5.1.2 Server Side
        3. 6.5.1.3 TCP Keep Alive
      2. 6.5.2 UDP
        1. 6.5.2.1 Multicast
        2. 6.5.2.2 Packet Boundary
      3. 6.5.3 RAW
        1. 6.5.3.1 Layer 4: Transport
        2. 6.5.3.2 Layer 3: Network
        3. 6.5.3.3 Layer 2: Data Link (Transceiver Mode, Not Connected)
      4. 6.5.4 Network Bypass Mode
    6. 6.6 DNS
    7. 6.7 Operation Modes
      1. 6.7.1 Nonblocking Mode
      2. 6.7.2 Trigger Mode
        1. 6.7.2.1 Trigger Mode for Accept
        2. 6.7.2.2 Trigger Mode for Data Reception
      3. 6.7.3 Multiple Select
    8. 6.8 IP Fragmentation
    9. 6.9 Errors
  8. 7 Secure Socket
    1. 7.1 Introduction
    2. 7.2 Key Features
    3. 7.3 Opening a Secure Socket
    4. 7.4 Trusted Root-Certificate Catalog
    5. 7.5 Options and Features Use
      1. 7.5.1 Set TLS Version
      2. 7.5.2 Set Cipher Suites
      3. 7.5.3 Set Certificates, Root CA, Private Key, and DH Files
      4. 7.5.4 Disable the Use of the Trusted Root-Certificate Catalog
      5. 7.5.5 Set ALPN List
        1. 7.5.5.1 ALPN Fixed List
        2. 7.5.5.2 ALPN Generic
      6. 7.5.6 Set Domain Name for Verification and SNI
      7. 7.5.7 Enable OCSP Check
      8. 7.5.8 Upgrade Nonsecured Socket to Secured
      9. 7.5.9 Get Connection Parameters
    6. 7.6 Supported Cryptographic Algorithms
    7. 7.7 Common Errors and Asynchronous Events
      1. 7.7.1 Using Socket Asynchronous Events in TLS
      2. 7.7.2 Common Errors
  9. 8 File System
    1. 8.1  Introduction
    2. 8.2  Key Features
    3. 8.3  File System Characteristics
    4. 8.4  Write a File
      1. 8.4.1 Introduction
      2. 8.4.2 Create a File versus Open for Write
      3. 8.4.3 Create a File
        1. 8.4.3.1 Secure File Creation Notes
        2. 8.4.3.2 Forced Creation Flags
      4. 8.4.4 Open a File for Write
      5. 8.4.5 Write an Opened File
      6. 8.4.6 Close an Opened File (for Write)
      7. 8.4.7 Close an Opened Secure-Signed File (for Write)
    5. 8.5  Read a File
      1. 8.5.1 Open a File for Read
      2. 8.5.2 Read an Opened File
      3. 8.5.3 Close an Opened File (for Read)
    6. 8.6  Delete a File
    7. 8.7  Rename a File
    8. 8.8  File System Helper Functions
      1. 8.8.1 Get File Information
      2. 8.8.2 Get Storage Information
      3. 8.8.3 Get List of Files
    9. 8.9  Bundle Protection
      1. 8.9.1 Bundle File States
      2. 8.9.2 Bundle States
        1. 8.9.2.1 STOPPED
        2. 8.9.2.2 STARTED
        3. 8.9.2.3 PENDING_COMMIT
      3. 8.9.3 Commit a Bundle
      4. 8.9.4 Rollback a Bundle
      5. 8.9.5 Retrieve the Bundle and Files State
      6. 8.9.6 M4 Host Application Bundle Aspects
    10. 8.10 File Commit Feature
      1. 8.10.1 File Commit Process
    11. 8.11 File Rollback Process
    12. 8.12 Programming
      1. 8.12.1 Creation of the Programming Image
        1. 8.12.1.1 Programming Image Types
        2. 8.12.1.2 Program the Device
          1. 8.12.1.2.1 Image Creator Tool (UART) Programming
          2. 8.12.1.2.2 Host Programming
          3. 8.12.1.2.3 External Tool Programming
    13. 8.13 Restore to Factory
      1. 8.13.1 Restore to Factory by the Host
      2. 8.13.2 Restore to Factory by Using the SOP
        1. 8.13.2.1 CC31xx
        2. 8.13.2.2 CC32xx
    14. 8.14 Security Alerts
    15. 8.15 Design Consideration
      1. 8.15.1 Choosing SFLASH Type
      2. 8.15.2 Software Design Consideration
      3. 8.15.3 Retrieving Info Regarding SFLASH Usage
      4. 8.15.4 SFLASH Size
        1. 8.15.4.1 Restore to Factory is Disabled
        2. 8.15.4.2 Restore to Factory is Enabled
      5. 8.15.5 Storage Usage Information
  10. 9 HTTP Server
    1. 9.1 Introduction
      1. 9.1.1 Built-in Configuration Pages
      2. 9.1.2 RESTful APIs
        1. 9.1.2.1 Changing Configuration
        2. 9.1.2.2 Reading Configuration
      3. 9.1.3 Custom Static Pages
        1. 9.1.3.1 Custom Pages With Device Tokens
        2. 9.1.3.2 Static Pages With Host Tokens
      4. 9.1.4 Host Application Interface
    2. 9.2 Key Features
    3. 9.3 Configurations and Settings
    4. 9.4 RESTful API Processing
      1. 9.4.1  Ping
      2. 9.4.2  IP Configuration
      3. 9.4.3  URN Configuration
      4. 9.4.4  WLAN Profiles
      5. 9.4.5  WLAN Scan
      6. 9.4.6  Provisioning Confirmation
      7. 9.4.7  Connection Policy
      8. 9.4.8  Station Action
      9. 9.4.9  AP Black List
      10. 9.4.10 Date and Time
    5. 9.5 Device Parameter Querying Through HTTP (Device Tokens)
      1. 9.5.1  Retrieving Tokens Through GET Request
      2. 9.5.2  Embedded Tokens
      3. 9.5.3  System Information
      4. 9.5.4  Version Information
      5. 9.5.5  Network Information
      6. 9.5.6  Ping Results
      7. 9.5.7  Connection Policy Status
      8. 9.5.8  Provisioning
      9. 9.5.9  Display Profile Information
      10. 9.5.10 P2P Information
      11. 9.5.11 Host Tokens
    6. 9.6 Resource Search Order
      1. 9.6.1 GET Request Search Order
      2. 9.6.2 POST Request Search Order
      3. 9.6.3 PUT and DELETE Request Search Order
    7. 9.7 Host HTTP Requests Processing
      1. 9.7.1 Metadata (TLVs) Description
      2. 9.7.2 GET Processing
        1. 9.7.2.1 Fragmentation
      3. 9.7.3 POST Processing
        1. 9.7.3.1 Long Requests and Delayed Responses
      4. 9.7.4 PUT Processing
      5. 9.7.5 DELETE Processing
    8. 9.8 Security
      1. 9.8.1 Authentication
        1. 9.8.1.1 HTTP Realm
      2. 9.8.2 Secure Connection
    9. 9.9 Processing of Parallel Requests
  11. 10mDNS
    1. 10.1 Introduction
    2. 10.2 Key Features
    3. 10.3 Configurations and Settings
    4. 10.4 Query
      1. 10.4.1 One Shot Query
      2. 10.4.2 Continuous Query
      3. 10.4.3 Mask Services
    5. 10.5 Get Service List
    6. 10.6 Advertisement
      1. 10.6.1 Registering mDNS Services
      2. 10.6.2 Unregistering mDNS Services
      3. 10.6.3 Advertisement Settings
        1. 10.6.3.1 Timing
        2. 10.6.3.2 Update Text
    7. 10.7 Limitations
  12. 11Rx Filters
    1. 11.1 Introduction
    2. 11.2 Matching Process
      1. 11.2.1 Filter Matching
      2. 11.2.2 Tree Traversal
    3. 11.3 Examples of Filter Use
      1. 11.3.1 Example 1
      2. 11.3.2 Example 2
    4. 11.4 Filter Creation
      1. 11.4.1 Filter Type
      2. 11.4.2 Filter Flags
      3. 11.4.3 Rule Structure for Header Filters
        1. 11.4.3.1 Field
        2. 11.4.3.2 Compare Functions
        3. 11.4.3.3 Rule Fields
        4. 11.4.3.4 Pattern-Matching Rule Fields
      4. 11.4.4 Rule Structure for Combined Filters
      5. 11.4.5 Filter Trigger
        1. 11.4.5.1 Parent Filter ID
        2. 11.4.5.2 Connection State and Role
        3. 11.4.5.3 Filter During Transceiver Mode
      6. 11.4.6 Rx Filter Action
        1. 11.4.6.1 Send Events Action
        2. 11.4.6.2 Multiple Bits Set on the Same Event
        3. 11.4.6.3 Multiple Events From the Same Rx Frame
        4. 11.4.6.4 Code Example
        5. 11.4.6.5 Counter Action
    5. 11.5 Managing Filters
      1. 11.5.1 Enable and Disable Filters
      2. 11.5.2 Get Filter Status
      3. 11.5.3 Removing a Filter
      4. 11.5.4 Storing Filters into the SFLASH
      5. 11.5.5 Update Filter Arguments
  13. 12Ping
    1. 12.1 General Description
    2. 12.2 Start and Stop Ping
    3. 12.3 Limitations
  14. 13Transceiver
    1. 13.1 Introduction
    2. 13.2 Key Features
    3. 13.3 Configurations and Setting
      1. 13.3.1 Open Transceiver Socket
      2. 13.3.2 Close Transceiver Socket
      3. 13.3.3 Send Data
      4. 13.3.4 Receive Data
    4. 13.4 Internal Packet Generator
    5. 13.5 CW
    6. 13.6 Changing Socket Properties
      1. 13.6.1 Change Operating Channel
      2. 13.6.2 Change Default PHY Data Rate
      3. 13.6.3 Change Tx Power
      4. 13.6.4 Change Number of Frames to Transmit (Internal Packet Generator)
      5. 13.6.5 Change 802.11b Preamble
      6. 13.6.6 Set CCA Threshold
      7. 13.6.7 Set Tx Frames Time-out
      8. 13.6.8 Enable or Disable Sending ACKs
    7. 13.7 Limitations
  15. 14Real-Time RSSI
    1. 14.1 Introduction
    2. 14.2 Data Structure
    3. 14.3 Configurations and Settings
      1. 14.3.1 Connect to an AP
      2. 14.3.2 Opening Real-Time RSSI Socket
      3. 14.3.3 Example Code
    4. 14.4 Constraints
  16. 15Power Management
    1. 15.1 Introduction
      1. 15.1.1 Key Features
      2. 15.1.2 LPDS
      3. 15.1.3 802.11 Power Save
        1. 15.1.3.1 LSI (Long Sleep Interval)
      4. 15.1.4 WFA IoT Low Power
      5. 15.1.5 Low Power versus Latency
      6. 15.1.6 Power Modes versus Device Modes
    2. 15.2 Configurations and Settings
      1. 15.2.1 Changing Power Policy
      2. 15.2.2 Enabling Fast Connect
    3. 15.3 Network Applications and Power Consumption
      1. 15.3.1 mDNS
      2. 15.3.2 HTTP Server
    4. 15.4 Design Guidelines
      1. 15.4.1 LSI and Packet Loss
      2. 15.4.2 PHY Calibration Mode
  17. 16Provisioning
    1. 16.1  Introduction
    2. 16.2  Key Features
    3. 16.3  Provisioning Process Overview
      1. 16.3.1 Configuring a Profile
      2. 16.3.2 Confirming a Profile
    4. 16.4  Host Provisioning Application Flow
    5. 16.5  Configuration Modes
      1. 16.5.1 AP Provisioning
      2. 16.5.2 SC Provisioning
      3. 16.5.3 AP and SC Provisioning
      4. 16.5.4 AP and SC and External Configuration Provisioning
    6. 16.6  Starting and Stopping the Provisioning Process
    7. 16.7  Auto-Provisioning
    8. 16.8  Delivering Feedback to the User
      1. 16.8.1 External Confirmation
    9. 16.9  External Configuration
    10. 16.10 Common Events and Errors
      1. 16.10.1 Provisioning Status Event
      2. 16.10.2 Provisioning Profile-Added Event
      3. 16.10.3 Reset Request Event
      4. 16.10.4 Errors
      5. 16.10.5 Host Commands During Provisioning
    11. 16.11 Usage Examples
      1. 16.11.1 Successful SmartConfig Provisioning
      2. 16.11.2 Unsuccessful SmartConfig Provisioning
      3. 16.11.3 Successful SmartConfig Provisioning With AP Fallback
      4. 16.11.4 Successful AP Provisioning
      5. 16.11.5 Successful AP Provisioning With Cloud Confirmation
      6. 16.11.6 Using External Configuration Method: WAC
      7. 16.11.7 Successful SmartConfig Provisioning While External Configuration Enabled
  18. 17Crypto Utilities
    1. 17.1 Introduction
      1. 17.1.1 API and Usage
        1. 17.1.1.1 Install and Uninstall Key-Pairs and Certificates
        2. 17.1.1.2 Create or Remove Temporary Key
        3. 17.1.1.3 Get Public Key
        4. 17.1.1.4 Certificate Creation
        5. 17.1.1.5 Sign Buffer
        6. 17.1.1.6 Verify Buffer
        7. 17.1.1.7 True Random Number
      2. 17.1.2 Limitations and Constraints
      3. 17.1.3 Errors
    2. 17.2 Secured Content Delivery
      1. 17.2.1 SimpleLink Wi-Fi Side Process Flow
      2. 17.2.2 Encrypted File Format
  19. 18Hostless Mode
    1. 18.1 Introduction
    2. 18.2 Script Overview
    3. 18.3 Conditions
      1. 18.3.1 Pre-Initialization
      2. 18.3.2 System Event
      3. 18.3.3 Timer Expiration
      4. 18.3.4 Counter Threshold
      5. 18.3.5 Internal Errors
    4. 18.4 Sub-Conditions
    5. 18.5 Actions
      1. 18.5.1 Pre-Initialization Actions
        1. 18.5.1.1 Set Role
        2. 18.5.1.2 Delete All Profiles
        3. 18.5.1.3 Hardware GPIO
      2. 18.5.2 Run-Time Actions
        1. 18.5.2.1 Send Transceiver Packet
        2. 18.5.2.2 Send UDP Packet
        3. 18.5.2.3 Send TCP Packet
        4. 18.5.2.4 Set/Increment Counter
        5. 18.5.2.5 Timer Control
        6. 18.5.2.6 Set GPIO
        7. 18.5.2.7 Enter Hibernate
  20. 19Porting the Host Driver
    1. 19.1 Introduction
    2. 19.2 Create Platform Porting File
    3. 19.3 Select Capabilities Set
    4. 19.4 Bind the Device Enable/Disable Line
    5. 19.5 Implement the Interface Communication Abstract Layer
    6. 19.6 Choose Memory-Management Model
    7. 19.7 Implement OS Adaptation Layer
      1. 19.7.1 Sync Objects
      2. 19.7.2 Locking Objects
    8. 19.8 Implement Timestamp Services
    9. 19.9 Set Asynchronous Event Handler Routines
  21. 20Debug
    1. 20.1 Capture NWP Logs
      1. 20.1.1 Overview
      2. 20.1.2 Instructions
        1. 20.1.2.1 Configuring Pin Mux for CC32xx
        2. 20.1.2.2 Terminal Settings
        3. 20.1.2.3 Run Your Program
        4. 20.1.2.4 Send to TI Engineer
          1.        A Host APIs
            1.         A.1 Host APIs
              1.          B Persistency
                1.           B.1 Persistency
                  1.            C Regulatory Domain
                    1.             C.1 Regulatory Domain
                      1.              D Supported Host Interfaces
                        1.               D.1 SPI Host Interface
                          1.                D.1.1 Introduction
                          2.                D.1.2 Abbreviations
                          3.                D.1.3 SPI Modes
                          4.                D.1.4 SPI Configurations (Shared SPI)
                          5.                D.1.5 SPI Initialization
                          6.                D.1.6 Host Interface Protocol - SPI Perspective
                        2.               D.2 UART Host Interface
                          1.                D.2.1 Introduction
                          2.                D.2.2 Host Low Power Modes
                          3.                D.2.3 UART Host Topologies
                            1.                 D.2.3.1 5-Wire UART Topology
                            2.                 D.2.3.2 4-Wire UART Topology
                            3.                 D.2.3.3 3-Wire UART Topology
                          4.                D.2.4 UART Configuration
                          5.                D.2.5 UART Initialization
                            1.                 D.2.5.1 Changing the UART Baud Rate
                          6.                D.2.6 Implementing the UART Driver - Concept and Terminology
                            1.                 D.2.6.1 UART Read API Implementation
                            2.                 D.2.6.2 UART Write API Implementation
                          7.                D.2.7 Register/Unregister Interrupt Handler API Implementation
                          8.                D.2.8 Host Interface Protocol – UART Perspective
                            1.                 D.2.8.1 UART Host Command Flow
                            2.                 D.2.8.2 Synchronization Words
                              1.                  Revision History
  22. IMPORTANT NOTICE
search No matches found.
  • Full reading width
    • Full reading width
    • Comfortable reading width
    • Expanded reading width
  • Card for each section
  • Card with all content



USER'S GUIDE

SimpleLink™ Wi-Fi® CC3x20, CC3x3x Network Processor

1 Overview

The CC3x20, CC3x35, and CC3x30 devices are part of the SimpleLink™ microcontroller (MCU) platform which consists of Wi-Fi®, Bluetooth® low energy, Sub-1 GHz and host MCUs, which all share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink™ platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 percent code reuse when your design requirements change. For more information, visit www.ti.com/simplelink.

The SimpleLink™ Wi-Fi®Internet-on-a chip™ family of devices from Texas Instruments™ provides a suite of integrated protocols for Wi-Fi® and Internet connectivity to dramatically simplify the implementation of Internet-enabled devices and applications.

This document provides software (SW) programmers with all of the required knowledge for working with the networking subsystem of the SimpleLink™ Wi-Fi® devices. This guide provides basic guidelines for writing robust, optimized networking host applications, and describes the capabilities of the networking subsystem. The guide contains some example code snapshots to give users an idea of how to work with the host driver. More comprehensive code examples can be found in the formal software development kit (SDK). This guide does not provide a detailed description of the host driver APIs.

1.1 Trademarks

SimpleLink, Internet-on-a chip, Texas Instruments, SmartConfig, and are trademarks of Texas Instruments Incorporated.

Wi-Fi and Wi-Fi Direct are registered trademarks of Wi-Fi Alliance.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Arm and Cortex are registered trademarks of Arm Limited.

Google is a registered trademark of Google, Inc.

All other trademarks are the property of their respective owners.

1 Introduction

This chapter gives a brief introduction to the networking subsystem, lists the key features of the device, and provides an overview of the host driver.

The SimpleLink™ Wi-Fi® family of devices consist on two types of devices: wireless MCU devices with a built-in network processor, and network processor standalone devices.

The SimpleLink™ Wi-Fi® CC31xx wireless network processor allows the connection of any low-cost, low-power microcontroller (MCU) to the Internet of Things (IoT), using standard communication interfaces such as SPI or UART. The scope of this document covers the following part numbers belonging to this type: CC3120, CC3130, and CC3135.

The SimpleLink™ Wi-Fi® CC32xx is a wireless MCU with an integrated high-performance Arm®Cortex®-M4 MCU, built-in Wi-Fi®, and a networking subsystem, allowing developers to write an entire application with a single-chip solution. The scope of this document covers the following part numbers belonging to this type: CC3220R, CC3220S, CC3220SF, CC3235S, CC3235SF, CC3230S, and CC3230SF.

1.1 Features

The SimpleLink™ Wi-Fi®Internet-on-a chip™ family of devices introduces some advanced features and capabilities that further simplify connectivity of devices to the Internet:

  • Support for IPv4 and IPv6
  • Dual-band Wi-Fi® 2.4 GHz / 5 GHz
  • Improved power consumption, with support for WFA IoT Low Power
  • Integrated network applications such as HTTPS server
  • File system security capabilities
  • Wi-Fi® access point (AP) with support for up to four stations
  • BLE / 2.4 GHz radio Coexistence
  • Antenna diversity
  • FIPS 140-2 level 1, compliant (For specific FIPS certification status, refer to https://csrc.nist.gov/projects/cryptographic-module-validation-program/validated-modules.)
  • Real-time RSSI data
  • Hostless mode
  • RSSI Trigger
  • Soft Roaming
  • Integrated TLS stack with support for OCSP (Online Certificate Status Protocol)

1.2 Key Features

Table 2-1 lists the key features of the SimpleLink™ Wi-Fi® device family.

Table 1-1 Key Features
Feature Description CC3120/CC3220 CC3135/CC3235 CC3130/CC3230
Wi-Fi standards 802.11b/g/n station + + +
802.11b/g access point with support for up to four stations + + +
Wi-Fi Direct client / group owner + + +
802.11a +
WFA IOT Low Power + +
Wi-Fi channels 1–13 + + +
36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,149,153,157,161,165 +
Personal and Enterprise Wi-Fi security WEP, WPA/WPA2 PSK + + +
WPA2+PMF, WPA3 + +
WPA2 Enterprise (802.1x) + + +
Wi-Fi provisioning SmartConfig™ technology + + +
Wi-Fi Protected Setup (WPS2) + + +
Access point mode with internal HTTP web server + + +
IP protocols IPv4/IPv6 + + +
IP addressing Static IP, LLA, DHCPv4, DHCPv6 with DAD + + +
Cross layer ARP, ICMPv4, IGMP, ICMPv6, MLD, NDP + + +
Transport UDP, TCP + + +
SSLv3.0/TLSv1.0/TLSv1.1/TLSv1.2 6 16 16
RAW + + +
Network applications and utilities Ping + + +
HTTP/HTTPS web server (including dynamic user call backs and RESTful API support) + + +
mDNS + + +
DNS-SD + + +
DHCP server + + +
OCSP TLS extension + +
Host interface UART/SPI + + +
Security Secure key storage + + +
Trusted root-certificate catalog + + +
TI root-of-trust public key + + +
File system security + + +
Secure boot + + +
Secure content delivery + + +
Initial secure programming + + +
Debug security + + +
Software tamper detection + + +
Cloning protection + + +
FIPS 140-2 level 1, compliant +
Power management Enhanced power policy management uses 802.11 power save, and deep-sleep power modes + + +
Other Transceiver + + +
Programmable Rx filters with events trigger mechanism + + +
RSSI Trigger + + +
Hostless mode + +
Soft Roaming + +
Agile multiband + +
Triggered roaming + +
Real time RSSI + +
BLE / 2.4-GHz radio Coexistence + +

1.3 Block Diagram

Figure 2-1 shows a block diagram of the SimpleLink™ Wi-Fi® solution at a high level.

GUID-858EB51D-F49B-4A22-8099-3ADA93CC8B88-low.gifFigure 1-1 SimpleLink™ Wi-Fi® Solution Block Diagram

In the CC32xx wireless MCU the host is a Cortex®-M4 core, the networking subsystem is built into the device as an additional peripheral, and the interface between the Cortex®-M4 Core and the networking subsystem is internal.

The host driver is the same for the CC31xx and CC32xx devices, and the networking capabilities are similar for both devices. The network stack is fully implemented in the networking subsystem, thereby offloading the networking activities from the host MCU.

A simple application that only sends a UDP datagram on the local network requires minimum APIs as follows:

sl_Start      Start the SimpleLink device in Wi-Fi Station mode
sl_WlanConnectConnect to a Wi-Fi network
sl_Socket     Create a socket
sl_SendTo     Sends UDP data
sl_Close      Close the socket
sl_Stop   Stops the SimpleLink device
Note:

The target application can choose to use the preferred networks option (profiles) instead of using the sl_WlanConnect command. This option allows the host application to completely offload the entire management of the WLAN connection.

Figure 2-2 shows a more detailed block diagram of the networking subsystem.

GUID-B08CC33C-C937-4BB7-A96D-C1BD01DADDA3-low.gifFigure 1-2 Networking Subsystem Block Diagram

1.4 Host Driver Overview

The SimpleLink™ Wi-Fi® Internet-on-a chip devices provide comprehensive networking functionality that offloads networking activities from the host MCU. TI provides a user-friendly host-software driver to simplify the integration and development of networking applications using the SimpleLink™ Wi-Fi® devices. This host driver can easily be ported to most platforms and operating systems (OSs). The host driver is written in strict ANSI-C (C89) and requires a minimal platform adaptation layer (porting layer).

The driver has a small memory footprint, and can run on 8-bit, 16-bit, or 32-bit MCUs with any clock speed (no performance or real-time dependency). Using SPI, both big- and little-endian MCUs are seamlessly supported. With UART, only little endian is supported.

The APIs of the SimpleLink™ host driver are arranged in several logical and simple modules (silos).

Table 2-2 provides a high-level description of these silos.

Table 1-2 Software Modules of the Host Driver
SiloDescription
DeviceProvides interface to hardware and general functionality, such as start/stop or set and get configurations in the device level
WLANProvides interface to WLAN 802.11 protocol-related functionality, such as mode (station, access point, or Wi-Fi Direct), provisioning, connection profiles, and connection policy
SocketProvides interface to sockets and adheres to BSD sockets. BSD sockets are the most common interface today for internet connectivity.
NetAppProvides interface to several networking services including the HTTP server service, DHCP server service, and MDNS client\server service
NetCfgProvides interface to configure different networking parameters, such as setting the MAC address and IP address settings (DHCP/Static)
NetUtilProvides interface to several network utilities, such as crypto utility, which provides a method for authenticating the device
FSProvides interface for storing and reading files through a secure file system managed on the serial flash component

1.4.1 Host Interface

The SimpleLink™ device supports two physical host interfaces: SPI and UART. The same host driver can work with each of these interfaces by using an interface driver adaptation layer.

More information on the adaptation layer is in the host interface section, see Section 4 and Section 20.

1.4.2 OS versus Non-OS

The same driver can work on platforms running an OS, and platforms without an operating system (non-OS).

An OS adaptation layer is used for binding the host driver and the target OS. The driver already comes with a built-in adaptation layer for platforms running without an OS. Other platforms require a simple OS adaptation layer.

This adaptation layer must wrap two major objects:

  • Sync object – Object intended to synchronize between different contexts and interrupt routines
  • Lock object – Object intended to protect a shared resource

The driver pre-allocates all the required OS resources (dynamic or static according to the setting) on calling sl_Start. The number of allocated objects is calculated according to the maximum concurrent actions required by the user.

The SimpleLink™ host driver does not use its own processing context. To bind a context to the driver, the user can implement a spawn mechanism, or use the built-in spawn mechanism provided by the driver. If the built-in mechanism is used, the host application must create a context dedicated to the driver and call sl_Task from this context. For platforms without an OS, the application must call the sl_Task function repeatedly from its main loop.
