APPLICATION NOTE

433 to 930-MHz and 2.4-GHz BOM Tunable PCB Antenna

Trademarks

All trademarks are the property of their respective owners.

Acronyms

AcronymDefinition
AUTAntenna Under Test
BOMBill Of Materials
BWBandwidth
CFCorrection Factor
CITACellular Telecommunications Industry Association
DKDevelopment Kit

DNM

Do Not Mount

EBEvaluation Board
EIRPEffective Isotropic Radiated Power
EMEvaluation Module
ISMIndustrial, Scientific, Medical
NCNot Connected
NHPRPNear Horizon Partial Radiated Power
NHPRP45Near Horizon Partial Radiated Power within 45 degrees angle
OTAOver The Air
PCBPrinted Circuit Board
RFRadio Frequency
SWRStanding Wave Ratio
TRPTotal Radiated Power
VNAVector Network Analyzer

1 Description of the PCB Antenna

The antenna described in this document is a PCB meander monopole that users can configure by changing the BOM to operate as a single-band antenna or dual-band antenna. The resonance is set by the antenna PCB trace element and the antenna matching components. This allows the antenna to cover a wideband range with one antenna pattern design. The impedance of this antenna depends on the mode used. Referring to Figure 1-1, if the length of L4 is kept as shown, this is beneficial for operation around 433–510 MHz. If L4 is shortened to half the length (19.0 mm), this is beneficial when operating at 868–930 MHz.

The antenna layout is positioned on the top and bottom layer of the board as can be seen in Figure 1-1; this enables a lower resistive loss and gives a slightly wider bandwidth compared to a single-sided layout solution. With a single-sided layout; the area underneath the antenna can not be used for any other routing so it is more useful to utilize this area to optimize the antenna’s performance.

1.1 Implementation of the PCB Meander Monopole Antenna

To obtain optimum performance, it is important to make an exact copy of the antenna dimensions. The antenna was implemented on a 1.6-mm thick FR4 substrate. Since there is no ground plane beneath the antenna, the PCB thickness is not critical. If a different thickness is used then it could be necessary to change the matching network to obtain optimum performance.

One approach to implement the antenna in a PCB CAD tool is to import the antenna layout from a Gerber file. Refer to files included in the LAUNCHXL-CC1352P-4 Reference Design.

If the antenna is implemented on a PCB that is wider than the antenna it is important to avoid placing components or having a ground plane close to each side of the antenna. If the CAD tool being used does not support import of Gerber files, Figure 1-1 and Table 1-1 can be used.

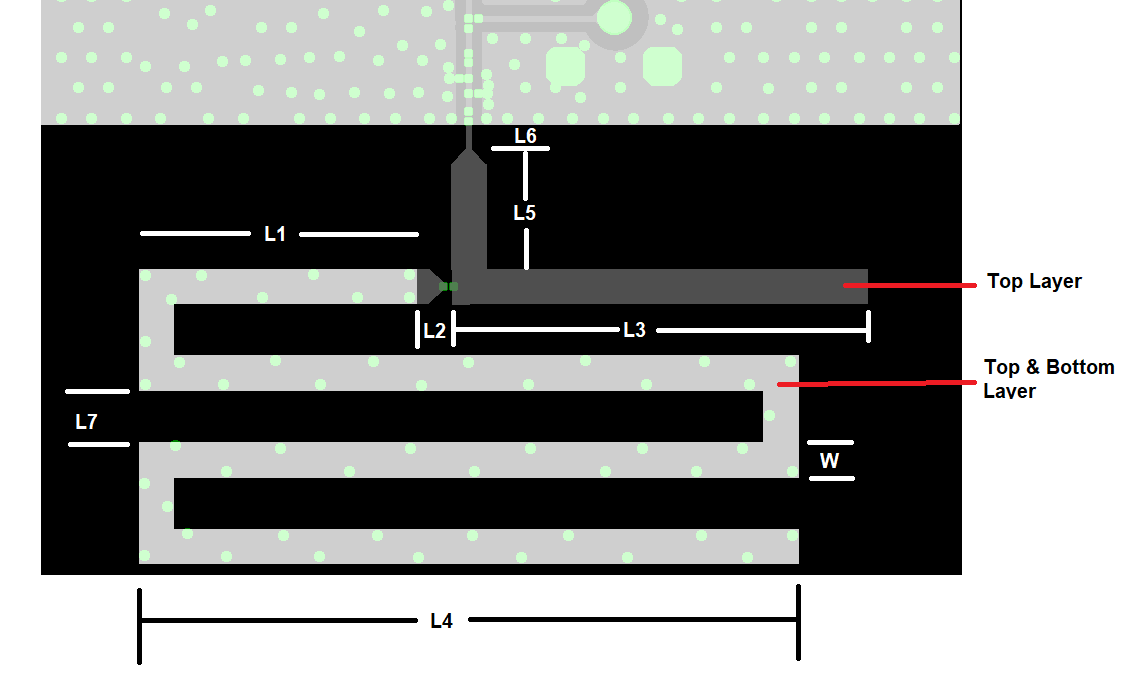

GUID-20220119-SS0I-VSNC-4CBZ-DH6GKGGVTNCW-low.pngFigure 1-1 LAUNCHXL-CC1352P-4
Table 1-1 Antenna Dimensions
L116.0 mmL5

7.0 mm

L22.0 mmL6

1.4 mm

L324.0 mmL73.0 mm
L438.0 mmW2.0 mm

The last antenna segment's optimum length will always be dependent on the geometry of the ground plane. For ground plane sizes smaller than the LAUNCHXL-CC1352P-4 (less than a quarterwave), the optimum length of the last segment could be increased or the antenna match re-calculated for the new ground plane size.
