EVM User's Guide

SimpleLink CC33X1MOD Wi-Fi 6 and Bluetooth Low Energy BoosterPack Plug-In Module (BP-CC33X1MOD)

Description

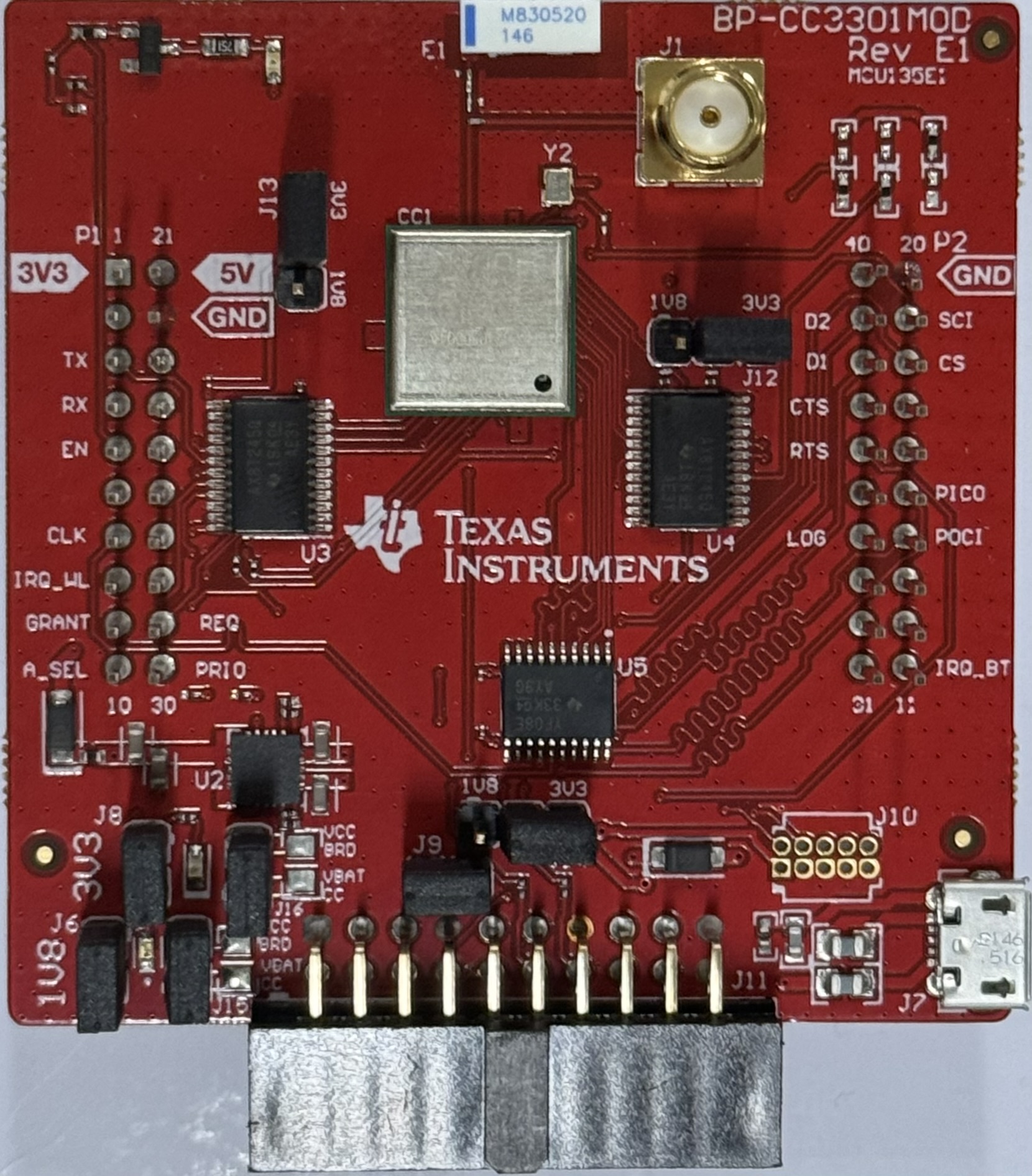

The SimpleLink™ CC3301MOD Wi-Fi 6 and Bluetooth® Low Energy devices enable affordable, reliable, and secure connectivity in embedded applications with a processor host running Linux® or an MCU host running RTOS. The CC3301MOD BoosterPack™ plug-in module (BP-CC3301MOD) is a test and development board that can be easily connected to TI LaunchPad™ development kits or processor boards; thus, enabling rapid software development.

Features

  • CC3301MOD Wi-Fi 6® and Bluetooth Low Energy combo device
  • Two 20-pin stackable connectors (BoosterPack Standard)
  • Onboard chip dual-band antenna
  • SMA/U.FL connector for conducted RF testing
  • Power from onboard dual rail (3.3V and 1.8V) LDO using USB or LaunchPad™
  • Three-level shifters for voltage translation (3.3V to 1.8V)
  • JTAG header pins for SWD interface with XDS110 or LP-XDS110ET
  • Jumper for current measurement on both power supplies (3.3V and 1.8V) with provision to mount 0.1-ohm (0603) resistors for measurement with a voltmeter
  • 32kHz oscillator for lower power evaluation
CC3301MOD


Texas Instruments
