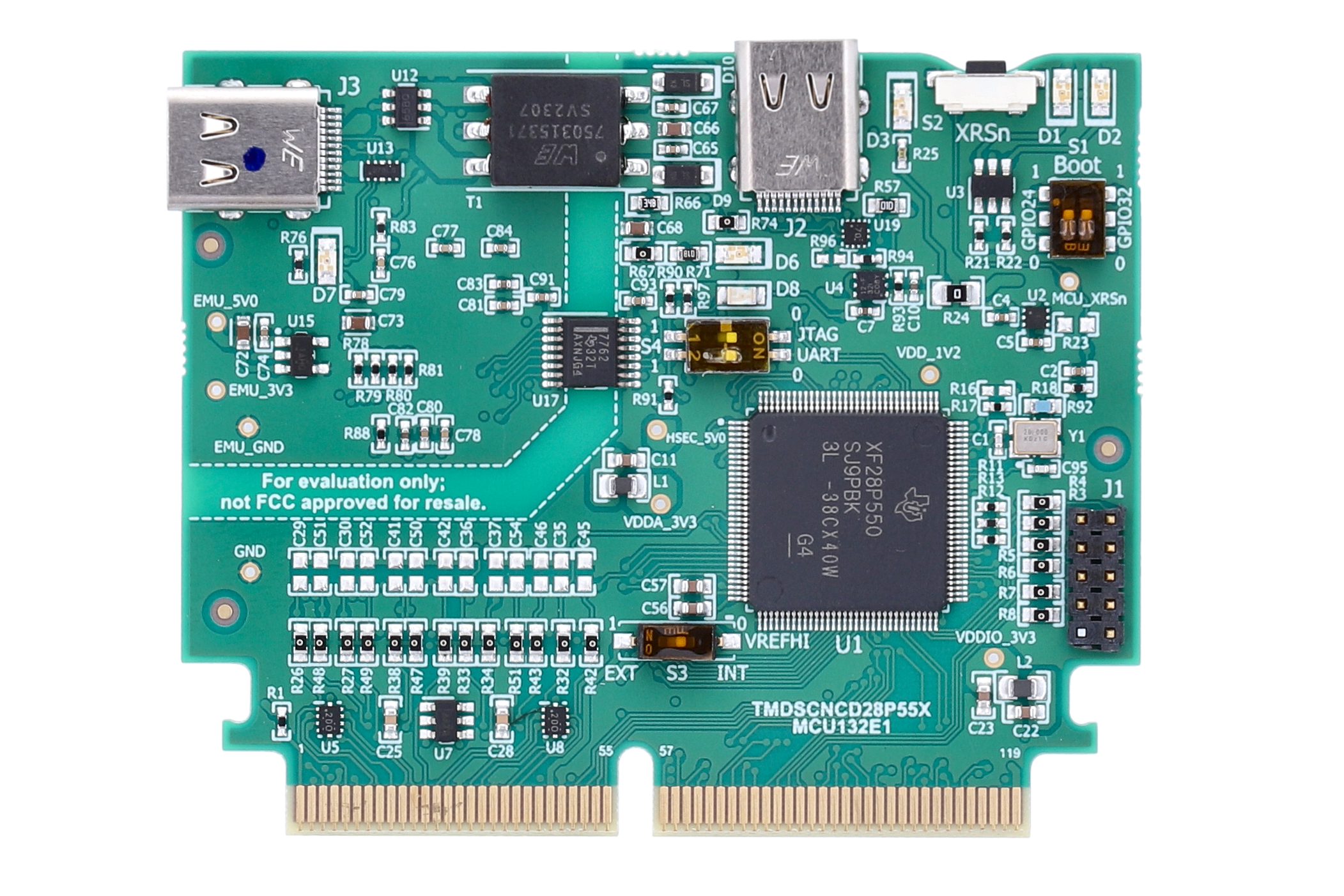

The TMDSCNCD28P55X is a low-cost evaluation and development board for TI C2000™ MCU series of F28P55x devices. The TMDSCNCD28P55X comes with a HSEC180 (180-pin High speed edge connector) and, as a controlCARD, is an excellent choice for initial evaluation and prototyping. For evaluation of TMDSCNCD28P55X, a 180-pin docking station TMDSHSECDOCK is required and can be purchased separately or as a bundled kit.

• F28P55X Microcontroller – High performance C2000 microcontroller is located on the controlCARD.
• 120-pin HSEC8 Edge Card Interface – Allows for compatibility with all of C2000 180-pin controlCARD-based application kits and controlCARDs. Compatibility with 100-pin controlCARDs can be accomplished using the TMDSADAP180TO100 adapter card.
• Built-in Isolated JTAG Emulation – An XDS110 emulator provides a convenient interface to Code Composer Studio™ IDE without additional hardware. Flipping a switch allows an external JTAG emulator to be used.
• Built-in Isolated Power Supply - Passes the 5V supply from the USB-C connector through an isolation barrier. Allows for the controlCARD to be completely powered and operated from the USB-C connector. The F28P55X is fully isolated from the USB port.
• Automatic Power Supply Switch - The controlCARD automatically switches to external 5V power when present.
• Connectivity – The controlCARD contains connectors that allow the user to experiment with isolated UART/SCI with the F28P55x MCU.
• Key Signal Breakout – Most GPIO, analog-to-digital converter (ADC) and other key signals routed to hard gold connector fingers.
• Robust Power Supply Filtering – Single 5V input supply powers an on-card 3.3V LDO. All MCU inputs are then decoupled using LC filters.
• ADC Protection/Filtering – ADC inputs are clamped by protection diodes and noise filters can be easily added.
