1 Introduction

The AM65x IDK is a standalone test, development, and evaluation module (EVM) system that lets developers write software and develop hardware for industrial communication-type applications. The IDK is equipped with AM6548 processor from TI and a defined set of features to let the user experience industrial communication solutions using serial, Ethernet-based, PCIe, and many other interfaces. Using standard interfaces, the IDK can communicate with other processors or systems, and act as a communication gateway. In addition, the IDK can directly operate as a standard remote I/O system or simple sensor connected to an industrial communication network. The embedded emulation logic allows for emulation and debugging using standard development tools such as Code Composer Studio™, from TI, by using the supplied USB cable.

1.1 Key Features

The AM65x IDK is a high performance, standalone development platform that enables users to evaluate and develop industrial applications for the Texas Instrument’s K3 System-on-Chip (SoC). The AM65x IDK supports the following key features:

  • Based on the K3 architecture with Arm
  • 4-GB DDR4 supporting data rate up to 1600 MT/s
  • 16-GB eMMC Flash
  • Full size SD card, up to 64-GB density with UHS-1 support (8-GB UHS-1 card supplied with the kit)
  • 128-Mbit SPI EEPROM
  • 512-Mbit OSPI EEPROM
  • 256-Kbit I2C Boot EEPROM
  • 3× PRU-ICSSG, supporting multi-protocol industrial Gigabit Ethernet with up to 6 ports
  • 1x MCU Gigabit Ethernet port
  • One USB2.0 interface port with Micro AB connector
  • CSI-2 connector to interface camera card
  • I-PEX EVAFLEX5-VS connector to interface with the LCD adapter card
  • GPMC/DSS interface expansion connector
  • Application board expansion connector
  • SERDES expansion connector to interface two lane PCIe Personality card
  • XDS110 on-board emulator
  • Quad port UART to USB circuit over microB USB connector
  • Expansion headers:
    • Two UART
    • One SPI
    • One I2C
    • Four timer signals
  • Boot mode selection using DIP switches
  • Two push buttons to generate interrupts
  • Industrial Ethernet LEDs
  • Rotary switch input
  • Two CAN interface terminated to DB-9 connector
  • Digital serializer for processing wide range inputs from industrial I/O connector
  • Profibus UART transceiver terminated with DB9 connector
  • DC Input: 11 V to 28 V
  • Status output: LEDs to indicate power status
  • INA devices for current monitoring
  • Over- and under-voltage protection circuit
  • RoHS-compliant design

Featured applications:

  • Industrial Drives
  • Industrial Sensors
  • Factory Automation and Control

2 AM65x IDK Overview

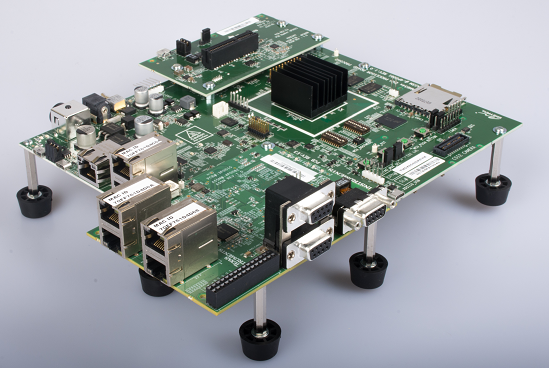

GUID-954D2BD6-2AFB-45FB-A3F1-AC9575C23D9D-low.pngFigure 2-1 System Assembly Image

Figure 2-2 shows the overall architecture of AM65x IDK.

GUID-FF72D00B-8DC7-4F65-8FB4-9821C159B63F-low.pngFigure 2-2 System Architecture Interface

The AM65x IDK consists of a common processor board, IDK application board, and a two-lane PCIe personality card. Detailed descriptions of these cards are explained in the following sections.

3 Common Processor Board

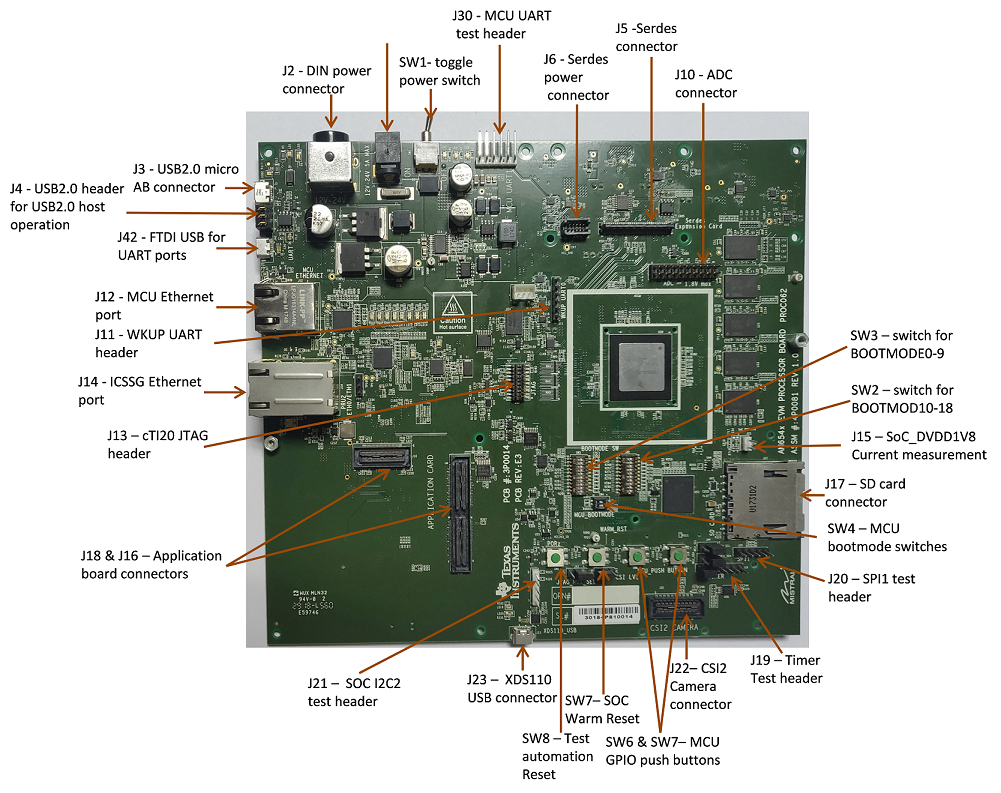

GUID-D8B973CE-8BEE-4BD2-867F-5A3EB8EB4A43-low.pngFigure 3-1 Top View of the Common Processor Board

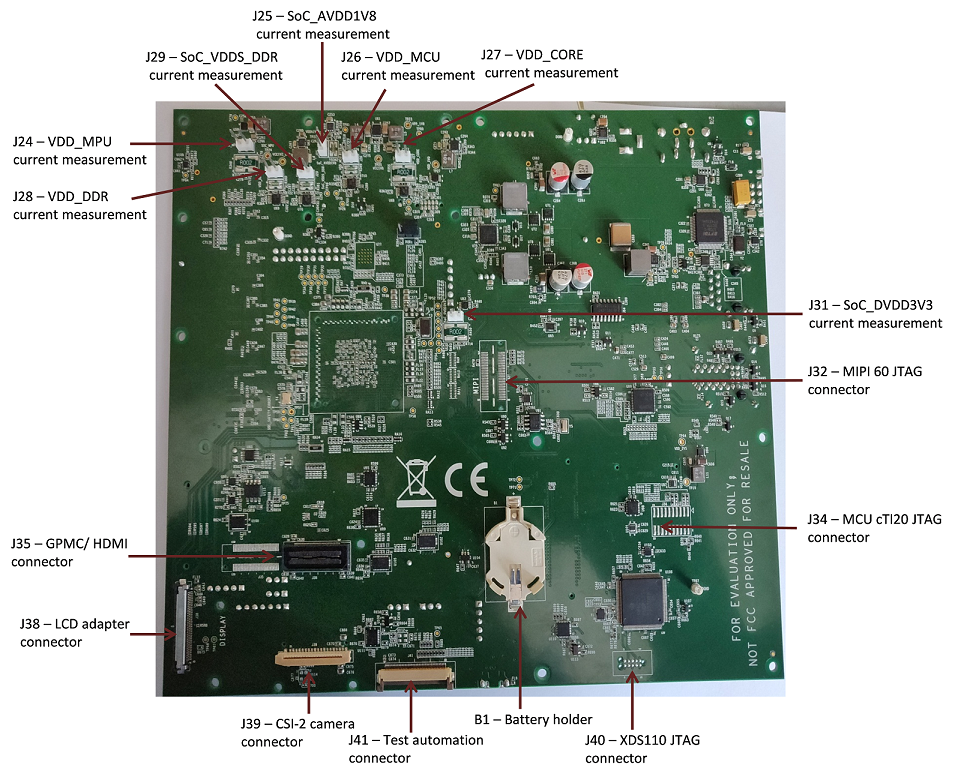

GUID-84C4F8D2-1E31-4B98-8DDD-21F60F4254F1-low.pngFigure 3-2 Bottom View of the Common Processor Board
