Design Goals

Design Description

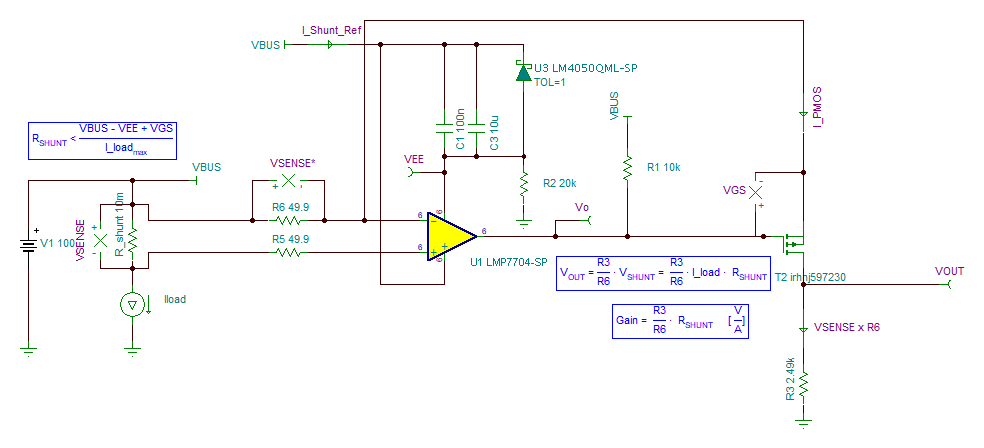

To measure the current in power system health monitoring systems, a shunt resistor is placed either at the high side or the low side of the load. However, placing it at the low side could disturb the load ground. Measuring current at the high side is more preferable in most applications. The following figure shows a high-side current sensing circuit with power supply equal to 100 V and load current varying from 1 A to 10 A. The output of this circuit ranges from 0.5 V to 5 V.

Design Notes

• The Vos of the op amp dominates the error when the load current is low. The tolerance of the shunt resistor dominates the error when the load current is high.
• Increasing R3, R5, and R6 values decreases PMOS power consumption but decreases output (V_OUT) range.
• R2 dominates the power consumption in the system

Design Steps

• Circuit Specification
  • Load power supply (V_bus): 100 V
  • Load current (IS1): 1 A to 10 A
  • Output voltage (V_out): 0.5 V to 5 V

• Op Amp Selection

  • The Op-amp common mode voltage (Vcm) needs to be equal to or greater than the bus voltage (V_bus)

  • To minimize DC error, an op amp with small offset voltage, offset drift, bias current, and larger CMRR and PSRR are preferred
  • Since both input voltages of the op amp are close to V_bus, the maximum common-mode voltage range (CMVR) of the op amp must be equal to or greater than the positive power supply V₊ of the op amp
  • The LMP7704-SP is selected in this application. This device supports rail to rail input. It has a typical offset voltage of 60 μV, offset drift of 1 μV/°C, bias current of 1 pA, and CMRR of 130 dB. It also has rail-to-rail input and output.

• Shunt Resistor Selection
  • Consideration:
    1. Increasing the shunt resistor value could reduce error but increase power consumption and reduce load supply voltage
    2. To select a shunt resistor value, the CSM3637 series shunt resistor (data sheet is referenced in the Design References section) is selected to run a simulation in MATLAB®. The tolerance and temperature coefficient of this series of shunt resistors could be down to 0.1% and 10 ppm/°C. Error Calculation shows all equations used for calculating the output error in MATLAB.

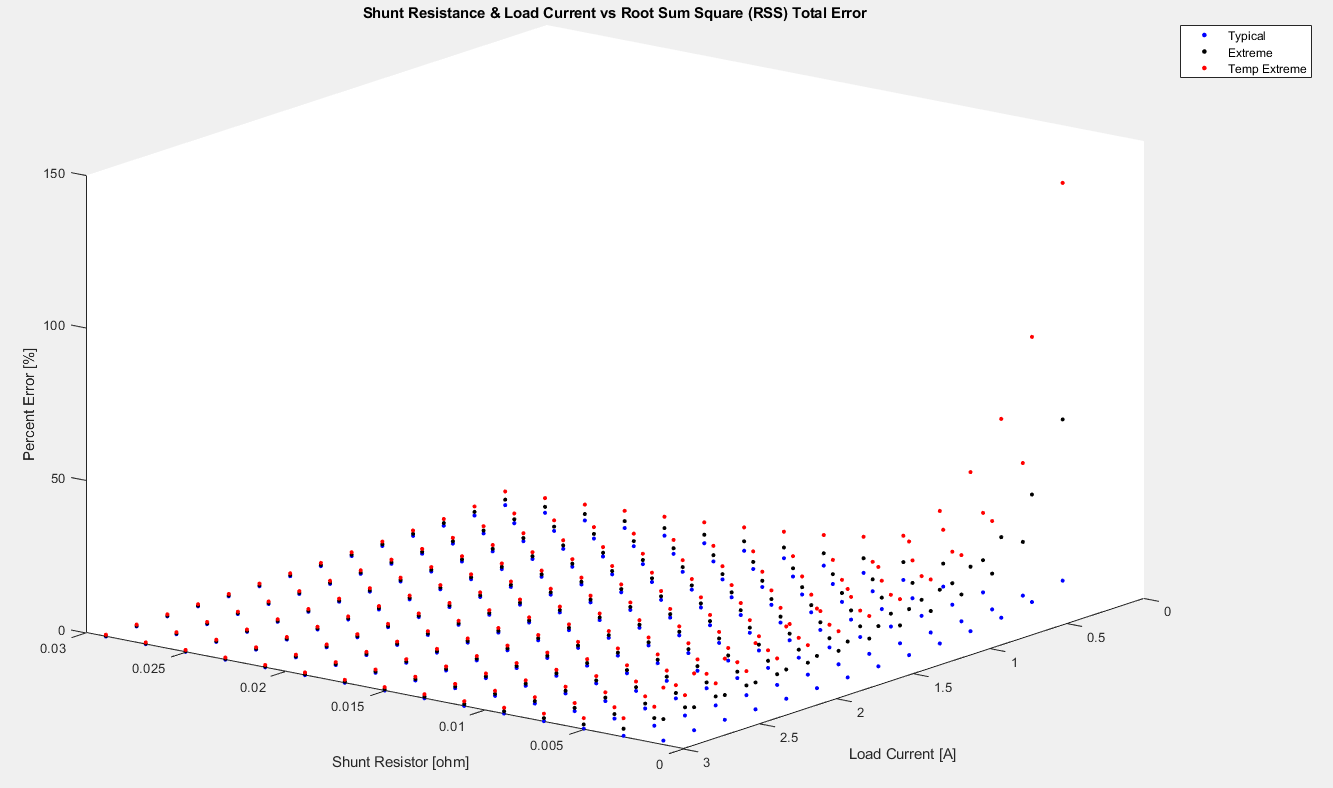

       As shown in the previous image, the shunt resistor (R_shunt) and load current (I_load) are used as the inputs for calculating the output percent error. The result shows that the output percent error increases as I_load decreases or R_shunt decreases. Hence, the load current is set to its minimum value (1 A) when picking the R_shunt value to satisfy the minimum requirement in the specification.

       In the following curve, to obtain a root sum square (RSS) error less than 0.7%, a 10-mΩ shunt resistor is selected. Even though increasing R_shunt could further increase accuracy, it also increases power dissipation. The part number of the 10-mΩ CSM series shunt resistor selected is Y14870R00100B9W. The resistor has a power rating up to 3 W. With a derating factor of 0.6 (based on EEE-INST-002), the designed shunt resistor power should be less than 1.8 W. With a maximum load current designed to be 10 A, the maximum power consumed by R_shunt is 1 W, which satisfies the requirement.


  • Load voltage supply calculation:


    According to the previous equation, with the 10-mΩ (R_shunt) selected, V_load drops from 100 V to 99.9 V.

  • Shunt resistor self-heating:

    With the derating curve found in the shunt resistor data sheet, the self-heating coefficient (θ_SH) and shunt resistor temperature change (ΔT) are calculated using the following equations.

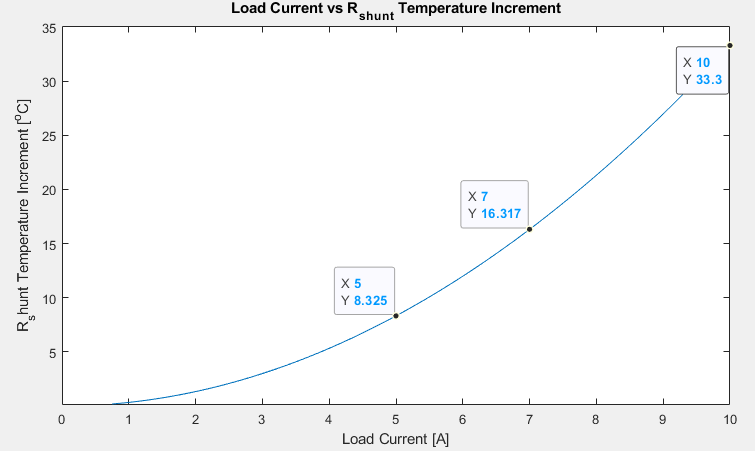

    Plugging the previous equations into the MATLAB tool, the relationship between the load current and temperature change is plotted in the following image. From the curve, the shunt resistor temperature is approximately 33.3°C higher than the surrounding temperature with a full load current of 10 A.



• R₅, R₆, and R₃ Selection
  • R₆ and R₃ calculation


    Based on the previous equations, to obtain a V_out range from 0 V to 5 V, with R_shunt equal to 10 mΩ, the ratio of R₃ to R₆ is calculated to be 50. There are 2 aspects to consider when picking values for R₅, R₆, and R₃:

  1. To minimize the effect of op amp bias current, R₅ is chosen to be the same as R₆.
  2. Increasing R₃ and R₆ could reduce power consumption but increase minimum V_out due to the effect of Zero Gate Voltage Drain Current (I_DSS) of the PMOS.

  R₆ is set to be 49.9 Ω, and R₃ is determined to be 2.49 kΩ for the rest of the calculation. In this application, the Vishay® foil resistor models 303133 to 303138 are selected as a reference for simulation and error calculations. (See the Design References section.)

• PMOS Selection
  1. The absolute value of the threshold voltage |V_th| of the PMOS needs to be small enough for the op amp to turn the PMOS gate on and off.
  2. The Zero Gate Voltage Drain Current (I_DSS) of the PMOS defines the leakage current when the gate voltage is equal to V_bus. I_DSS sets the lower V_out range.
  3. The PMOS gate capacitance could affect stability if wire resistance from the op amp output (V_o) to the gate is too large. This capacitance adds a zero in the 1/ꞵ curves. If the zero is located on the left of the point where 1/ꞵ and Aol intercept, the phase margin decreases. Hence, a small gate capacitance is preferred.
  4. Based on military standards, the drain-to-source breakdown voltage must be two times larger than the V_bus, a minimum of 200-V breakdown voltage is required.
  PMOS Comparison

  Parameter	IRF9230	IRHE9230	IRHN9250	IRHNJ597230
  D-S Breakdown [V]	–200	–200	–200	–200
  Vgs [V]	–2 to –4	–2 to –4	–2 to –4	–2 to –4
  Zero Gate Voltage Drain Current [μA]	–25 to –250	–25 to –250	–25 to –250	–10 to –25
  Input Capacitance [pF]	700	1200	4200	1344
  Mounting Type	TH	SMT	SMT	SMT
  Size [mm]	39.37 × 25.53	7.94 × 9.41	16 × 11.55	10.28 × 7.64

  As shown in the PMOS Comparison table, IRHNJ597230 is selected because it has the smallest I_DSS and has relatively small package size and input capacitance.

• Shunt Reference and R2 Selection

  The shunt reference in the design is to create a virtual voltage supply of 95 V for the LMP7704-SP op amp. The maximum supply current for LMP7704 is 4.5 mA. Hence, the current range of the shunt reference selected must be greater than 4.5 mA.

  Shunt Reference Options lists the two shunt reference options for comparison. Both shunt references have a current range greater than 4.5 mA. The reverse breakdown voltage tolerance is not critical in this case, as long as the V_EE is around 95 V. Hence, even though the TL1431 has better performance in general, the LM4050QML is preferable because it has a smaller size and requires less components.

  Shunt Reference Options

  Parameter	TL1431-SP	LM4050QML-SP
  Reverse Breakdown Voltage tolerance (%)	0.4	1.75
  TID (krad)	100	100
  Component Needed	5	3
  Current Range (mA)	1 to 100	0.06 to 15
  Mounting Type	SMT	SMT
  Size (mm)	10.16 × 7.11	6.86 × 10.41

  Since the LMP7704 drains a maximum of 4.5 mA, and the shunt reference selected requires at least 0.06 mA, the current through R2 is designed to be 4.75 mA. R2 is calculated with the following formula:
