EVM User's Guide

TPS7H2201EVM Evaluation Module (EVM)

Description

The TPS7H2201EVM demonstrates the operation of a single TPS7H2201 eFuse (Radiation Tolerant/Hardened Plastic). The board provides footprints that can be populated with additional components to allow for testing of customized configurations, such as parallel or redundant eFuses.

Features

  • Flexible configuration options, including single- and parallel-device circuits
  • Customizable soft start, current limit, current limit timers, enable threshold, undervoltage threshold, and capacitance.

The EVM is populated for a single-device configuration. The footprints on the bottom half of the board can be populated if a parallel-device configuration is desired.

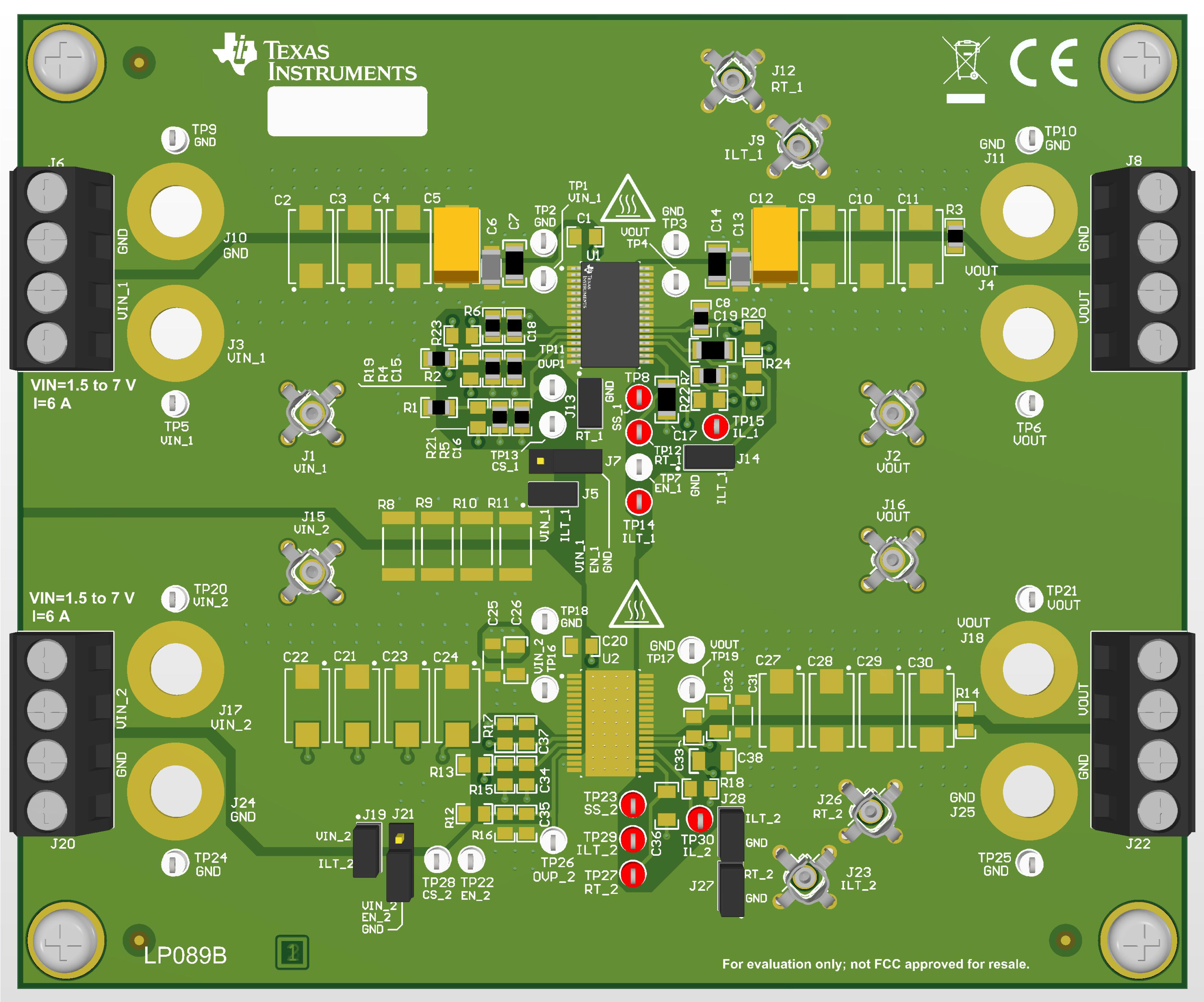

TPS7H2201EVM Board
