MSPM0 MCUs Development Guide

Abstract

This document is a good resource for finding important information about MSPM0™ microcontrollers (MCUs). This application note can serve as a reference, a starting guide, a self-learning tool, or an application-development guide.

Trademarks

MSPM0™, LaunchPad™, Code Composer Studio™, SimpleLink™, C2000™, and TIVA™ are trademarks of Texas Instruments.

Arm® and Cortex® are registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

are registered trademarks of Arm Limited.

All trademarks are the property of their respective owners.

1 Overview

The MSPM0 microcontroller family uses an enhanced Arm® Cortex®-M0+ 32-bit processor, operating at up to 80MHz and supports both industrial and automotive applications (with AEC-Q100 FS-QM and ASIL-B qualification). Designers can easily find a cost-effective MCU within the broad portfolio, which offers pin-to-pin compatibility across a wide range of memory and package sizes. TI's leadership in integrated precision analog endows this device family with the high precision and speed ADC, zero-drift chopper OPA, DAC, COMP, and so forth.

MSPM0 MCUs are supported by an extensive hardware and software ecosystem. The ecosystem includes easy-to-use development tools, affordable evaluation boards, and a wide range of embedded software kits, drivers, and examples. This document describes these factors into four topics: MSPM0 Online Selection, Software Development Instructions, Hardware Design Instructions and Mass Production Instructions.

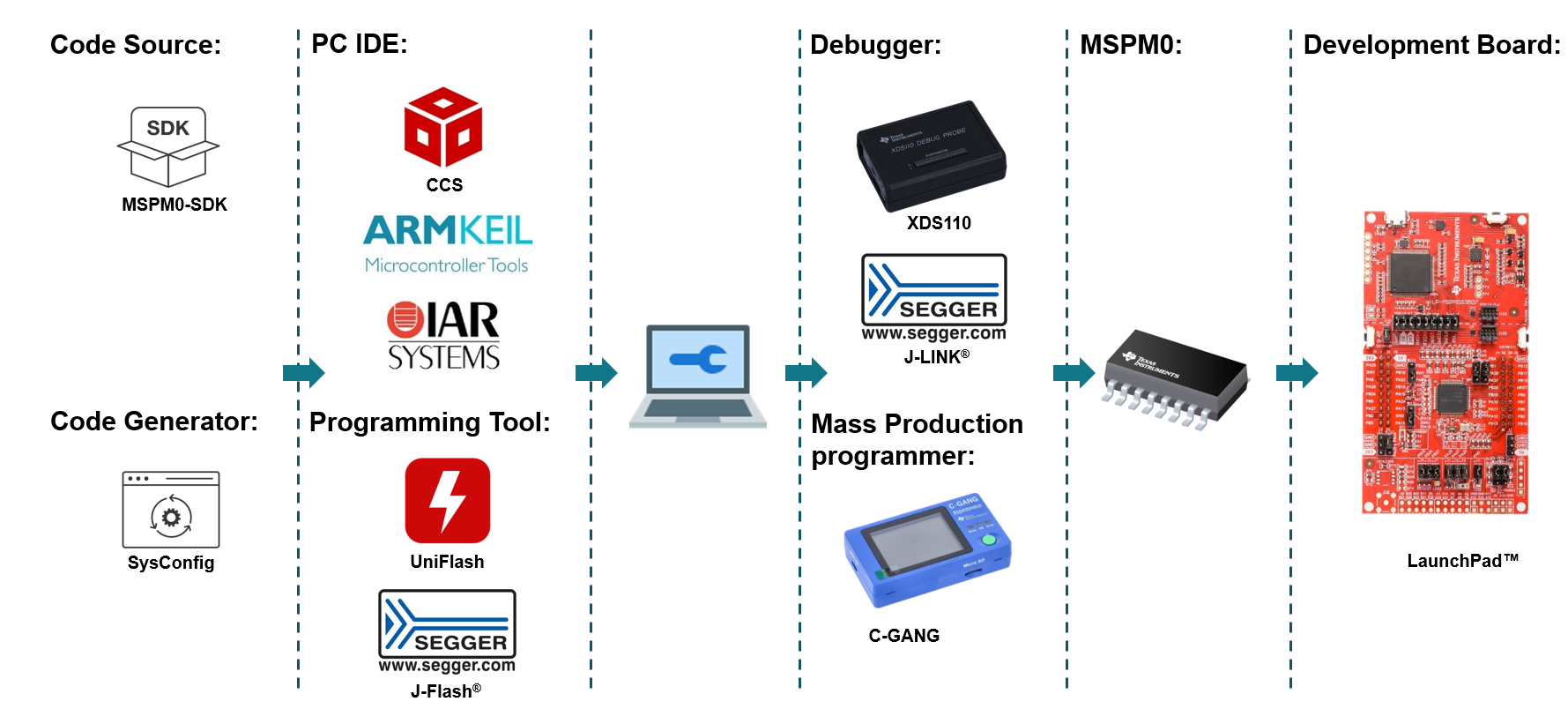

MSPM0 Ecosystem Figure 1-1 MSPM0 Ecosystem

Besides of common development topics, we also list all the Technical Documentation Resources, quality and reliability resources and common development questions. Please refer to the table of contents to choose your interested topic for reference.
