DATA SHEET

LMX2694-EP 15GHz 広帯域 PLLatinum RF シンセサイザ、位相同期付き

このリソースの元の言語は英語です。 翻訳は概要を便宜的に提供するもので、自動化ツール (機械翻訳) を使用していることがあり、TI では翻訳の正確性および妥当性につきましては一切保証いたしません。 実際の設計などの前には、ti.com で必ず最新の英語版をご参照くださいますようお願いいたします。

1 特長

  • VID V62/19616-01XE
  • 39.3MHz～15.1GHz の出力周波数
  • 100kHz オフセットで位相ノイズ -110dBc/Hz (15GHz キャリア使用時)
  • 8GHz 時のジッタ：54fs RMS (100Hz～100MHz)
  • 出力電力をプログラム可能
  • 主な PLL 仕様
    • 性能指数：-236dBc/Hz
    • 正規化 1/f ノイズ：-129dBc/Hz
    • 最高 200MHz の位相検出周波数
  • 複数デバイス間の出力位相の同期
  • 分解能 9ps のプログラム可能な遅延による SYSREF サポート
  • 3.3V 単一電源で動作
  • 動作温度範囲：-55℃～125℃

2 アプリケーション

  • 防衛用無線
  • 電子兵器
  • レーダー
  • アクティブ・アンテナ・システム (AAS) の mMIMO
  • マクロ・リモート無線ユニット (RRU)
  • 屋外バックホール・ユニット
  • データ・アクイジション
  • 無線通信試験機器

3 概要

LMX2694-EP デバイスは、高性能の広帯域フェーズ・ロック・ループ (PLL) で、電圧制御発振器 (VCO) と電圧レギュレータを内蔵しており、ダブラーなしで 39.3MHz～15.1GHz の任意の周波数を出力でき、1/2 高調波フィルタが不要です。搭載されている VCO は、1 オクターブの範囲をカバーしており、最低 39.3MHz までの周波数を出力できます。-236dBc/Hz の性能指数と高い位相検出器周波数を備えた高性能 PLL により、非常に低い帯域内ノイズと積分ジッタを実現できます。

LMX2694-EP を使えば、このデバイスの複数のインスタンスからの出力を同期することができます。このため、フラクショナル・エンジンまたは出力分周器を使用した場合を含め、あらゆるユースケースでデバイスから決定性位相が得られます。また、高速データ・コンバータの低ノイズ・クロック・ソースとしてこのデバイスを使用して、SYSREF (JESD204B 規格準拠) を生成または中継することもできます。

デバイス情報(1)
部品番号パッケージ本体サイズ (公称)
LMX2694-EPVQFN (48)7.00mm × 7.00mm
(1) 利用可能なパッケージについては、このデータシートの末尾にある注文情報を参照してください。

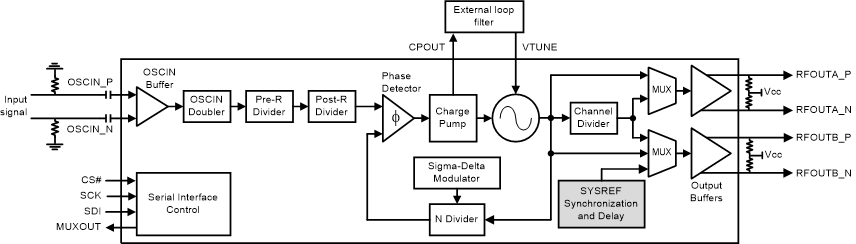

GUID-5AFF12FC-FCB6-45DB-BF5D-5B71484B10A7-low.gif概略回路図


Texas Instruments

© Copyright 1995-2025 Texas Instruments Incorporated. All rights reserved.
Submit documentation feedback | IMPORTANT NOTICE | Trademarks | Privacy policy | Cookie policy | Terms of use | Terms of sale
