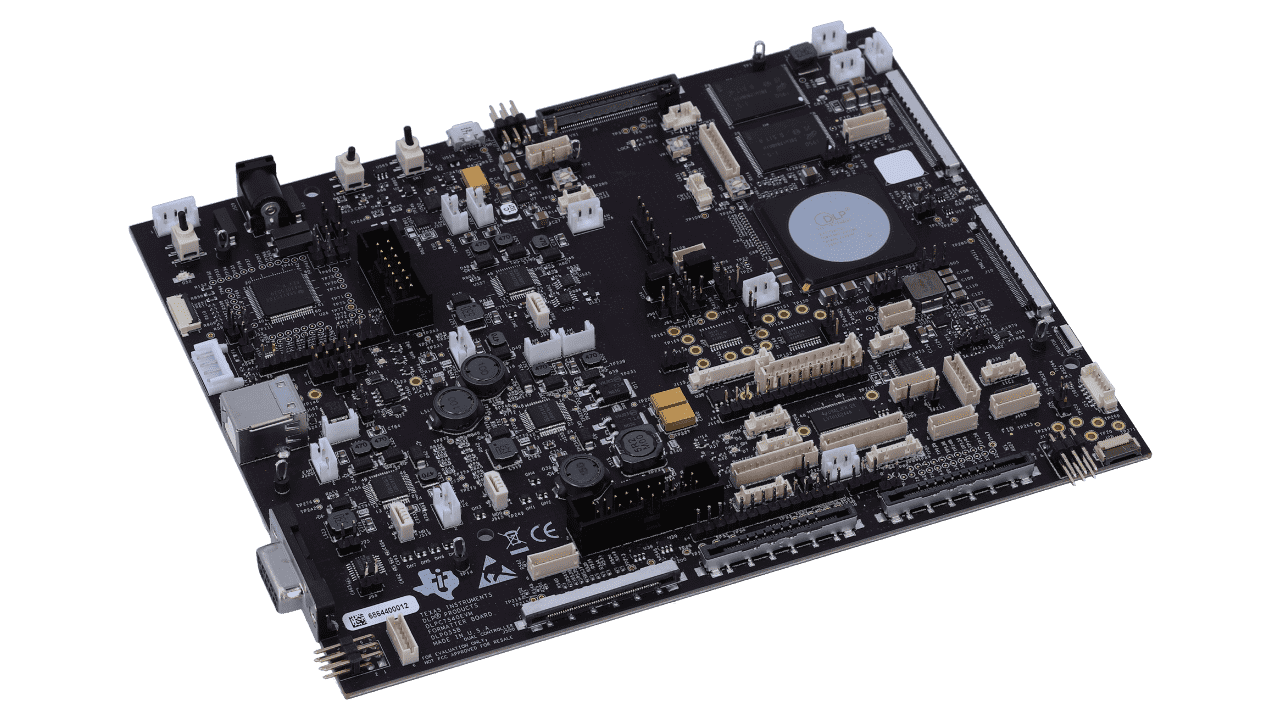

The DLPC7540 controller EVM board, DLPC7540EVM, when combined with the DLP472TEEVM, DLP650TEEVM, or DLP471TEEVM, can accelerate the prototyping time of a DLP 4K UHD system. The DLPC7540EVM provides a design for driving either the 0.47-inch 4K UHD or 0.65-inch 4K UHD standard digital micromirror devices (DMDs), while allowing for testing with included Vx1 interface front-end system. The combination of the DLPC7540EVM with either the DLP472TEEVM, DLP650TEEVM, or DLP471TEEVM can display SPLASH, test patterns or video from the HDMI source on the DMD.

• DLP472TEEVM
  • 4K UHD (3840 × 2160) display resolution
  • 5.4µm micromirror pitch
  • ±14.5° micromirror tilt (relative to flat surface)
  • Corner illumination
  • High speed serial interface (HSSI) input data bus

• DLP650TEEVM
  • 4K UHD (3840 × 2160) display resolution
  • 7.6µm micromirror pitch
  • ±12° micromirror tilt (relative to flat surface)
  • Corner illumination
  • High speed serial interface (HSSI) input data bus

• DLP471TEEVM
  • 4K UHD (3840 × 2160) display resolution
  • 5.4µm micromirror pitch
  • ±17° micromirror tilt (relative to flat surface)
  • Bottom illumination
  • High speed serial interface (HSSI) input data bus

• DLPC7540EVM
  • Supports up to 4K UHD at 60Hz
  • Supports up to 1080p at 240Hz (2D) and 120Hz (3D)
  • Supports LED, RGB laser and laser phosphor illuminations
