EVM USER'S GUIDE

DLP®LightCrafter Display 471TP EVM User's Guide

Trademarks

LightCrafter and E2E are trademarks of Texas Instruments Incorporated.

DLP are registered trademarks of Texas Instruments Incorporated.

All trademarks are the property of their respective owners.

1 Safety Instructions

CAUTION: GUID-748C81C2-9348-4EF8-964D-6CE0A10C0E1E-low.gif

Hot surface. To minimize risk of burns, do not touch.

WARNING: GUID-34DEFF4A-87C4-4142-9881-2C506526CCAF-low.png

Possible hazardous optical radiation emitted from this product. Do not stare at the operating LEDs. May be harmful to the eye.

WARNING: GUID-FCD5DFB4-3FB7-45E7-B8D9-2925649AD5AB-low.png

Observe handling precautions. Electrostatic sensitive devices.

WARNING:

Always ensure all fans are running during operation to help avoid overheating and ensure reliable operation.

2 Applicable Documents

The following documents are applicable to the DLP LightCrafter Display 471TP EVM and are available at TI.com.

  1. Texas Instruments, DLP471TP .47 4K UHD DMD data sheet.
  2. Texas Instruments, DLPA3005 PMIC and High-Current LED Driver IC data sheet.
  3. Texas Instruments, DLPC6540 High Resolution Display Controller data sheet.
  4. Texas Instruments, DLPC6540 Software Programmer's Guide.
  5. Texas Instruments, DLP® LightCrafter™ Display and Light Control EVM GUI Tool user's guide.

If you need additional assistance, refer to the DLP Products and MEMS TI E2E™ community support forums.

3 DLP LightCrafter Display 471TP EVM Components

The DLP LightCrafter Display module consists of three subsystems:

  • Light engine – Includes the optics, red, green, and blue LEDs, DMD interface board, and a DLP471TP 4K UHD DMD capable of over 500 lumens out-of-the-box.
  • Formatter Board – Includes the DLP chipset comprised of a DLPC6540 controller and DLPA3005 PMIC/LED driver, USB, and power connector.
  • Front-End Board – Includes the HDMI receiver and external HDMI connector.

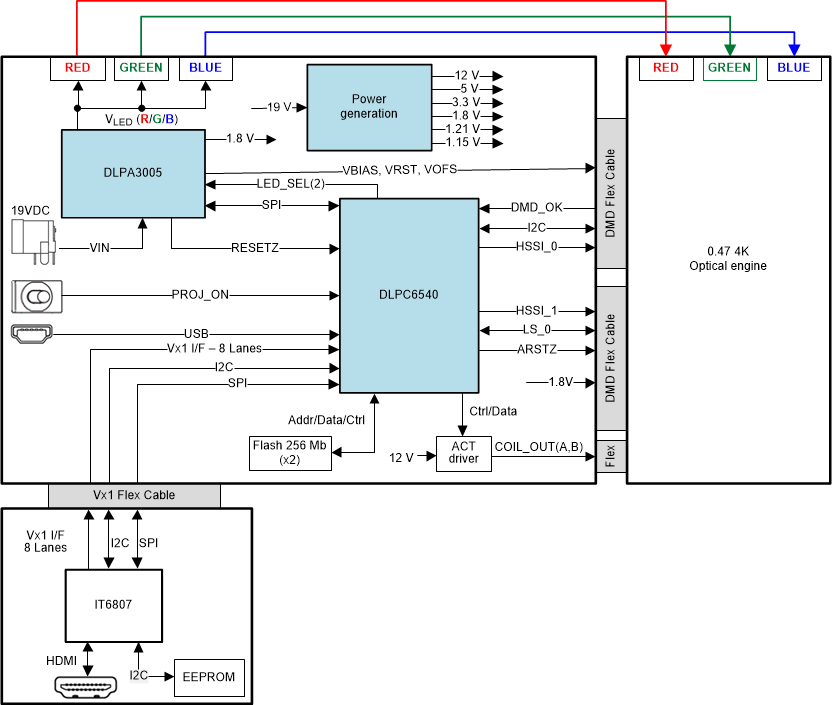

GUID-20201130-CA0I-STJB-HLGF-BKDCVFDQVVFH-low.gifFigure 3-1 DLP LightCrafter Display EVM Block Diagram
