DLP® LightCrafter Display 230NP EVM
Abstract
This user’s guide presents an overview of the DLP®LightCrafter™ Display 230NP evaluation module (EVM) and a general description of the main features and functions. It explains the first steps to get started, and shows a detailed description of onboard LEDs, connectors, and overall EVM assembly.
The EVM can be used by itself to display a DLP LightCrafter Display test image or in combination with a low-end processor including the Raspberry PI 4B.
This guide provides the user with further information on how to successfully connect the EVM to the Raspberry PI 4B and get the Raspberry PI content projected on the wall.Trademarks
LightCrafter and TI E2E™ are trademarks of Texas Instruments.
DLP® is a registered trademark of Texas Instruments.
Microsoft® and Windows® are registered trademarks of Microsoft Corporation.
All trademarks are the property of their respective owners.
1 DLP LightCrafter Display 230NP EVM Overview
Figure 1-1 DLP®

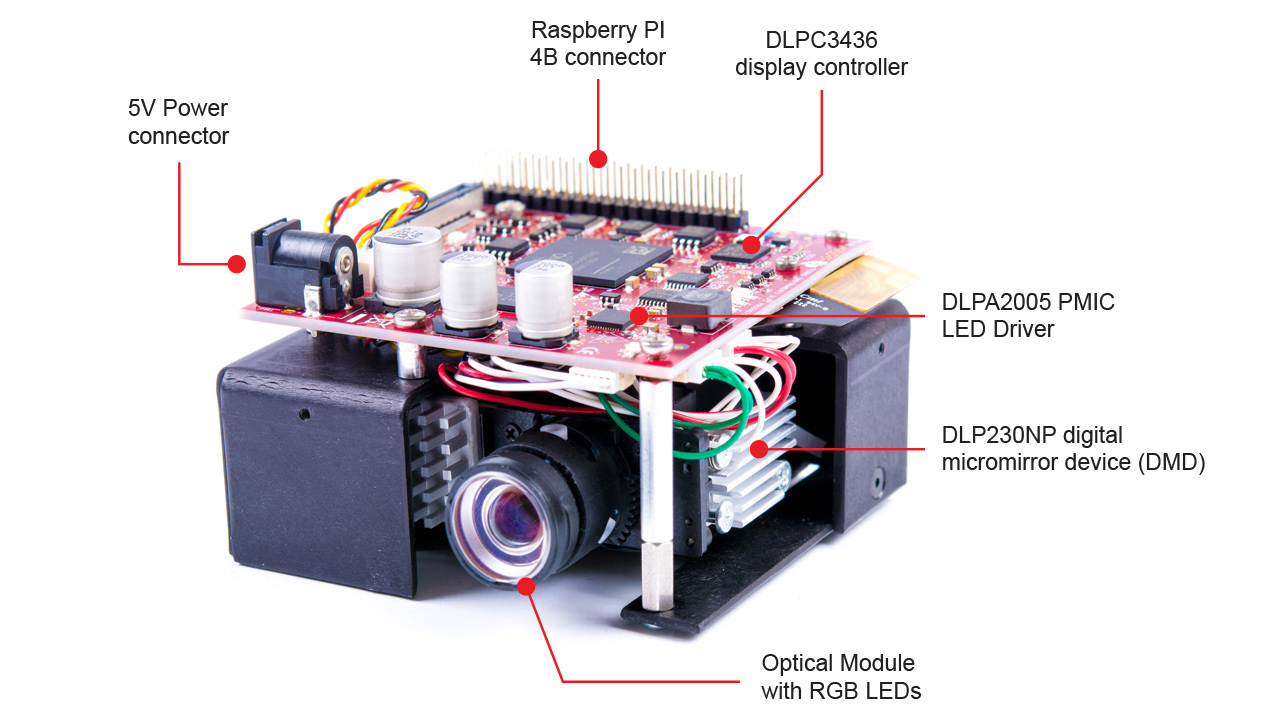

LightCrafter™ Display 230NP EVMIn addition to this document, use the documents shown in Section 3.
