EVM USER'S GUIDE
DLP® LightCrafterDisplay 3010 EVM Gen2 User's Guide
DLP®LightCrafter™ Display 3010 EVM Gen2 User's Guide
This user’s guide presents an overview of the DLP®LightCrafter™ Display 3010 evaluation module (EVM) Gen2 and a general description of the main features and functions. It explains the first steps to get started, and shows a detailed description of on board LEDs, connectors and overall EVM assembly. It will give the user a successful start with their first DLP LightCrafter Display 3010 Gen2 evaluation module.
Trademarks
LightCrafter is a registered trademark of Texas Instruments.
LightCrafter, E2E are registered trademarks of TI.
DLP is a registered trademark of TI.
All other trademarks are the property of their respective owners.
1 DLP® LightCrafter™ Display 3010 EVM Gen2 Overview

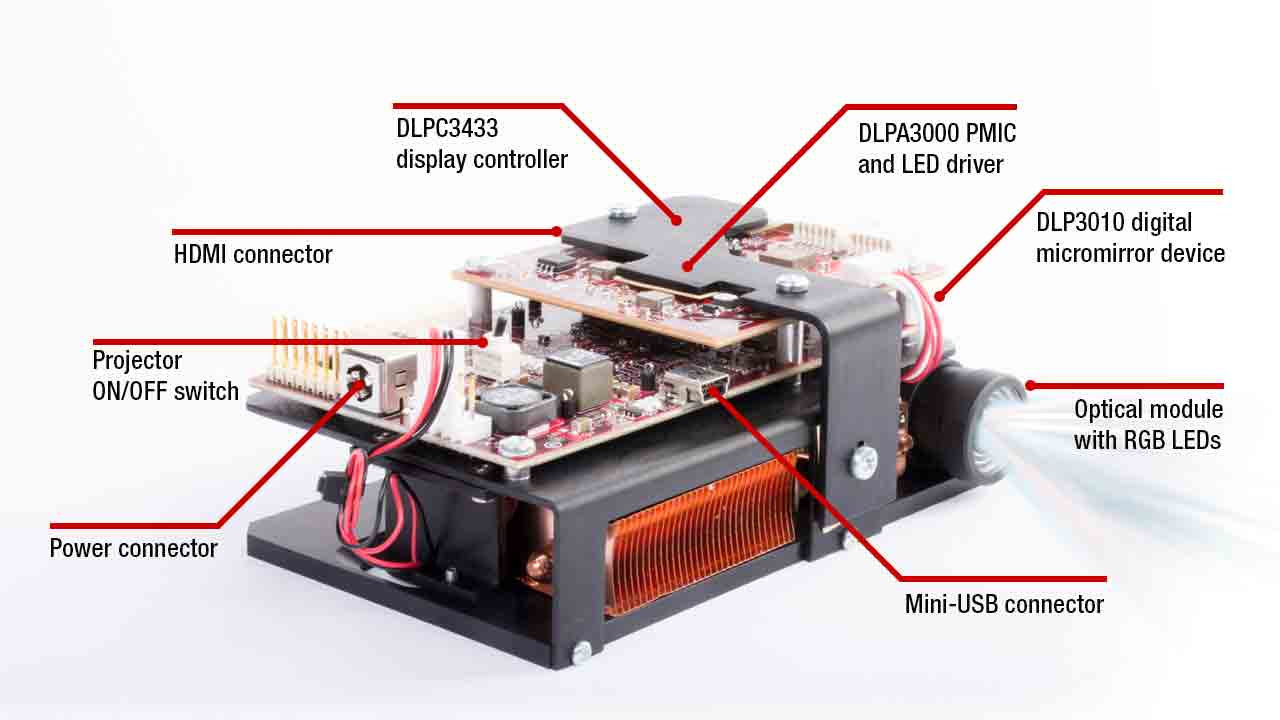

Figure 1. DLP LightCrafter Display Complete EVM In addition to this document, the following documents shown in Section 3 should be used.
