TI DLP® Pico™ Technology 3D Scanning Improvements
New 3D Scanning Features
TI DLP® technology offers a wide portfolio of high speed chips for 3D scanning applications, including intra-oral scanning, automated optical inspection (AOI) and solder paste inspection (SPI). All of these scanning applications require programmable structured light patterns. New features were introduced in the 9.x.x version of the controller firmware that adds multi-bit monochrome internal pattern display support and allows the choice to start the pattern set at a non-zero start entry index.

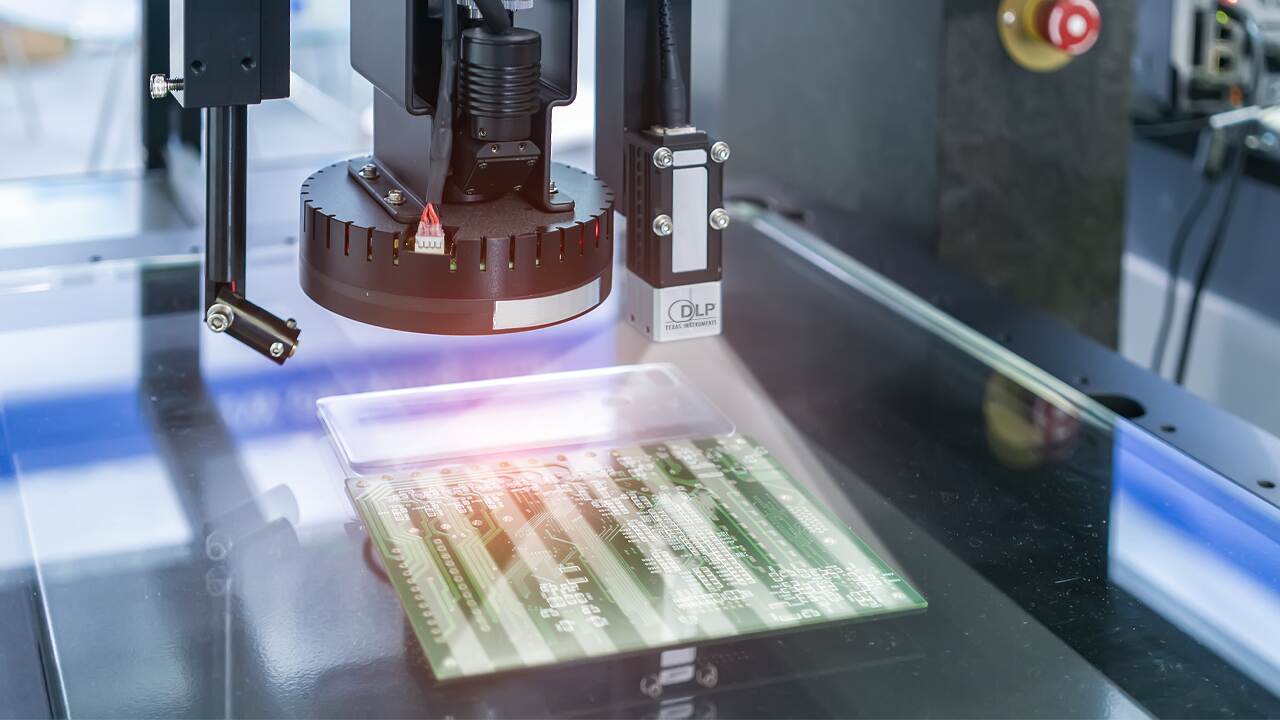

Figure 1 DLP® 3D Scanning ProductMulti-bit Monochrome Pattern
Internal pattern streaming mode displays 1D pattern data stored in flash. The new firmware enables 4, 5, and 6-bit depth monochrome pattern projection in internal pattern streaming mode. This pattern creates two advantages:
- Enables multi-bit pattern displays with higher pattern rates.
- Allows storing higher number of patterns within a pattern set.
| Vertical | Horizontal | |
|---|---|---|
| 1-bit | 51 | 64 |
| 4-bit | 12 | 16 |
| 5-bit | 10 | 12 |
| 6-bit | 8 | 10 |
| 8-bit | 6 | 8 |
Dark Time Requirements
| Pre-exposure time | Exposure time | Post-exposure time | |
|---|---|---|---|
| 1-bit | 171 | 200 | 31 |
| 4-bit | 171 | 585 | 31 |
| 5-bit | 171 | 693 | 31 |
| 6-bit | 171 | 887 | 31 |
| 8-bit | 171 | 3464 | 31 |
Non-Zero Start Entry Index
User can now configure the start of pattern set with a non-zero index. This feature helps in displaying the same pattern set content with different colors without having the overhead of fetching the pattern data from memory.
Figure 2 Dental 3D ScannerAdditional Information
- Download the DLP® Pico Firmware Selector
- Start development with the DLP3010EVM-LC
- Learn more about TI DLP® 3D scanning
