1 Features

  • Ultra-Low Qg and Qgd
  • Avalanche Rated
  • Pb Free
  • RoHS Compliant
  • Halogen Free

2 Applications

  • Half Bridge for Motor Control
  • Synchronous Buck Converter

3 Description

This dual SO-8, 60 V, 12.5 mΩ NexFET™ power MOSFET is designed to serve as a half bridge in low current motor control applications.

Top View

Product Summary

TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 60 V
Qg Gate Charge Total (10 V) 14 nC
Qgd Gate Charge Gate-to-Drain 2.3 nC
RDS(on) Drain-to-Source On-Resistance VGS = 6 V 15 mΩ
VGS = 10 V 12.5 mΩ
VGS(th) Threshold Voltage 3.0 V


Ordering Information(1)

Device Media Qty Package Ship
CSD88537ND 13-Inch Reel 2500 SO-8 Plastic
Package		 Tape and Reel
CSD88537NDT 7-Inch Reel 250
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage 60 V
VGS Gate-to-Source Voltage ±20 V
ID Continuous Drain Current (Package limited) 15 A
Continuous Drain Current (Silicon limited), TC = 25°C 16
Continuous Drain Current (1) 8.0
IDM Pulsed Drain Current, TA = 25°C(2) 108 A
PD Power Dissipation(1) 2.1 W
TJ,
Tstg		 Operating Junction and
Storage Temperature Range		 –55 to 150 °C
EAS Avalanche Energy, single pulse
ID = 32, L = 0.1 mH, RG = 25 Ω		 51 mJ
  1. Typical RθJA = 60°C/W on a 1-inch2, 2-oz. Cu pad on a
    0.06-inch thick FR4 PCB.
  2. Max RθJL = 20°C/W, pulse duration ≤100 μs, duty cycle ≤1%

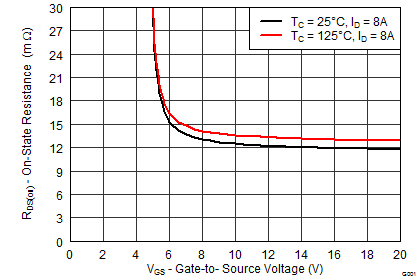

RDS(on) vs VGS

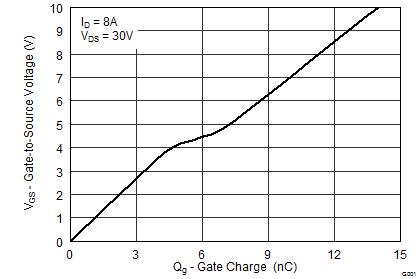

Gate Charge
