1 Features

  • Dual N-Ch Common Source MOSFETs
  • Optimized for 5-V Gate Drive
  • Low-Thermal Resistance
  • Low Qg and Qgd
  • Lead-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 3.3-mm × 3.3-mm Plastic Package

2 Applications

  • USB Type-C/PD VBus Protection
  • Battery Protection
  • Load Switch

3 Description

The CSD87503Q3E is a 30-V, 13.5-mΩ, common source, dual N-channel device designed for USB Type-C/PD and battery protection. This SON 3.3 × 3.3 mm device has low drain-to-drain on-resistance that minimizes losses and offers low component count for space constrained applications.

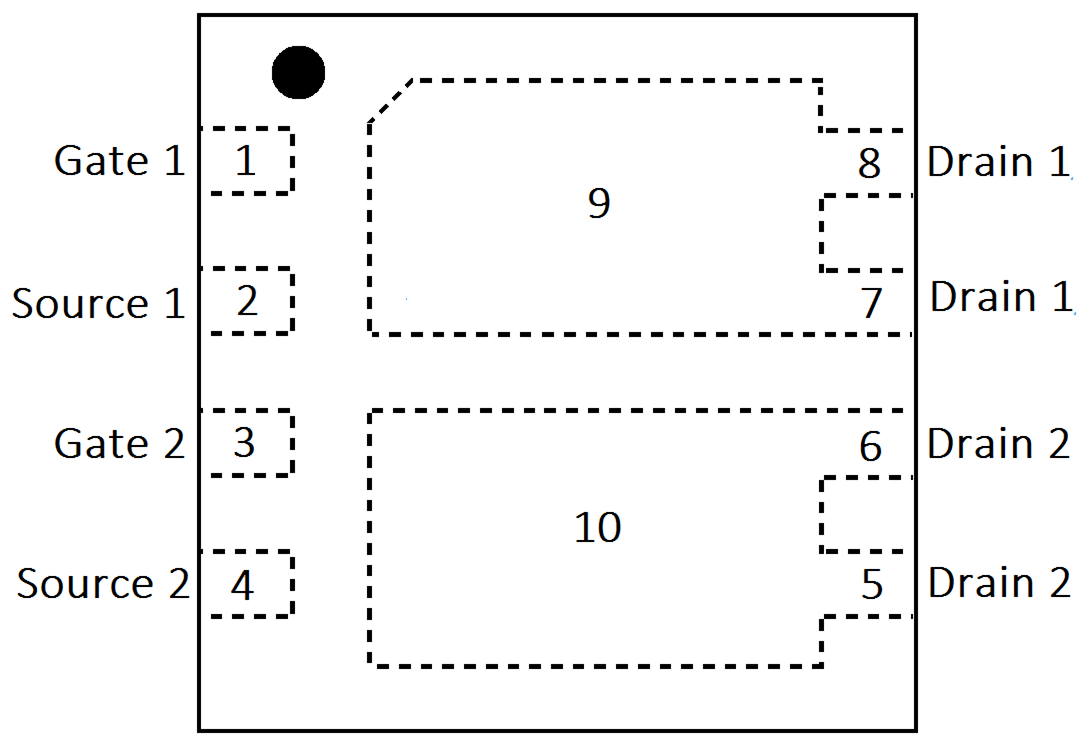

Top View

CSD87503Q3E TopView.gif

Circuit Image

CSD87503Q3E Dev_Schem.gif

Product Summary

TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage 30 V
Qg Gate Charge Total (4.5 V) 13.4 nC
Qgd Gate Charge Gate-to-Drain 5.8 nC
RDD(on) Drain-to-Drain On-Resistance VGS = 4.5 V 17.3 mΩ
VGS = 10 V 13.5
VGS(th) Threshold Voltage 1.7 V

Device Information(1)

DEVICE QTY MEDIA PACKAGE SHIP
CSD87503Q3E 2500 13-Inch Reel SON
3.30-mm × 3.30-mm
Plastic Package		 Tape and Reel
CSD87503Q3ET 250 7-Inch Reel
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage 30 V
VGS Gate-to-Source Voltage ±20 V
ID1, D2 Continuous Drain-to-Drain Current (Package Limited) 10 A
IDS Continuous Drain-to-Source Current (Package Limited) 1.5 A
ID1, D2M Pulsed Drain-to-Drain Current,(1) 89 A
PD Power Dissipation(2) 2.6 W
PD Power Dissipation, TC = 25°C 15.6 W
TJ ,
Tstg 		Operating Junction,
Storage Temperature		 –55 to 150 °C
  1. Max RθJC = 8°C/W, pulse duration ≤ 100 μs, duty cycle ≤ 1%.
  2. Typical RθJA = 50°C/W when mounted on a 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu pad on a 0.06-in (1.52-mm) thick FR4 PCB.

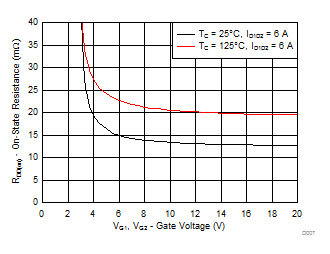

RDD(on) vs VGS

CSD87503Q3E D007_SLPS661.gif

4 Revision History

DATE REVISION NOTES
September 2017 * Initial release.
