1 Features

  • Ultra-Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Logic Level
  • Pb-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5-mm × 6-mm Plastic Package

2 Applications

  • Secondary Side Synchronous Rectifier
  • Motor Control

3 Description

This 3.4 mΩ, 80 V, SON 5 mm × 6 mm NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

Top View
CSD19502Q5B P0093-01_LPS198.gif

SPACE

SPACE

Product Summary

TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 80 V
Qg Gate Charge Total (10 V) 48 nC
Qgd Gate Charge Gate to Drain 8.6 nC
RDS(on) Drain-to-Source On Resistance VGS = 6 V 3.8 mΩ
VGS = 10 V 3.4 mΩ
VGS(th) Threshold Voltage 2.7 V

.
Ordering Information(1)

Device Media Qty Package Ship
CSD19502Q5B 13-Inch Reel 2500 SON 5 x 6 mm
Plastic Package		 Tape and Reel
CSD19502Q5BT 13-Inch Reel 250
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage 80 V
VGS Gate-to-Source Voltage ±20 V
ID Continuous Drain Current (Package limited) 100 A
Continuous Drain Current (Silicon limited), TC = 25°C 157
Continuous Drain Current(1) 17
IDM Pulsed Drain Current(2) 400 A
PD Power Dissipation(1) 3.1 W
Power Dissipation, TC = 25°C 195
TJ,
Tstg 		Operating Junction and
Storage Temperature Range		 –55 to 150 °C
EAS Avalanche Energy, single pulse
ID = 74 A, L = 0.1 mH, RG = 25 Ω		 274 mJ
  1. Typical RθJA = 40°C/W on a 1-inch2, 2-oz. Cu pad on a 0.06-inch thick FR4 PCB.
  2. Max RθJC = 0.8°C/W, pulse duration ≤100 µs, duty cycle ≤1%

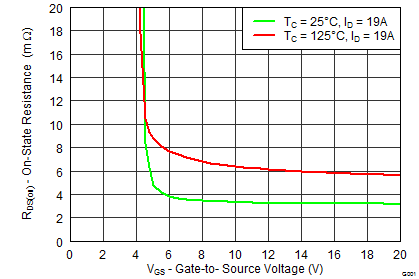

RDS(on) vs VGS

CSD19502Q5B graph07_SLPS413.png

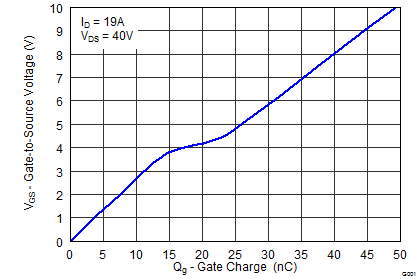

Gate Charge

CSD19502Q5B graph04_SLPS413.png
