1 Features

  • Low Qg and Qgd
  • Low RDS(on)
  • Low Thermal Resistance
  • Avalanche Rated
  • Pb-Free
  • RoHS Compliant
  • Halogen Free
  • SON 3.3 mm × 3.3 mm Plastic Package

2 Applications

  • Point-of-Load Synchronous Buck Converter for Applications in Networking, Telecom, and Computing Systems
  • Optimized for Control FET Applications

3 Description

This 30 V, 6.3 mΩ, SON 3.3 mm × 3.3 mm NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

Top View
CSD17578Q3A P0093-01_LPS198.gif

 .

 .

Product Summary

TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 30 V
Qg Gate Charge Total (4.5 V) 7.9 nC
Qgd Gate Charge Gate to Drain 1.7 nC
RDS(on) Drain-to-Source On-Resistance VGS = 4.5 V 8.2 mΩ
VGS = 10 V 6.3 mΩ
VGS(th) Threshold Voltage 1.5 V

.
Ordering Information(1)

DEVICE MEDIA QTY PACKAGE SHIP
CSD17578Q3A 13-Inch Reel 2500 SON 3.3 x 3.3 mm
Plastic Package		 Tape and Reel
CSD17578Q3AT 7-Inch Reel 250
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage 30 V
VGS Gate-to-Source Voltage ±20 V
ID Continuous Drain Current (Package limited) 20 A
Continuous Drain Current (Silicon limited), TC = 25°C 54
Continuous Drain Current(1) 14
IDM Pulsed Drain Current(2) 142 A
PD Power Dissipation(1) 2.5 W
Power Dissipation, TC = 25°C 37
TJ,
Tstg 		Operating Junction Temperature,
Storage Temperature		 –55 to 150 °C
EAS Avalanche Energy, single pulse
ID = 22 A, L = 0.1 mH, RG = 25 Ω		 24 mJ
  1. Typical RθJA = 50°C/W on a 1 inch2, 2 oz. Cu pad on a
    0.06 inch thick FR4 PCB.
  2. Max RθJC = 4.2 °C/W, pulse duration ≤100 μs, duty cycle ≤1%

RDS(on) vs VGS

CSD17578Q3A D007_SLPS525.gif

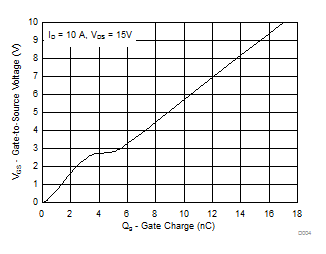

Gate Charge

CSD17578Q3A D004_SLPS525_frontpage.gif
