1 Features

  • Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Pb-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 2 mm × 2 mm Plastic Package

2 Applications

  • Optimized for Load Switch Applications
  • Storage, Tablets, and Handheld Devices
  • Optimized for Control FET Applications

3 Description

This 30 V, 20 mΩ, SON 2×2 NexFET™ power MOSFET is designed to minimize losses in power conversion and load management applications, while offering excellent thermal performance for the size of the package.

Top View

Product Summary

TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 30 V
Qg Gate Charge Total (4.5 V) 2.4 nC
Qgd Gate Charge Gate-to-Drain 0.6 nC
RDS(on) Drain-to-Source On-Resistance VGS = 4.5 V 24 mΩ
VGS = 10 V 20 mΩ
VGS(th) Threshold Voltage 1.6 V

Ordering Information(1)

Device Media Qty Package Ship
CSD17571Q2 7-Inch Reel 3000 SON 2 x 2 mm Plastic Package Tape and Reel
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage 30 V
VGS Gate-to-Source Voltage ±20 V
ID Continuous Drain Current (Package Limit) 22 A
Continuous Drain Current(1) 7.6 A
IDM Pulsed Drain Current, TA = 25°C(2) 39 A
PD Power Dissipation(1) 2.5 W
TJ,
Tstg		 Operating Junction and
Storage Temperature Range		 –55 to 150 °C
EAS Avalanche Energy, single pulse
ID = 12 A, L = 0.1 mH, RG = 25 Ω		 7.2 mJ
  1. RθJA = 50 on 1 in² Cu (2 oz.) on 0.060" thick FR4 PCB
  2. Pulse duration 10 μs, duty cycle ≤2%

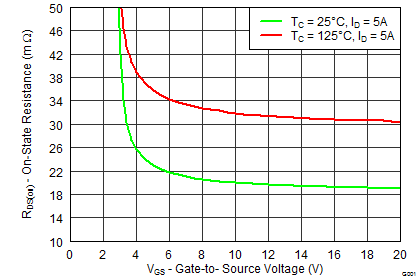

RDS(on) vs VGS
