1 Features

  • Extremely Low Resistance
  • Ultra-Low Qg and Qgd
  • Low-Thermal Resistance
  • Avalanche Rated
  • Lead-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5-mm × 6-mm Plastic Package

2 Applications

  • Point of Load Synchronous Buck in Networking, Telecom, and Computing Systems
  • Synchronous Rectification
  • Active ORing and Hotswap Applications

3 Description

This 30-V, 1.2-mΩ, 5-mm × 6-mm NexFET™ power MOSFET is designed to minimize losses in synchronous rectification and other power conversion applications.

Top View

CSD17556Q5B P0093-01_LPS198.gif

Product Summary

TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 30 V
Qg Gate Charge Total (4.5 V) 30 nC
Qgd Gate Charge Gate-to-Drain 7.5 nC
RDS(on) Drain-to-Source On-Resistance VGS = 4.5 V 1.5 mΩ
VGS = 10 V 1.2
VGS(th) Threshold Voltage 1.4 V

Device Information(1)

DEVICE QTY MEDIA PACKAGE SHIP
CSD17556Q5B 2500 13-Inch Reel SON
5.00-mm × 6.00-mm
Plastic Package		 Tape and Reel
CSD17556Q5BT 250
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage 30 V
VGS Gate-to-Source Voltage ±20 V
ID Continuous Drain Current (Package Limited) 100 A
Continuous Drain Current (Silicon Limited), TC = 25°C 215
Continuous Drain Current(1) 34
IDM Pulsed Drain Current, TA = 25°C(1)(2) 400 A
PD Power Dissipation(1) 3.1 W
Power Dissipation, TC = 25°C 191
TJ,
Tstg		 Operating Junction,
Storage Temperature		 –55 to 150 °C
EAS Avalanche Energy, Single Pulse
ID = 100 A, L = 0.1 mH, RG = 25 Ω		 500 mJ
  1. Typical RθJA = 40°C/W on 1-in2 (6.45-cm2), 2-oz
    (0.071-mm) thick Cu pad on a 0.06-inch (1.52-mm) thick FR4 PCB.
  2. Max RθJC = 1.3°C/W, pulse duration ≤ 100 μs, duty cycle ≤ 1%.

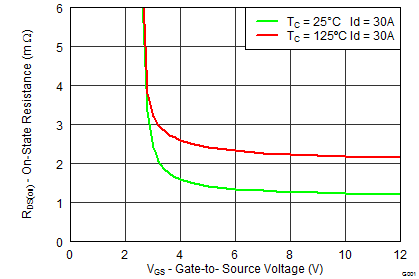

RDS(on) vs VGS

CSD17556Q5B graph07_SLPS392F.png

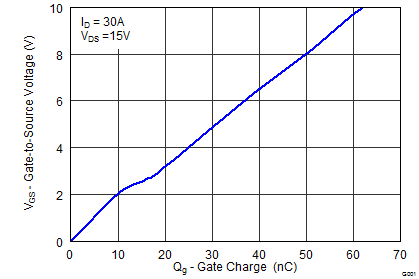

Gate Charge

CSD17556Q5B graph04_SLPS392F.png
