1 Features

  • Optimized for 5 V Gate Drive
  • Ultra-Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Pb Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 3.3 mm × 3.3 mm Plastic Package

2 Applications

  • Notebook Point of Load
  • Point of Load Synchronous Buck in Networking, Telecom, and Computing Systems

3 Description

This 30 V, 4.2 mΩ NexFET™ power MOSFET is designed to minimize losses in power conversion applications and optimized for 5 V gate drive applications.

Top View

Product Summary

TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 30 V
Qg Gate Charge Total (4.5 V) 7.5 nC
Qgd Gate Charge Gate-to-Drain 1.7 nC
RDS(on) Drain-to-Source On-Resistance VGS = 3 V 6.3 mΩ
VGS = 4.5 V 4.9
VGS = 8 V 4.2
VGS(th) Threshold Voltage 1.2 V


Ordering Information(1)

Device Media Qty Package Ship
CSD17309Q3 13-Inch Reel 2500 SON 3.3 × 3.3 mm Plastic Package Tape and Reel
CSD17309Q3T 7-Inch Reel 250
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage 30 V
VGS Gate-to-Source Voltage +10 / –8 V
ID Continuous Drain Current, TC = 25°C 60 A
Continuous Drain Current(1) 20 A
IDM Pulsed Drain Current, TA = 25°C(2) 112 A
PD Power Dissipation(1) 2.8 W
TJ,
Tstg		 Operating Junction and
Storage Temperature Range		 –55 to 150 °C
EAS Avalanche Energy, Single Pulse
ID = 57 A, L = 0.1 mH, RG = 25 Ω		 162 mJ
  1. Typical RθJA = 45°C/W when mounted on a 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu pad on a
    0.06 inch (1.52 mm) thick FR4 PCB.
  2. Pulse duration ≤300 μs, duty cycle ≤2%.

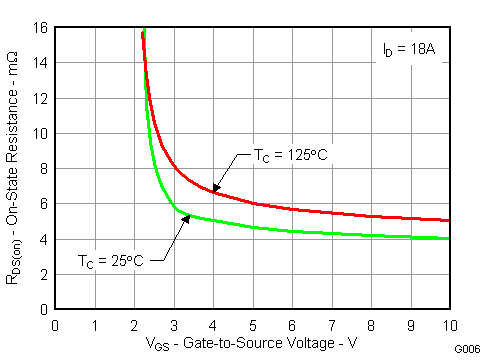

RDS(on) vs VGS

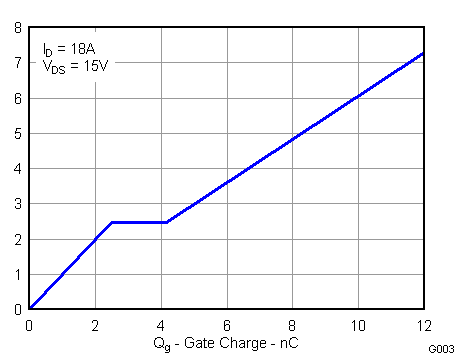

Gate Charge
