DATA SHEET

TPS7A54 4A、高精度 (0.5%)、低噪声 (4.4µVRMS) LDO 稳压器

本资源的原文使用英文撰写。 为方便起见,TI 提供了译文;由于翻译过程中可能使用了自动化工具,TI 不保证译文的准确性。 为确认准确性,请务必访问 ti.com 参考最新的英文版本(控制文档)。

1 特性

  • 线路、负载和温度范围内的最大精度为 0.5%,有偏置
  • 输出电压噪声:4.4µVRMS
  • 低压降:4A 电流时为 175mV(最大值,有偏置)
  • 电源抑制比:
    • 500kHz 时为 40dB
  • 输入电压范围:
    • 无偏置:1.4V 至 6.5V
    • 有偏置:1.1V 至 6.5V
  • 可调节输出电压范围:0.8V 至 5.1V
  • 可调软启动浪涌控制
  • 开漏电源正常状态 (PG) 输出
  • 2.2mm × 2.5mm 12 引脚 VQFN 封装

2 应用

  • 宏远程无线电单元 (RRU)
  • 室外回程单元
  • 有源天线系统 mMIMO (AAS)
  • 超声波扫描仪
  • 实验室和现场仪表
  • 传感器、成像和雷达

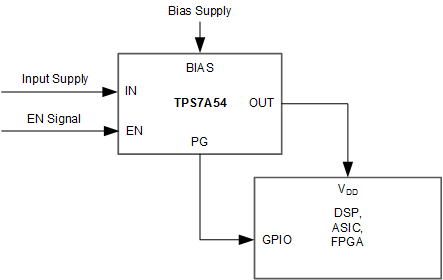

为数字负载供电

TPS7A54 Front_DL_SBVS311.gif

3 说明

TPS7A54 是一款低噪声 (4.4µVRMS)、低压降线性稳压器 (LDO),可提供 4A 电流,最大压降仅为 175mV。该器件的输出电压可通过外部电阻分压器进行调节,范围为 0.8V 至 5.1V。

TPS7A54 集低噪声 (4.4µVRMS)、高 PSRR 和高输出电流能力等特性于一体,因此非常适合为雷达电源和信息娱乐等 应用中的噪声敏感型组件供电。此器件的优秀性能可抑制电源产生的相位噪声和时钟抖动,因此非常适合为射频放大器、雷达传感器和芯片组供电。该器件具有高性能和高达 5.0V 的输出能力,尤其适合射频放大器使用。

对于需要以低输入和低输出 (LILO) 电压运行的数字负载(例如专用集成电路 (ASIC)、现场可编程门阵列 (FPGA) 和数字信号处理器 (DSP)),TPS7A54 所具备的出色精度(在负载和温度范围内可达 0.5%)、遥感功能、出色的瞬态性能和软启动功能可实现出色的系统性能。

作为可调节稳压器,TPS7A54 可实现多用途设计,因此适用于压控振荡器 (VCO)、模数转换器 (ADC)、数模转换器 (DAC) 和成像传感器等模拟负载以及串行器/解串器 (SerDes)、现场可编程门阵列 (FPGA) 和数字信号处理器 (DSP) 等数字负载。

器件信息(1)

器件型号 封装 封装尺寸(标称值)
TPS7A54 VQFN (12) 2.20mm × 2.50mm
  1. 如需了解所有可用封装,请参阅产品说明书末尾的封装选项附录。

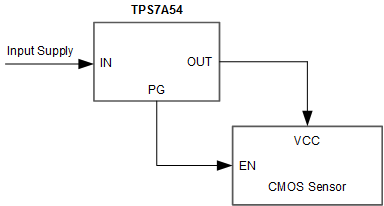

为射频组件供电

TPS7A54 Front_AL_SBVS311.gif
