DATA SHEET

具有宽占空比范围的 LM5145 75V 同步降压直流/直流控制器

本资源的原文使用英文撰写。 为方便起见,TI 提供了译文;由于翻译过程中可能使用了自动化工具,TI 不保证译文的准确性。 为确认准确性,请务必访问 ti.com 参考最新的英文版本(控制文档)。

1 特性

  • 多功能同步降压直流/直流控制器
    • 6V 至 75V 的宽输入电压范围
    • 具有 ±1% 反馈精度的 0.8V 基准
    • 可调输出电压范围为 0.8V 至 60V
    • 40ns tON(min),可实现高 VIN/VOUT 比
    • 140ns tOFF(min),可实现低压降
    • 针对 CISPR 32 要求进行了优化
  • 开关频率范围为 100kHz 至 1MHz
    • 同步输入和同步输出功能
    • 可选二极管仿真或 FPWM
  • 适用于标准 VTH MOSFET 的 7.5V 栅极驱动器
    • 14ns 自适应死区时间控制
    • 2.3A 拉电流和 3.5A 灌电流能力
    • 低侧软启动可实现预偏置启动
  • 快速线路和负载瞬态响应
    • 具有线路前馈的电压模式控制
    • 高增益带宽误差放大器
  • 固有保护特性,可实现稳健的设计
    • 可调节输出电压软启动
    • 断续模式过流保护
    • 具有迟滞功能的输入 UVLO
    • VCC 和栅极驱动 UVLO 保护
    • 精密使能输入和漏极开路 PGOOD 指示器(用于排序和控制)
    • 具有迟滞功能的热关断保护
  • 具有可湿性侧面的 20 引脚 VQFN 封装
  • 使用 LM5145 并借助 WEBENCH® Power Designer 创建定制设计

2 应用

  • 远程射频单元 (RRU) 和 BTS
  • 网络和计算能力
  • 非隔离式 PoE 和 IP 摄像头
  • 工业电机驱动

3 说明

LM5145 75V 同步降压控制器旨在对高输入电压源或会发生高电压瞬变的输入电源轨进行电压调节,从而更大限度地减少对外部浪涌抑制元件的需求。40ns 的高侧开关最短导通时间有助于获得较大的降压比,支持从 48V 标称输入到低电压轨的直接降压转换,从而降低系统的复杂性并减少解决方案成本。LM5145 在输入电压突降至 6V 时,仍能根据需要以接近 100% 的占空比继续工作,因此是高性能工业控制、机器人、数据通信和射频功率应用的理想选择。

强制 PWM (FPWM) 模式运行可以消除开关频率变化以更大程度地降低 EMI,而用户可选的二极管仿真功能则可以降低轻负载条件下的电流消耗。高达 1MHz 的可调开关频率可同步至外部时钟源,以消除噪声敏感应用中的拍频。

器件信息
器件型号封装(1)封装尺寸(标称值)
LM5145VQFN (20)4.50mm x 3.50mm
(1) 要了解所有可用封装,请参阅产品说明书末尾的可订购产品附录。

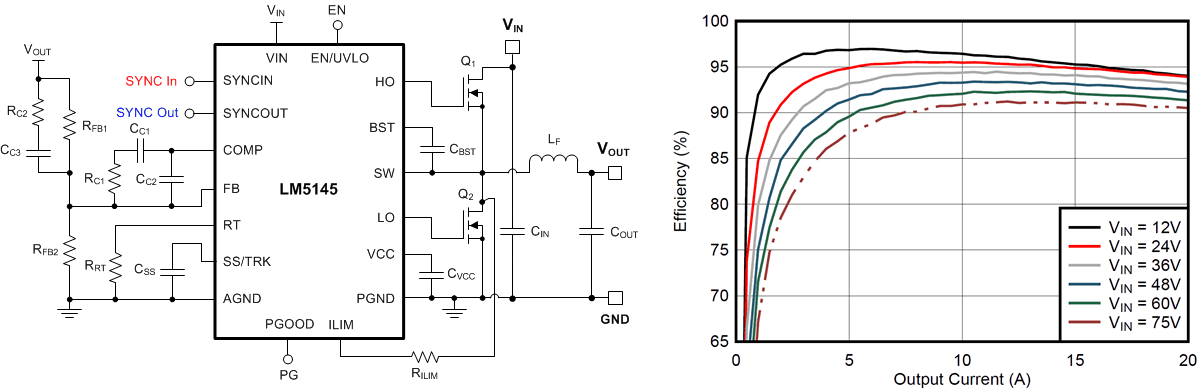

GUID-0E8C478C-5324-48FB-BD57-EBFDFDA7582E-low.gif典型应用电路和效率性能,VOUT = 5V

4 Revision History

Changes from Revision A (June 2020) to Revision B (November 2020)

  • Changed ILIM from 0 V to -1 V in the Absolute Maxmium Ratings Go

Changes from Revision * (June 2017) to Revision A (June 2020)

  • 更新了特性 中的项目列表Go
  • 更新了整个文档的表、图和交叉参考的编号格式。Go
  • Corrected equation in Table 9-4 Go
  • Added conducted EMI plotsGo
  • Updated Section 11.2 Go
  • Added Table 12-1 in Section 12 Go
  • Added Table 12-1 in Section 12 Go
  • Updated Section 12.2 Go



Texas Instruments
