Data Sheet

LMK03328 具有两个独立 PLL、八路输出、集成 EEPROM 的超低抖动时钟发生器

本资源的原文使用英文撰写。 为方便起见，TI 提供了译文；由于翻译过程中可能使用了自动化工具，TI 不保证译文的准确性。 为确认准确性，请务必访问 ti.com 参考最新的英文版本（控制文档）。

下载最新的英语版本

1 特性

  • 超低噪声、高性能
    • 抖动：fOUT > 100MHz 时的典型值为 100fs RMS
    • PSNR：–80dBc，具有强大的抗电源噪声能力
  • 灵活的器件选项
    • 多达 8 路 AC-LVPECL、AC-LVDS、AC-CML、HCSL 或 LVCMOS 输出或任意组合
    • 引脚模式、I2C 模式、EEPROM 模式
    • 71 引脚可选择预编程默认启动选项
  • 双路输入，自动或手动选择
    • 晶振输入：10MHz 至 52MHz
    • 外部输入：1MHz 至 300MHz
  • 频率裕量选项
    • 精调频率裕度（典型值为 ±50ppm），采用低成本可牵引晶振基准
    • 无毛刺脉冲的粗调频率裕度 (%)，采用输出分频器
  • 其他特性
    • 电源：3.3V 内核、1.8V、2.5V 或 3.3V 输出
    • 工业级温度范围（-40°C 至 85°C）
    • 封装：7mm × 7mm 48-WQFN

2 应用

  • 交换机和路由器
  • 网络与电信线卡
  • 服务器和存储系统
  • 无线基站
  • PCIe 第 1 代、第 2 代、第 3 代、第 4 代、第 5 代、第 6 代
  • 测试和测量
  • 广播基础设施

3 说明

LMK03328 器件是一款超低噪声时钟发生器，具有两个带集成式 VCO、灵活时钟分配和扇出的分数 N 频率合成器，在片上 EEPROM 中存储有引脚可选配置状态。该器件可为各种千兆位级串行接口和数字器件提供多个时钟，从而通过替代多个振荡器和时钟分配器件来降低 BOM 成本、减小电路板面积以及提高可靠性。超低抖动可降低高速串行链路中的比特误码率 (BER)。

封装信息
器件型号 封装(1) 封装尺寸(2)
LMK03328 RHS（WQFN，48） 7.00mm × 7.00mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。
(2) 封装尺寸（长 × 宽）为标称值，并包括引脚（如适用）。

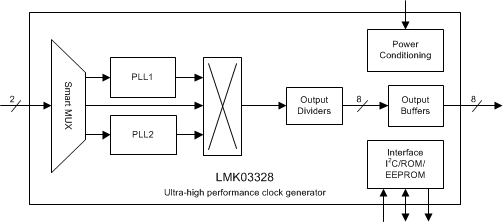

LMK03328 LMK03328 简化版方框图 LMK03328 简化版方框图


Texas Instruments

© Copyright 1995-2025 Texas Instruments Incorporated. All rights reserved.
Submit documentation feedback | IMPORTANT NOTICE | Trademarks | Privacy policy | Cookie policy | Terms of use | Terms of sale
