DATA SHEET

bq2419x 具有窄范围 VDC 电源路径管理和 USB OTG 的 I2C 控制 4.5A 单节 USB/适配器充电器 4.5A 单节 USB/适配器充电器

本资源的原文使用英文撰写。 为方便起见,TI 提供了译文;由于翻译过程中可能使用了自动化工具,TI 不保证译文的准确性。 为确认准确性,请务必访问 ti.com 参考最新的英文版本(控制文档)。

1 特性

  • 高效 4.5A 开关模式充电器
    • 2A 充电电流下的充电效率达 92%;4A 充电电流下的充电效率达 90%
    • 通过电池路径阻抗补偿缩短充电时间
  • 兼容 MaxLife 技术,与 bq27531 搭配使用时可实现快速充电
  • 借助 12mΩ 电池放电金属氧化物半导体场效应晶体管 (MOSFET) 实现最高电池放电效率,放电电流高达 9A
  • 单输入 USB 兼容/适配器充电器
    • 与 USB 电池充电器技术规格 1.2 兼容的 USB 主机或充电端口 D+/D- 检测
    • 输入电压和电流限制支持 USB 2.0 和 USB 3.0
    • 输入电流限值:100mA、150mA、500mA、900mA、1.2A、1.5A、2A 和 3A
  • 输入工作电压范围:3.9V 至 17V
    • 通过输入电压动态电源管理 (DPM) 调节功能支持所有类型的适配器
  • USB OTG 5V/1.3A 同步升压转换器操作
    • 5V/1A 条件下的升压效率达 93%
  • 窄 VDC (NVDC) 电源路径管理
    • 与无电池或深度放电电池工作时可瞬时接通
    • 电池管理模式中的理想二极管运行
  • 薄型电感的开关频率为 1.5MHz
  • 具有或不具有主机管理的自主电池充电
    • 电池充电使能
    • 电池充电预调节
    • 充电终止和再充电
  • 高精度(0°C 至 125°C)
    • 充电电压调节范围为 ±0.5%
    • 充电电流调节范围为 ±7%
    • 输入电流调节范围为 ±7.5%
    • 升压模式下输出调节范围 ±2%
  • 高集成
    • 电源路径管理
    • 同步开关 MOSFET
    • 集成电流感测
    • 阴极负载二极管
    • 内部环路补偿
  • 安全性
    • 电池温度感测和充电安全定时器
    • 热调节和热关断
    • 输入系统过压保护
    • MOSFET 过流保护
  • 针对 LED 或主机处理器的充电状态输出
  • 低电池泄漏电流并支持关闭模式
  • 4.00mm x 4.00mm 紧凑型超薄四方扁平无引线 (VQFN)-24 封装

2 应用

  • 平板电脑和智能手机
  • 便携式音频扬声器
  • 便携式媒体播放器
  • 互联网器件

3 说明

bq24190、bq24192 和 bq24192I 是高度集成的开关模式电池管理和系统电源路径管理器件,适用于各类、平板电脑和其他便携式设备的单节锂离子和锂聚合物电池。

器件信息(1)

产品型号 封装 封装尺寸(标称值)
bq24190 VQFN (24) 4.00mm x 4.00mm
bq24192
bq24192I
  1. 如需了解所有可用封装,请见数据表末尾的可订购产品附录。
bq24190 bq24192 bq24192I Bq24190_with_D_D_Detection_charging_from_USB_SDP_DCP_SLUSAW5A.gif

4 修订历史记录

Changes from A Revision (October 2012) to B Revision

  • 已统一 整篇数据表 中的封装说明Go
  • Added ESD 额定值,特性 描述,器件功能模式,应用和实施,电源相关建议,布局,器件和文档支持以及机械、封装和可订购信息。Go
  • Added 特性:兼容 MaxLife 技术,与 bq27531 搭配使用时可实现快速充电Go
  • Changed VSLEEPZ, VBAT_DPL_HY, VBATGD , ICHG_20pct, VSHORT, IADPT_DPM, KILIM, VBTST_REFRESH in Electrical CharacteristicsGo
  • Added –40°C to 85° to IBAT Test ConditionGo
  • Added REG00[6:3] = 0110 (4.36 V) or 1011 (4.76 V) to VINDPM_REG_ACC Test ConditionsGo
  • Added Typical input current of 1.5 A based on KLIM to IADPT_DPM Test ConditionsGo
  • Added a MIN value of 435 to KILIMGo
  • Deleted TJunction_REG MIN and MAXGo
  • Added rising to VHTF parameter Go
  • Deleted VREGN, VVBUS = 5 V, IREGN = 20 mA MAX valueGo
  • Changed Functional Block DiagramGo
  • Changed Charging Current in Table 4Go
  • Changed REG09[5:4] to REG08[5:4] in Charging Termination sectionGo
  • Added or when FORCE_20PCT (REG02[0]) bit is set, to Charging Safety Timer descriptionGo
  • Added last paragraph to Charging Safety Timer descriptionGo
  • Added twice to Host Mode and Default Mode descriptionGo
  • Changed REG05[5:4]=11 to REG05[5:4]=00 in Host Mode and Default Mode descriptionGo
  • Changed Charge Current Control Register REG02 Bit 0 descriptionGo
  • Changed Charge Current Control Register REG02 Bit 0 noteGo
  • Changed REG05 Bit 0 from JEITA ISET (0°C-10°C) to ReservedGo
  • Changed REG07 Bit 4 from JEITA_VSET (45°C to 60°C) to ReservedGo
  • Changed BOOT to BTST in Figure 38Go
  • Changed BOOT to BTST in Figure 39Go
  • Changed bq24193 to bq24192 in Figure 42Go

5 说明 (续)

它的低阻抗电源路径对开关模式运行效率进行了优化、减少了电池充电时间并延长了放电阶段的电池寿命。具有充电和系统设置的 I2C 串行接口使得此器件成为一个真正地灵活解决方案。

此器件支持宽范围的输入源,其中包括标准 USB 主机端口,USB 充电端口和高功率 DC 适配器。为了设定默认输入电流限值,bq24190 根据 USB 电池充电规范 1.2 检测输入源,而 bq24192 和 bq24192I 从系统检测电路(如 USB PHY 器件)中获取结果。bq24190、192 和 192I 符合 USB 2.0 和 USB 3.0 电源规范,具有输入电流和电压调节功能。同时,bq24190、bq24192 和 bq24192I 具有高达 1.3A 的限流能力,能够为 VBUS 提供 5V 电压,符合 USB On-the-Go (OTG) 运行功率额定值规范。

电源路径管理将系统电压调节为稍稍高于电池电压,但是又不会下降到低于 3.5V 最小系统电压(可编程)。借助于这个特性,即使在电池电量完全耗尽或者电池被拆除时,系统也能保持运行。当达到输入电流限值或电压限值时,电源路径管理自动将充电电流减少为 0。随着系统负载持续增加,电源路径在满足系统电源需求之前将电池放电。这个补充模式运行防止输入源过载。

此器件在无需软件控制情况下启动并完成一个充电周期。它自动检测电池电压并通过三个阶段为电池充电:预充电、恒定电流和恒定电压。在充电周期的末尾,当充电电流低于在恒定电压阶段中预设定的限值时,充电器自动终止。当整个电池下降到低于再充电阈值时,充电器将自动启动另外一个充电周期。

bq24190、bq24192 和 bq24192I 提供针对电池充电和系统运行的多种安全 特性, 其中包括两组负温度系数热敏电阻监视、充电安全定时器和过压/过流保护。当结温超过 120°C(可设定)时,热调节减少充电电流。

STAT 输出报告充电状态和任何故障条件。bq24192 和 bq24192I 中的 PG 输出指示电源是否正常。 当故障发生时,INT 会立即通知主机。

bq24190、bq24192 和 bq24192I 采用 24 引脚、4.00mm x 4.00mm2 超薄型四方扁平无引线 (VQFN) 封装。

6 Device Comparison Table

bq24190 bq24192 bq24192I
I2C Address 6BH 6BH 6BH
USB Detection D+/D– PSEL PSEL
Default VINDPM 4.36 V 4.36 V 4.44 V
Default Battery Voltage 4.208 V 4.208 V 4.112 V
Default Charge Current 2.048 A 2.048 A 1.024 A
Default Adapter Current Limit 1.5 A 3 A 1.5 A
Maximum Pre-Charge Current 2.048 A 2.048 A 640 mA
Charging Temperature Profile Cold/Hot
2 TS pins
Cold/Hot
2 TS pins
Cold/Hot
2 TS pins
Status Output STAT STAT, PG STAT, PG
STAT During Fault Blinking at 1 Hz Blinking at1 Hz 10 k to ground

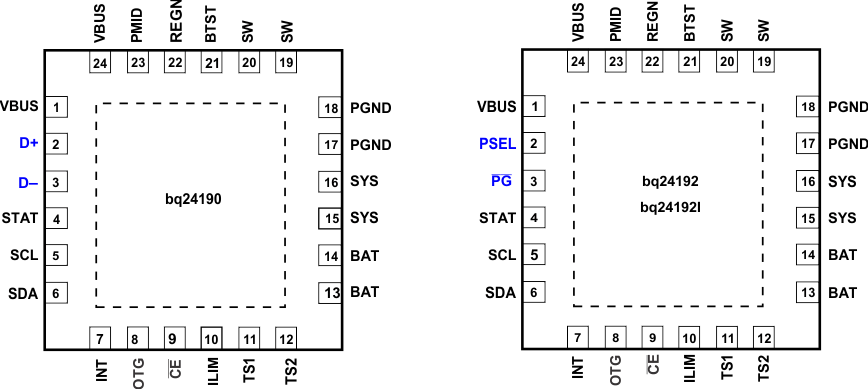

7 Pin Configuration and Functions

RGE Package
24-Pin VQFN With Exposed Thermal Pad
(Top View)
bq24190 bq24192 bq24192I Pinout1_SLUSAW5.gif
Blue pins indicate difference in pin names/functionality between devices.

Pin Functions

PIN NUMBER TYPE DESCRIPTION
bq24190 bq24192
bq24192I
VBUS VBUS 1,24 P Charger Input Voltage. The internal n-channel reverse block MOSFET (RBFET) is connected between VBUS and PMID with VBUS on source. Place a 1-µF ceramic capacitor from VBUS to PGND and place it as close as possible to IC. (Refer to Application Information Section for details)
D+ – 2 I
Analog
Positive line of the USB data line pair. D+/D– based USB host/charging port detection. The detection includes data contact detection (DCD) and primary detection in bc1.2.
– PSEL 2 I
Digital
Power source selection input. High indicates a USB host source and Low indicates an adapter source.
D– – 3 I
Analog
Negative line of the USB data line pair. D+/D– based USB host/charging port detection. The detection includes data contact detection (DCD) and primary detection in bc1.2.
– PG 3 O
Digital
Open drain active low power good indicator. Connect to the pull up rail via 10-kΩ resistor. LOW indicates a good input source if the input voltage is between UVLO and ACOV, above SLEEP mode threshold, and current limit is above 30 mA.
STAT STAT 4 O
Digital
Open drain charge status output to indicate various charger operation. Connect to the pull up rail via 10-kΩ. LOW indicates charge in progress. HIGH indicates charge complete or charge disabled. When any fault condition occurs, STAT pin in bq24190, bq24192 blinks at 1 Hz, and STAT pin in bq24192I has a 10-kΩ resistor to ground.
SCL SCL 5 I
Digital
I2C Interface clock. Connect SCL to the logic rail through a 10-kΩ resistor.
SDA SDA 6 I/O
Digital
I2C Interface data. Connect SDA to the logic rail through a 10-kΩ resistor.
INT INT 7 O
Digital
Open-drain Interrupt Output. Connect the INT to a logic rail via 10-kΩ resistor. The INT pin sends active low, 256-us pulse to host to report charger device status and fault.
OTG OTG 8 I
Digital
USB current limit selection pin during buck mode, and active high enable pin during boost mode.
In buck mode with USB host (PSEL=High), when OTG = High, IIN limit = 500 mA and when OTG = Low, IIN limit = 100 mA.
The boost mode is activated when the REG01[5:4] = 10 and OTG pin is High.
CE CE 9 I
Digital
Active low Charge Enable pin. Battery charging is enabled when REG01[5:4] = 01 and CE pin = Low. CE pin must be pulled high or low.
ILIM ILIM 10 I
Analog
ILIM pin sets the maximum input current limit by regulating the ILIM voltage at 1 V. A resistor is connected from ILIM pin to ground to set the maximum limit as IINMAX = (1V/RILIM) × 530. The actual input current limit is the lower one set by ILIM and by I2C REG00[2:0]. The minimum input current programmed on ILIM pin is 500 mA.
TS1 TS1 11 I
Analog
Temperature qualification voltage input #1. Connect a negative temperature coefficient thermistor. Program temperature window with a resistor divider from REGN to TS1 to GND. Charge suspends when either TS pin is out of range. Recommend 103AT-2 thermistor.
TS2 TS2 12 I
Analog
Temperature qualification voltage input #2. Connect a negative temperature coefficient thermistor. Program temperature window with a resistor divider from REGN to TS2 to GND. Charge suspends when either TS pin is out of range. Recommend 103AT-2 thermistor.
BAT BAT 13,14 P Battery connection point to the positive terminal of the battery pack. The internal BATFET is connected between BAT and SYS. Connect a 10 µF closely to the BAT pin.
SYS SYS 15,16 P System connection point. The internal BATFET is connected between BAT and SYS. When the battery falls below the minimum system voltage, switch-mode converter keeps SYS above the minimum system voltage. (Refer to Application Information Section for inductor and capacitor selection.)
PGND PGND 17,18 P Power ground connection for high-current power converter node. Internally, PGND is connected to the source of the n-channel LSFET. On PCB layout, connect directly to ground connection of input and output capacitors of the charger. A single point connection is recommended between power PGND and the analog GND near the IC PGND pin.
SW SW 19,20 O
Analog
Switching node connecting to output inductor. Internally SW is connected to the source of the n-channel HSFET and the drain of the n-channel LSFET. Connect the 0.047-µF bootstrap capacitor from SW to BTST.
BTST BTST 21 P PWM high side driver positive supply. Internally, the BTST is connected to the anode of the boost-strap diode. Connect the 0.047-µF bootstrap capacitor from SW to BTST.
REGN REGN 22 P PWM low side driver positive supply output. Internally, REGN is connected to the cathode of the boost-strap diode. Connect a 4.7-µF (10-V rating) ceramic capacitor from REGN to analog GND. The capacitor should be placed close to the IC. REGN also serves as bias rail of TS1 and TS2 pins.
PMID PMID 23 O
Analog
Connected to the drain of the reverse blocking MOSFET and the drain of HSFET. Given the total input capacitance, connect a 1-µF capacitor on VBUS to PGND, and the rest all on PMID to PGND. (Refer to Application Information Section for details)
Thermal Pad – – P Exposed pad beneath the IC for heat dissipation. Always solder thermal pad to the board, and have vias on the thermal pad plane star-connecting to PGND and ground plane for high-current power converter.
