This reference design provides power for automotive advanced driver assistance systems (ADAS), infotainment, and cluster applications. Operation is over the full automotive range including battery voltage surges to 32 V and dips to 6 V due to cold cranking. The peak conversion efficiency of 94% to 96% in the 10 V_IN to 18 V_IN range is shown. The output voltage undershoot and overshoot are 2% for 30-A step and dump. This test report includes operational data over the full input range and includes Bode plots to verify stability with good margins, internal waveforms, and thermal images.

• High current for advanced driver assistance systems (ADAS), infotainment, and cluster applications
• Operation over the full automotive battery range including cold cranking and surges
• Peak conversion efficiency of 94% to 96% in the 10- to 18-V_IN range
• LM25143-Q1 provides two-phase control and gate drive in a single IC
• Output voltage undershoot and overshoot 2% for 30-A step and dump

• Driver monitoring
• Surround view system ECU
• Radar ECU
• ADAS domain controller
• Drive assist ECU
• Hybrid instrument cluster
• Digital cockpit processing unit

Top Photo

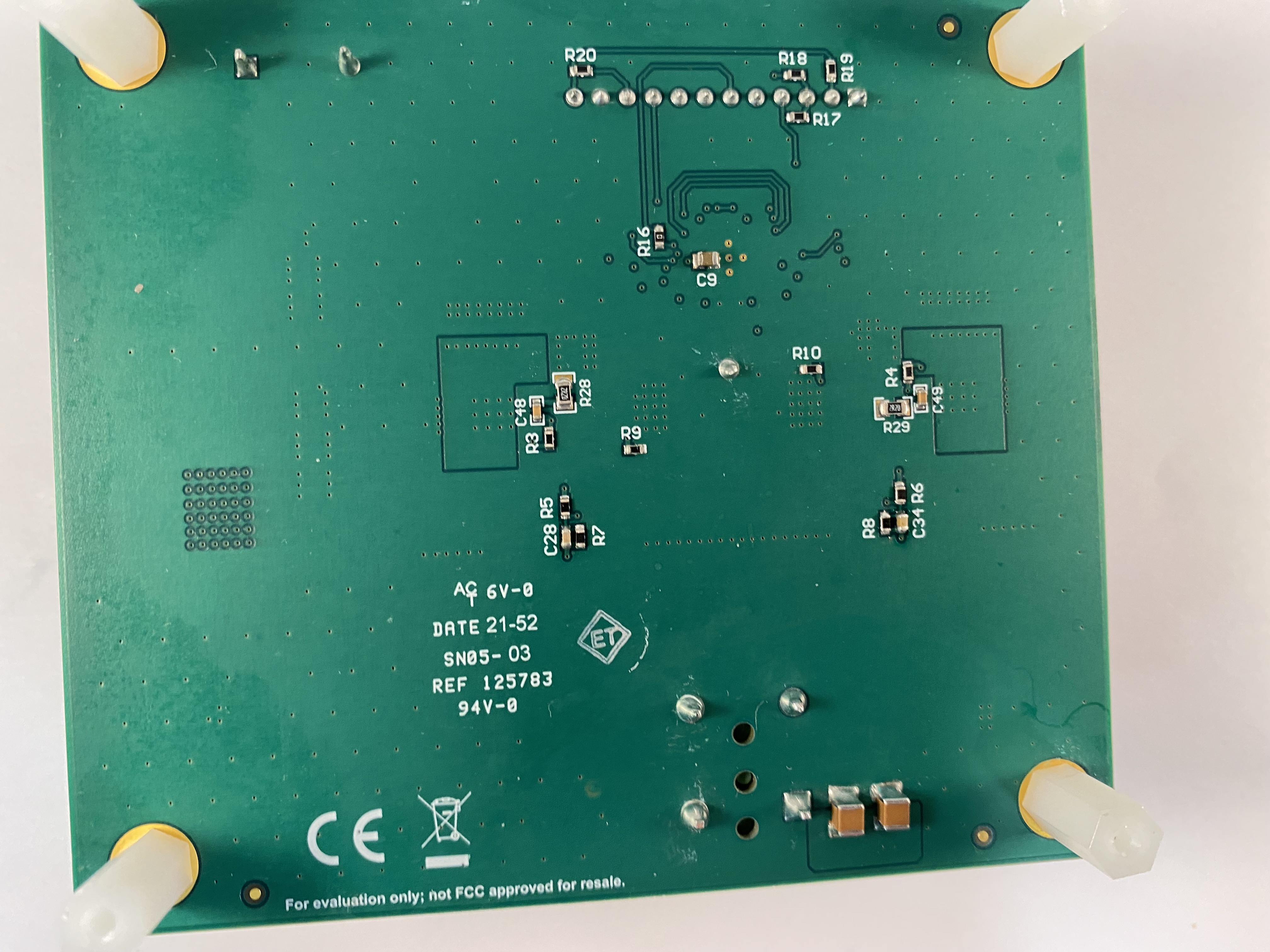

Bottom Photo

This section provides the testing guide used in the detailed testing of the 3.3-V, 60-A power supply.
