TEST REPORT

Ultra-Wide Input, 10-W Isolated Flyback Reference Design

Description

This reference design is a wide-VIN, low-power flyback design that can take dual inputs from 19 VDC to 60 VDC and 85 VAC to 275 VAC. It is designed to provide 24 V at 420 mA to the output load.

Features

  • Ultra-wide input
  • Small form factor
  • Excellent regulation over wide input

Applications

  • AC charging (pile) station
GUID-20220407-SS0I-RTVR-TQGB-VW8BXGCMJHVB-low.jpgBoard Photo (Top)

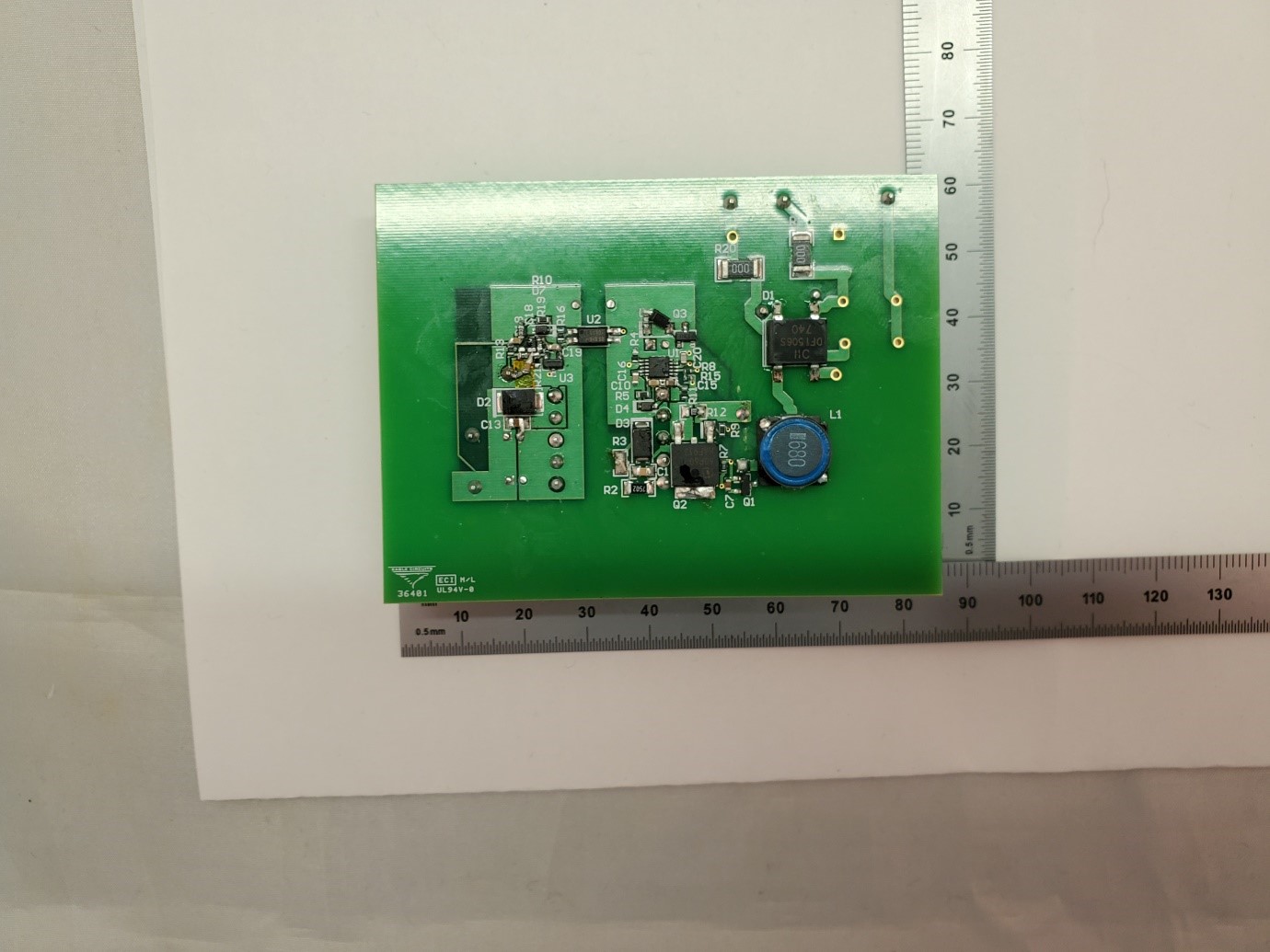

GUID-20220407-SS0I-RXNN-ZKZK-HS2QF0RF1CCL-low.jpgBoard Photo (Bottom)

1 Test Prerequisites
