DATA SHEET

TPS7B4250-Q1 50-mA 40-V Voltage-Tracking LDO With 5-mV Tracking Tolerance

1 Features

  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results
    • Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
    • Device HBM ESD Classification Level 3A
    • Device CDM ESD Classification Level C6
  • –20-V to 45-V Wide, Maximum Input Voltage Range
  • Output Current, 50 mA
  • Very-Low Output-Tracking Tolerance,
    5 mV (max)
  • 150-mV Low Dropout Voltage When
    IOUT = 10 mA
  • Combined Reference and Enable Input
  • 40-µA Low Quiescent Current at Light Load
  • Extreme, Wide ESR Range.
    • Stable with 1-µF to 50-µF Ceramic Output Capacitor, ESR 1 mΩ to 20 Ω
  • Reverse Polarity Protection
  • Overtemperature Protection
  • Output Short-Circuit Proof to Ground and Supply
  • SOT-23 Package

2 Applications

  • Off-board Sensor Supply
  • High-Precision Voltage Tracking

3 Description

The TPS7B4250-Q1 device is a monolithic, integrated low-dropout voltage tracker. The device is available in a SOT-23 package. The TPS7B4250-Q1 device is designed to supply off-board sensors in an automotive environment. The IC has integrated protection for overload, over temperature, reverse polarity, and output short-circuit to the battery and ground.

A reference voltage applied at the adjust-input pin, ADJ, regulates supply voltages up to VIN = 45 V with high accuracy and loads up to 50 mA.

By setting the adjust/enable input pin, ADJ/EN, to low, the TPS7B4250-Q1 device switches to standby mode which reduces the quiescent current to the minimum value.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
TPS7B4250-Q1 SOT-23 (5) 2.90 mm × 1.60 mm
  1. For all available packages, see the orderable addendum at the end of the data sheet.


Output Equal to Reference Voltage

TPS7B4250-Q1 alt_typ_slvsca0.gif

Output Lower than Reference Voltage

TPS7B4250-Q1 alt_lower_slvsca0.gif

4 Revision History

Changes from B Revision (July 2015) to C Revision

  • Changed the title of the data sheet Go
  • Added the Device Support and Receiving Notification of Documentation Updates sectionsGo

Changes from A Revision (November 2013) to B Revision

  • Changed HBM ESD Classification level from 2 to 3A Go
  • Changed CDM ESD Classification level from C4 to C6Go
  • Added Pin Configuration and Functions section, ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information sectionGo
  • Deleted the transient current and 107-pF capacitor for HBM table notes from the ESD Ratings table Go
  • Changed input voltage symbol from VIN to VI for the ΔVO(ΔVI) and Vdropout parameters and the output voltage symbol from VOUT to VO for the IL parameter in the Electrical Characteristics tableGo
  • Added IO and CO to the PSRR test condition in the Electrical Characteristics table Go
  • Changed the max value for Vdropout where IO = 10 mA from 250 to 265 in the Electrical Characteristics tableGo
  • Deleted the VADJ = 5 V condition for the Ground current vs Temperature graph and changed the legendGo
  • Changed the y axis units from mV to mA in the Current-limit vs Temperature graph Go
  • Added the VADJ condition statement to the Input Voltage vs Output Voltage graph and changed the y-axis from IO to VOGo
  • Changed the title of Figure 8 from Input Voltage vs Output Voltage to Reference Voltage vs Output Voltage, and changed the y-axis from IO to VO. Also added the VI condition statement to the graphGo
  • Changed the second y axis from IO to VI and removed the units in the Line TransientGo
  • Deleted the units from the second y axis in the Load TransientGo
  • Added the VADJ condition statement to the Power-supply Rejection Ratio vs Frequency graphGo
  • Added resistor-divider values to the Tracking LDO With Enable Circuit figureGo

Changes from * Revision (October 2013) to A Revision

  • Changed CDM ESD Classification level from C3B to C4 throughout documentGo
  • Changed VOUT min value from –0.3 to –1 in the Absolute Maximum Ratings tableGo
  • Added transient current flow to ESD rating in the Absolute Maximum Ratings tableGo
  • Changed HBM absolute maximum rating from 2 kV to 4 kVGo
  • Deleted relevant ESR value from Recommended Operating Conditions tableGo
  • Added grater-than-or-equal-to (≥) value to VADJ/EN in condition statement of the Electrical Characteristics table Go
  • Added VADJ = 1.5 V to both test conditions for VUVLO parameter in the Electrical Characteristics tableGo
  • Changed max value for load regulation parameter from 3 to 4 in the Electrical Characteristics tableGo
  • Changed max value for the current consumption test condition where IO = 0.5 mA from 80 to 90 in the Electrical Characteristics tableGo
  • Added the Detailed Description sectionGo
  • Added the TPS7B4250 block diagramGo

5 Pin Configuration and Functions

DBV Package
5-Pin SOT-23
Top View

Pin Functions

PIN TYPE DESCRIPTION
NAME NO.
ADJ/EN 1 I This pin connects to the reference voltage. A low signal disables the IC and a high signal enables the device. Connected the voltage reference directly or with a voltage divider for lower output voltages. To compensate for line influences, TI recommends to place a capacitor close to the IC pins.
GND 2 G Internally connected to pin 5
GND 5 G Internally connected to pin 2
VIN 3 I This pin is the device supply. To compensate for line influences, TI recommends to place a capacitor close to the IC pins.
VOUT 4 O VOUT is an external capacitor that is required between VOUT and GND with respect to the capacitance and ESR requirements given in the Recommended Operating Conditions.

6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Input voltage, unregulated input, VIN(2)(3) –20 45 V
Output voltage, regulated output, VOUT –1 22 V
Adjust input and enable input voltage, ADJ/EN(2)(3) –0.3 22 V
ADJ Voltage minus input voltage (ADJ–VIN), VIN > 0 V 7 V
Operating junction temperature, TJ –40 150 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to ground, GND.
(3) Absolute maximum voltage.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per AEC Q100-002(1) ±4000 V
Charged-device model (CDM), per AEC Q100-011 ±1000
(1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)(2)
MIN MAX UNIT
VIN Unregulated input 4 40 V
VOUT regulated output 1.5 18 V
ADJ/EN Adjust input and enable input voltage 1.5 18 V
ADJ–VIN ADJ voltage minus input voltage 5 V
COUT Output capacitor requirements(1) 1 50 µF
ESRCOUT Output ESR requirements 0.001 20 Ω
TJ Operating junction temperature –40 150 °C
(1) The minimum output capacitance requirement is applicable for a worst-case capacitance tolerance of 30%.
(2) Within the functional range, the IC operates as described in the circuit description. The electrical characteristics are specified within the conditions given in the related electrical characteristics table.

6.4 Thermal Information

THERMAL METRIC(2)(1) TPS7B4250-Q1 UNIT
DBV (SOT-23)
5 PINS
RθJA Junction-to-ambient thermal resistance 171.7 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 81.1 °C/W
RθJB Junction-to-board thermal resistance 31.7 °C/W
ψJT Junction-to-top characterization parameter 4.5 °C/W
ψJB Junction-to-board characterization parameter 31.2 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance N/A °C/W
(1) The thermal data is based on the JEDEC standard high K profile, JESD 51-7. Two-signal, two-plane, four-layer board with 2-oz. copper. The copper pad is soldered to the thermal land pattern. Also, correct attachment procedure must be incorporated.
(2) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report (SPRA953).

6.5 Electrical Characteristics

VI = 13.5 V, 18 V ≥ VADJ/EN ≥ 1.5 V, TJ = –40ºC to 150ºC unless otherwise stated
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VUVLO VIN undervoltage detection Ramp up VI until the output turns on, VADJ = 1.5 V 3.65 V
Ramp down VI until the output turns off, VADJ = 1.5 V 3
ΔVO Output-voltage tracking accuracy IO = 100 µA to 1 mA, VI = 4 V to 40 V, 1.5 V < VADJ < VI – 0.3 V –4 4 mV
IO = 1 mA to 50 mA, VI = 4 V to 40 V, 1.5 V < VADJ < VI – 1.5 V –5 5
ΔVO(ΔIL) Load regulation steady-state IO = 1 mA to 30 mA 4 mV
ΔVO(ΔVI) Line regulation steady-state IO = 10 mA, VI = 6 V to 40 V 3 mV
PSRR Power-supply ripple rejection Frequency = 100 Hz, Vrip = 0.5 VPP, IO = 5 mA, CO = 2.2 µF 60 dB
Vdropout Dropout voltage, Vdropout = VI – VQ IO = 10 mA, VI ≥ 4 V(1) 150 265 mV
IO = 50 mA, VI ≥ 4 V(1) 550 1000
IL Output-current limitation VO short to GND 100 500 mA
IR Reverse current at VIN VI = 0 V, VO = 20 V, VADJ = 5 V –5 0 µA
IRN1 Reverse current at negative input voltage VI = –20 V, VO = 0 V, VADJ = 5 V –5 0 µA
IRN2 VI = –20 V, VO = 20 V, VADJ = 5 V –5 0
TSD Thermal shutdown temperature TJ increasing because of power dissipation generated by the IC 175 °C
IQ Current consumption VADJ < 0.8 V, TA ≤ 85°C(2) 7.5 15 µA
VADJ < 0.8 V, TA ≤ 125°C 20
IO = 0.5 mA, VADJ = 5 V 40 90
IO = 30 mA, VADJ = 5 V 150 350
IADJ Adjust-input and enable-input current VADJ = 5 V 1 µA
VADJ,low Adjust and enable low signal valid VO = 0 V 0.8 V
VADJ,high Adjust and enable high signal valid |VO – VADJ| < 5 mV 1.5 18 V
(1) Measured when the output voltage VQ has dropped 10 mV from the typical value.
(2) Ensured by design.

6.6 Typical Characteristics

TPS7B4250-Q1 C001_SLVSCA0.png

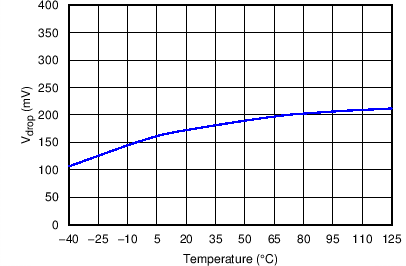

VI = VADJ = 4 V IO = 10 mA
Figure 1. Dropout Voltage vs Temperature
TPS7B4250-Q1 C003_SLVSCA0.png
VI = 13.5 V VADJ = 5 V

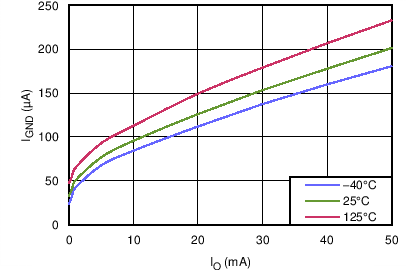

Figure 3. Ground Current vs Output Current
TPS7B4250-Q1 C005_SLVSCA0.png
VI = 13.5 V VADJ = 5 V

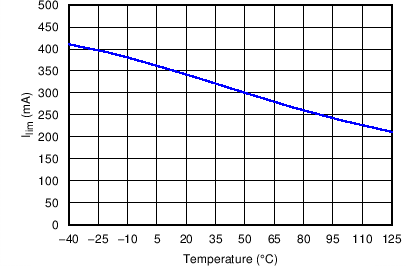

Figure 5. Current-limit vs Temperature
TPS7B4250-Q1 C007_SLVSCA0.png

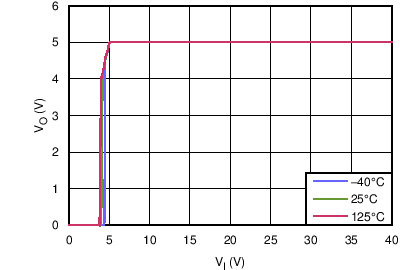

VADJ = 5 V
Figure 7. Input Voltage vs Output Voltage
TPS7B4250-Q1 C009_SLVSCA0.png

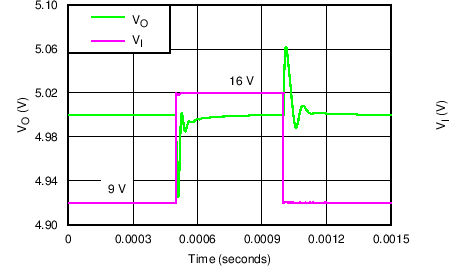

VI = 9 to 16 V 2.2-µF ceramic output capacitor
Figure 9. Line Transient
TPS7B4250-Q1 C011_SLVSCA0.png
VI = 13.5 V CO = 2.2 µF ILOAD = 25 mA
VADJ = 5 V

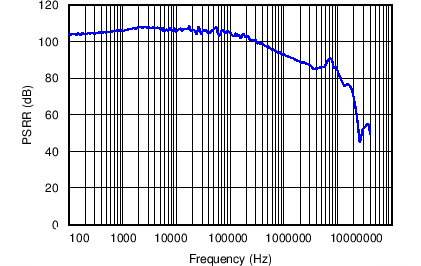

Figure 11. Power-Supply Rejection Ratio vs Frequency
TPS7B4250-Q1 C002_SLVSCA0.png
VI = VADJ = 4 V

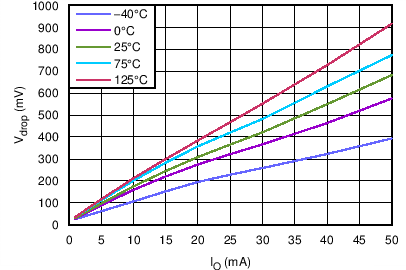

Figure 2. Dropout Voltage vs Output Current
TPS7B4250-Q1 C004_SLVSCA0.png

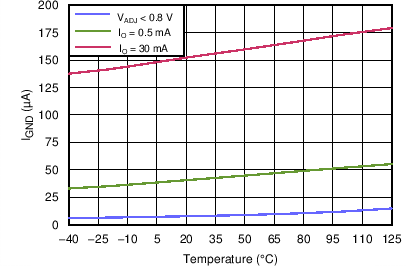

VI = 13.5 V
Figure 4. Ground Current vs Temperature
TPS7B4250-Q1 C006_SLVSCA0.png
VI = 13.5 V VADJ = 5 V IO = 1 mA, 50 mA

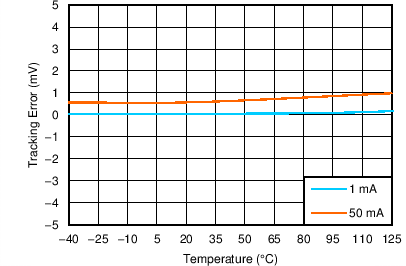

Figure 6. Tracking Error vs Temperature
TPS7B4250-Q1 C008_SLVSCA0.png

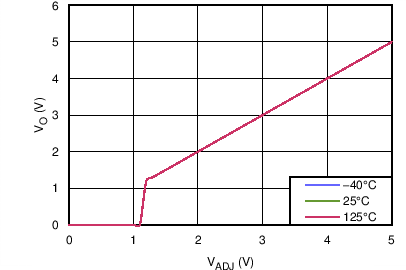

VI = 13.5 V
Figure 8. Reference Voltage vs Output Voltage
TPS7B4250-Q1 C010_SLVSCA0.png

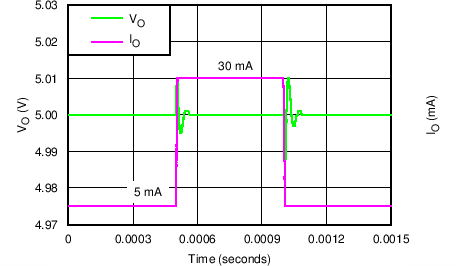

IO = 5 to 30 mA 2.2-µF ceramic output capacitor
Figure 10. Load Transient
TPS7B4250-Q1 C012_SLVSCA0.png

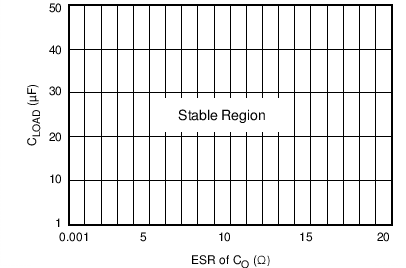

Figure 12. ESR Stability vs Load Capacitance
