DATA SHEET

TPS4021x 4.5-V to 52-V Input Current Mode Boost Controller

1 Features

  • Functional Safety-Capable
    • Documentation available to aid functional safety system design
  • For boost, flyback, SEPIC, LED drive apps
  • Wide input operating voltage: 4.5 V to 52 V
  • Adjustable oscillator frequency
  • Fixed frequency current mode control
  • Internal slope compensation
  • Integrated low-side driver
  • Programmable closed-loop soft start
  • Overcurrent protection
  • External synchronization capable
  • Reference 700 mV (TPS40210), 260 mV (TPS40211)
  • Low current disable function
  • Create a custom design using the TPS4021x with the WEBENCH Power Designer

2 Applications

  • LED lighting
  • Industrial control systems
  • Battery-powered systems

3 Description

The TPS40210 and TPS40211 are wide-input voltage (4.5 V to 52 V), nonsynchronous boost controllers. They are suitable for topologies which require a grounded source N-channel FET including boost, flyback, SEPIC, and various LED Driver applications. The device features include programmable soft start, overcurrent protection with automatic retry, and programmable oscillator frequency. Current mode control provides improved transient response and simplified loop compensation. The main difference between the two parts is the reference voltage to which the error amplifier regulates the FB pin.

Device Information(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
TPS40210 HVSSOP (10) 3.05 mm x 4.98 mm
TPS40211 VSON (10) 3.10 mm x 3.10 mm
(1) For all available packages, see the orderable addendum at the end of the datasheet.

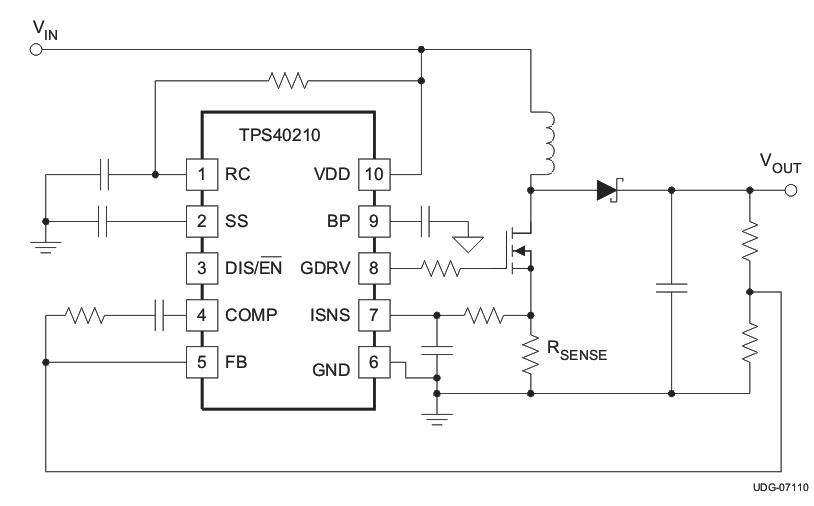

GUID-8741AA7D-EA16-478E-BB37-4397EC0374C7-low.gif Simplified Schematic
