FUNCTIONAL SAFETY FIT RATE, FMD AND PIN-FMA

TCAN1043-Q1 Functional Safety FIT Rate, FMD and Pin FMA

Trademarks

All trademarks are the property of their respective owners.

1 Overview

This document contains information for TCAN1043-Q1 (as well as the TCAN1043G-Q1, TCAN1043H-Q1, and TCAN1043HG-Q1), a controller area network (CAN) transceiver, to aid in a functional safety system design. The TCAN1043-Q1 comes in the SOIC (D) and VSON (DMT) packages. Information provided are:

  • Functional Safety Failure In Time (FIT) rates of the semiconductor component estimated by the application of industry reliability standards
  • Component failure modes and their distribution (FMD) based on the primary function of the device
  • Pin failure mode analysis (Pin FMA)

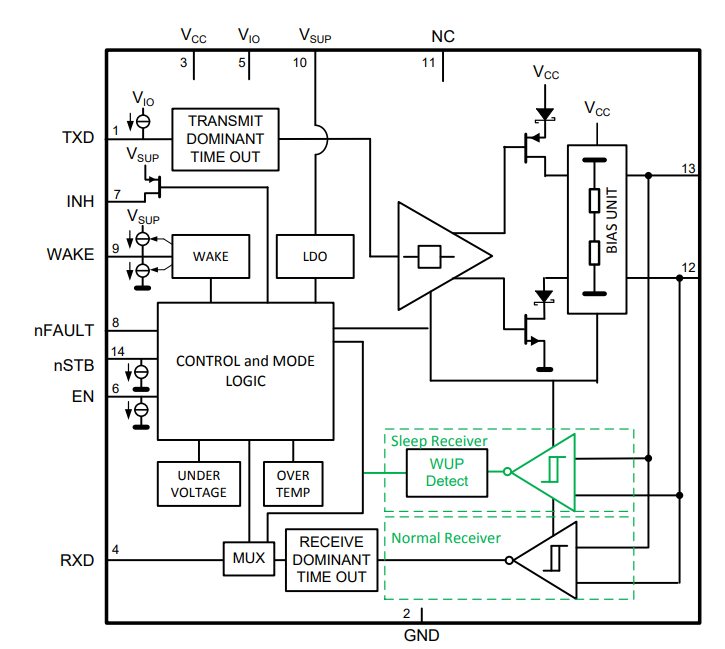

Figure 1-1 shows the device functional block diagram for reference.

GUID-20200901-CA0I-RWJN-THZV-KGZ65XWQFQPR-low.png Figure 1-1 Functional Block Diagram
TCAN1043-Q1 was developed using a quality-managed development process, but was not developed in accordance with the IEC 61508 or ISO 26262 standards.
