Functional Safety Information

OPA2333-Q1
Functional Safety FIT Rate, FMD and Pin FMA

Trademarks

All trademarks are the property of their respective owners.

1 Overview

This document contains information for OPA2333-Q1 (SOIC and VSSOP packages) to aid in a functional safety system design. Information provided are:

  • Functional Safety Failure In Time (FIT) rates of the semiconductor component estimated by the application of industry reliability standards
  • Component failure modes and their distribution (FMD) based on the primary function of the device
  • Pin failure mode analysis (Pin FMA)

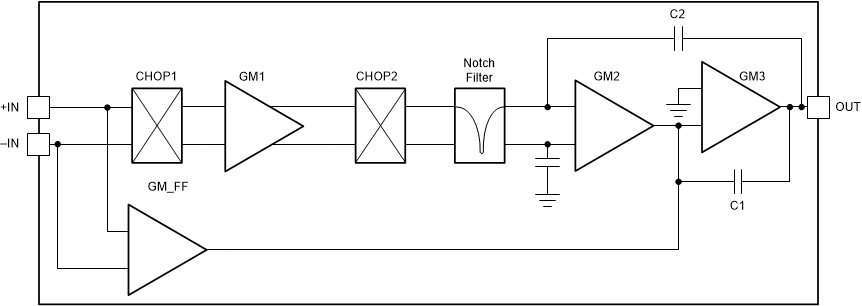

Figure 1-1 shows the device functional block diagram for reference.

GUID-FD9F895D-DBF0-4E43-8DCF-F79DE12CE660-low.gifFigure 1-1 Functional Block Diagram

OPA2333-Q1 was developed using a quality-managed development process, but was not developed in accordance with the IEC 61508 or ISO 26262 standards.
