TMUXBQB-DYYEVM User's Guide

Abstract

This document is the EVM user’s guide for the TMUXBQB-DYYEVM, which provides a quick way to evaluate TI devices that use a 16-pin BQB, DYY or PW package.

Trademarks

All trademarks are the property of their respective owners.

1 Introduction

This user's guide describes the TMUXBQB-DYYEVM evaluation module (EVM) and its intended use. This board allows for the quick prototyping and DC characterization of TI’s line of TMUX products that use 16-pin TSSOP (PW), WQFN (BQB) and SOT-23 THIN (DYY) packages.

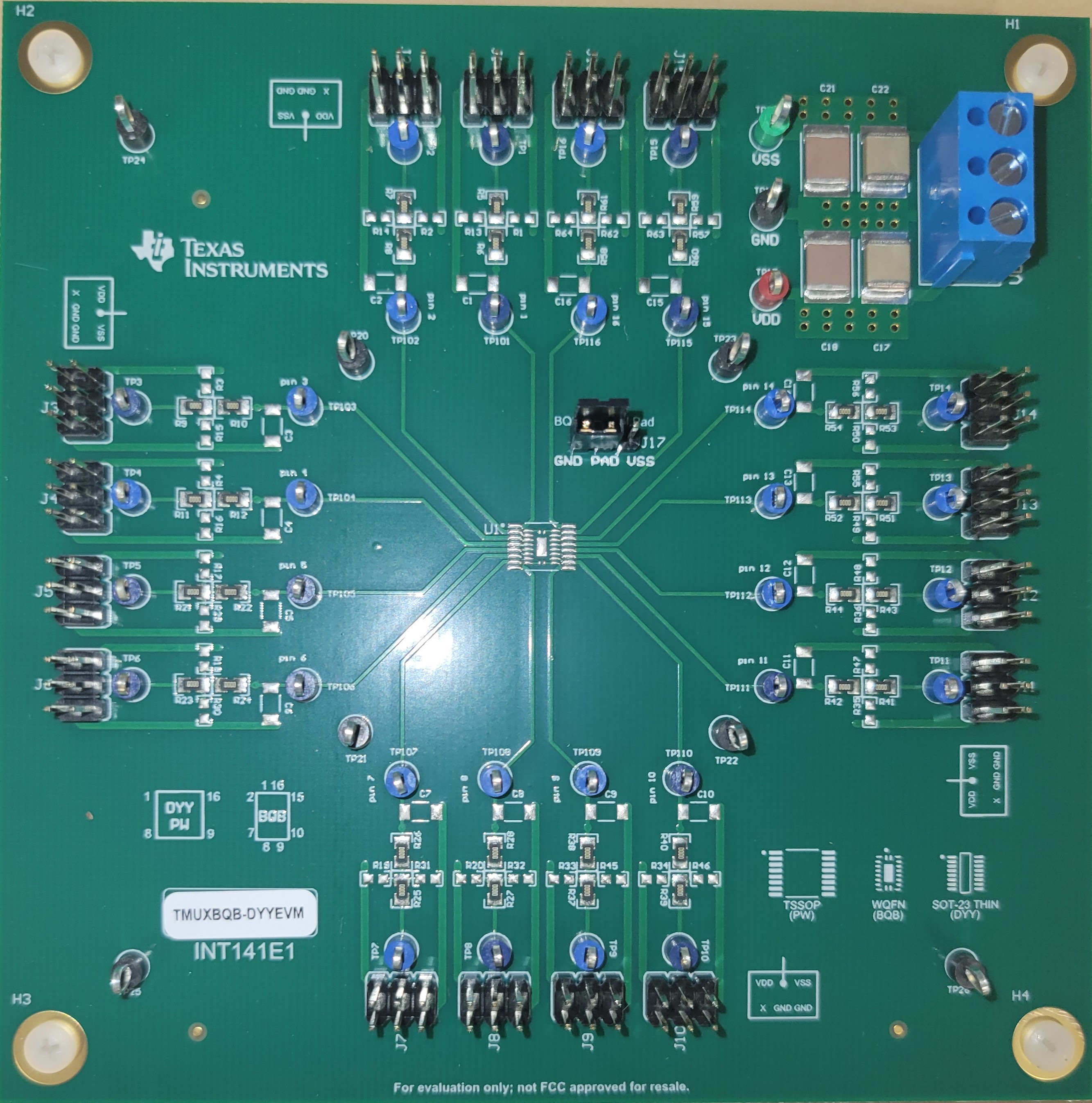

Figure 1-1 TMUXBQB-DYYEVM Top View

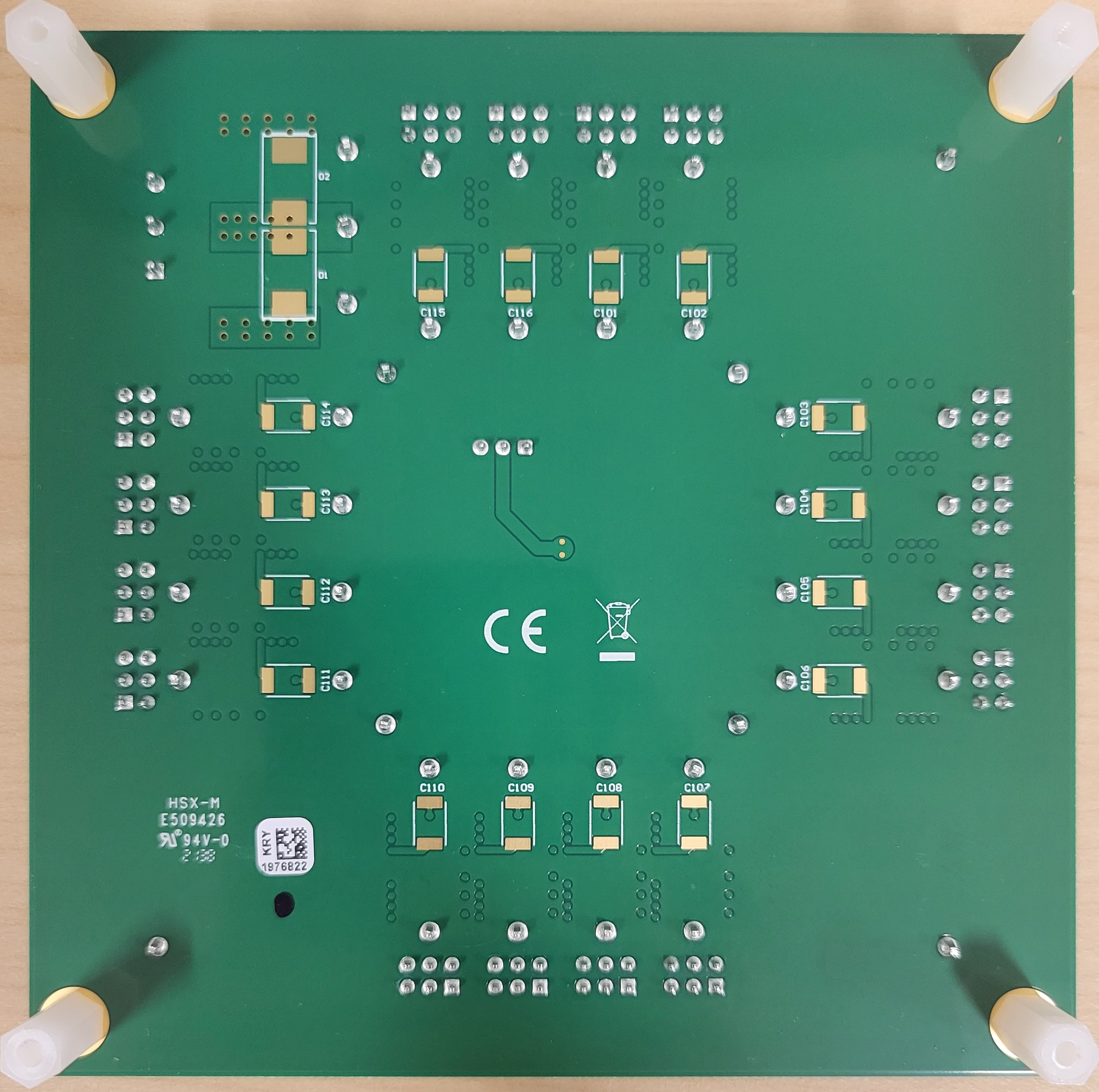

Figure 1-2 TMUXBQB-DYYEVM Bottom View

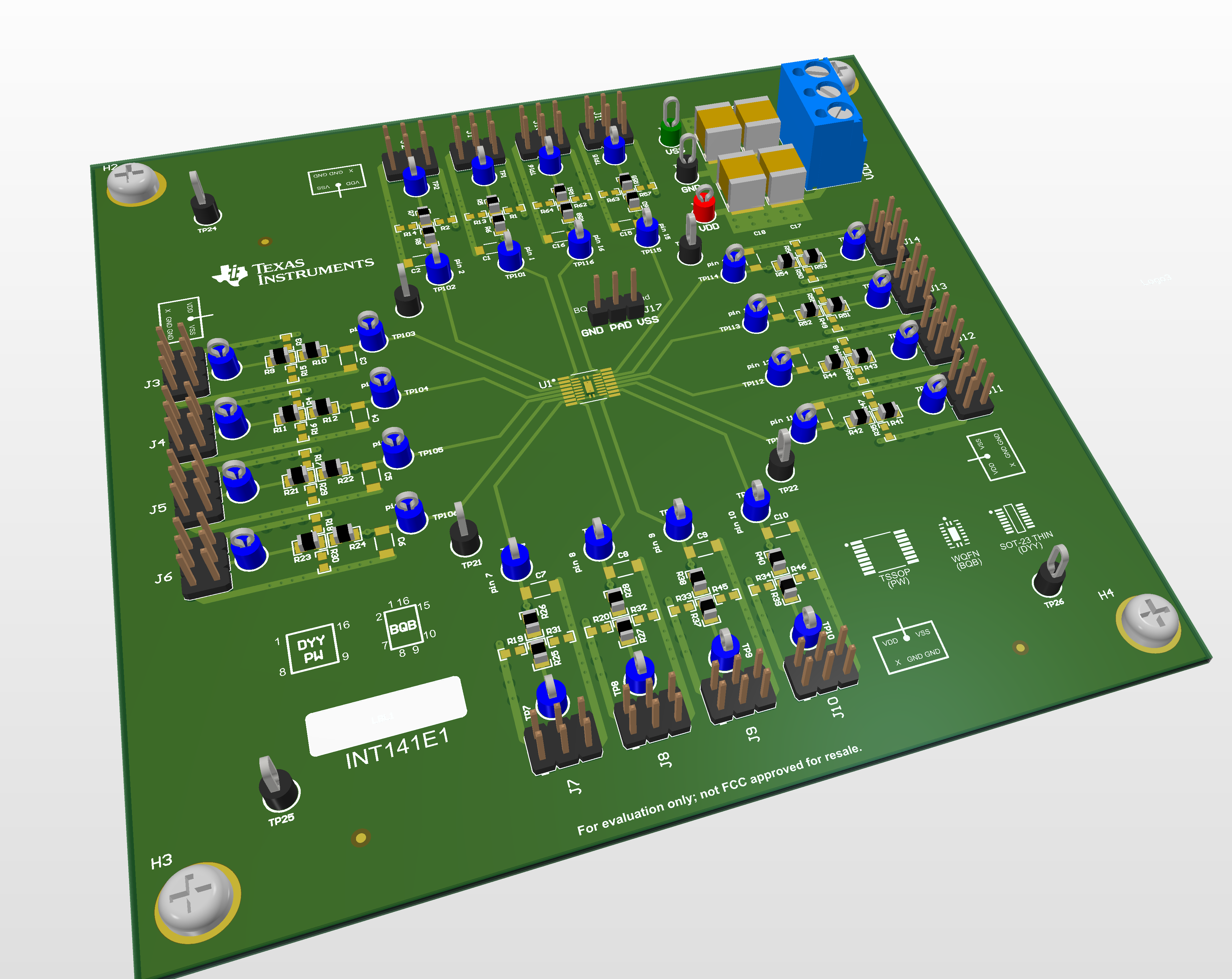

Figure 1-3 TMUXBQB-DYYEVM 3D View

2 Information About Cautions and Warnings

The information in the warning statement is provided for personal protection and the information in the caution statement is provided to protect the equipment from damage. Read each caution and warning statement carefully.

CAUTION: This EVM contains components that can potentially be damaged by electrostatic discharge. Always transport and store the EVM in its supplied ESD bag when not in use. Handle using an antistatic wristband. Operate on an antistatic work surface. For more information on proper handling, see Electrostatic Discharge (ESD).
